Chapter 7 Optional AccessoriesCP2000
7-123

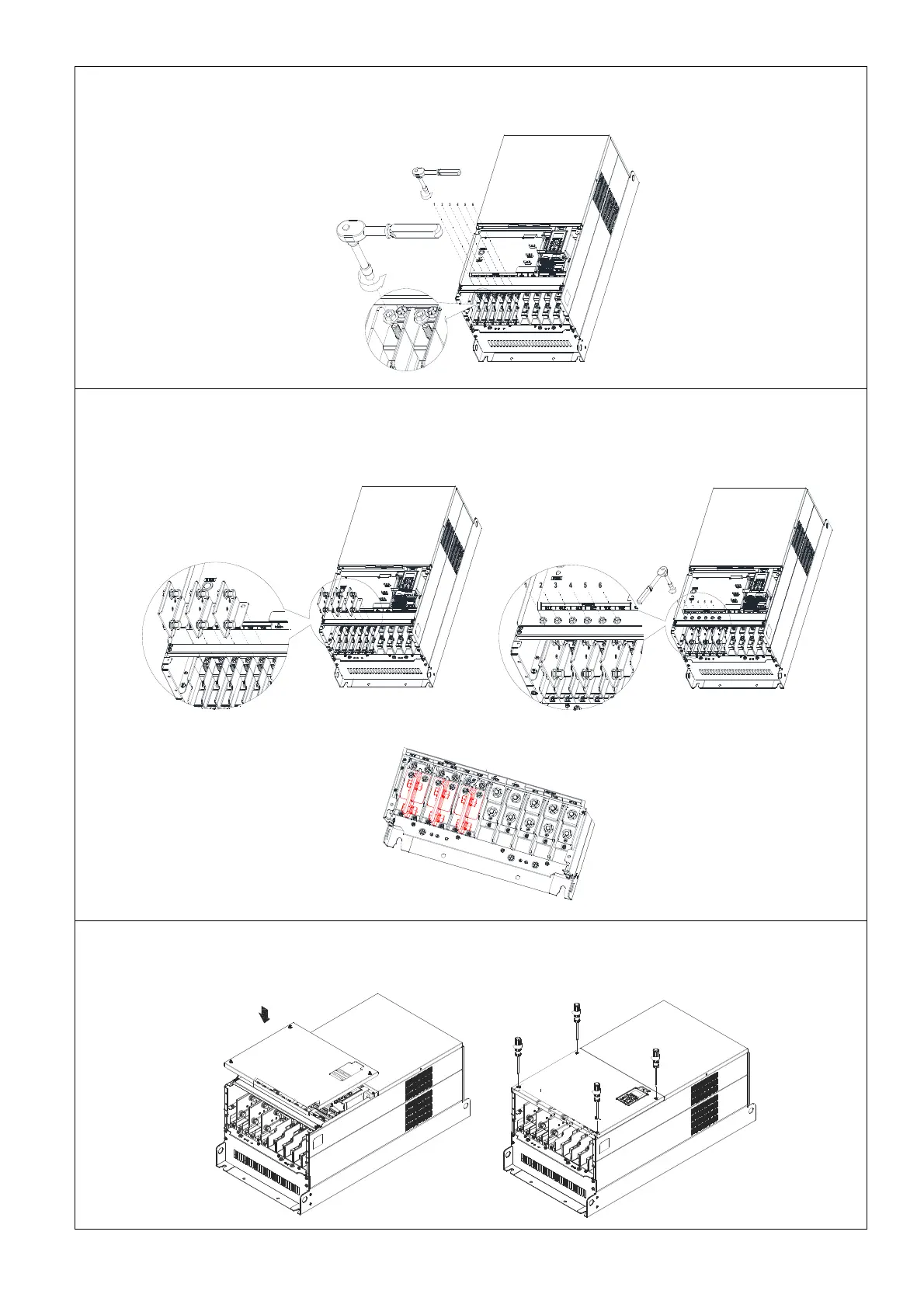

3. Loosen the upper M8 nuts (1–6) with a sleeve wrench (12mm of the sleeve). M8 Torque: 90 kg / [78.1 lb-in] /
[8.8 Nm]
4. Install the 3pcs copper assy., as shown in the following figure 1. Fasten the upper M8 nuts (1–6) with a sleeve
wrench (12 mm of the sleeve), as shown in the figure 2 below.
M8 Torque: 180 kg-cm / [156.2 lb-in] / [17.65 Nm]
5. Put the cover back and fasten the screws as shown in the figure below. Screw Torque: 12–15 kg-cm /
[10.4–13 lb-in] / [1.2–1.5 Nm]
Copper Assy. Installation complete
Figure 1
Figure 2
Figure 3
To Next Page
