Chapter 8 Option CardsCP2000
8-25
8-10-7 Network Connection

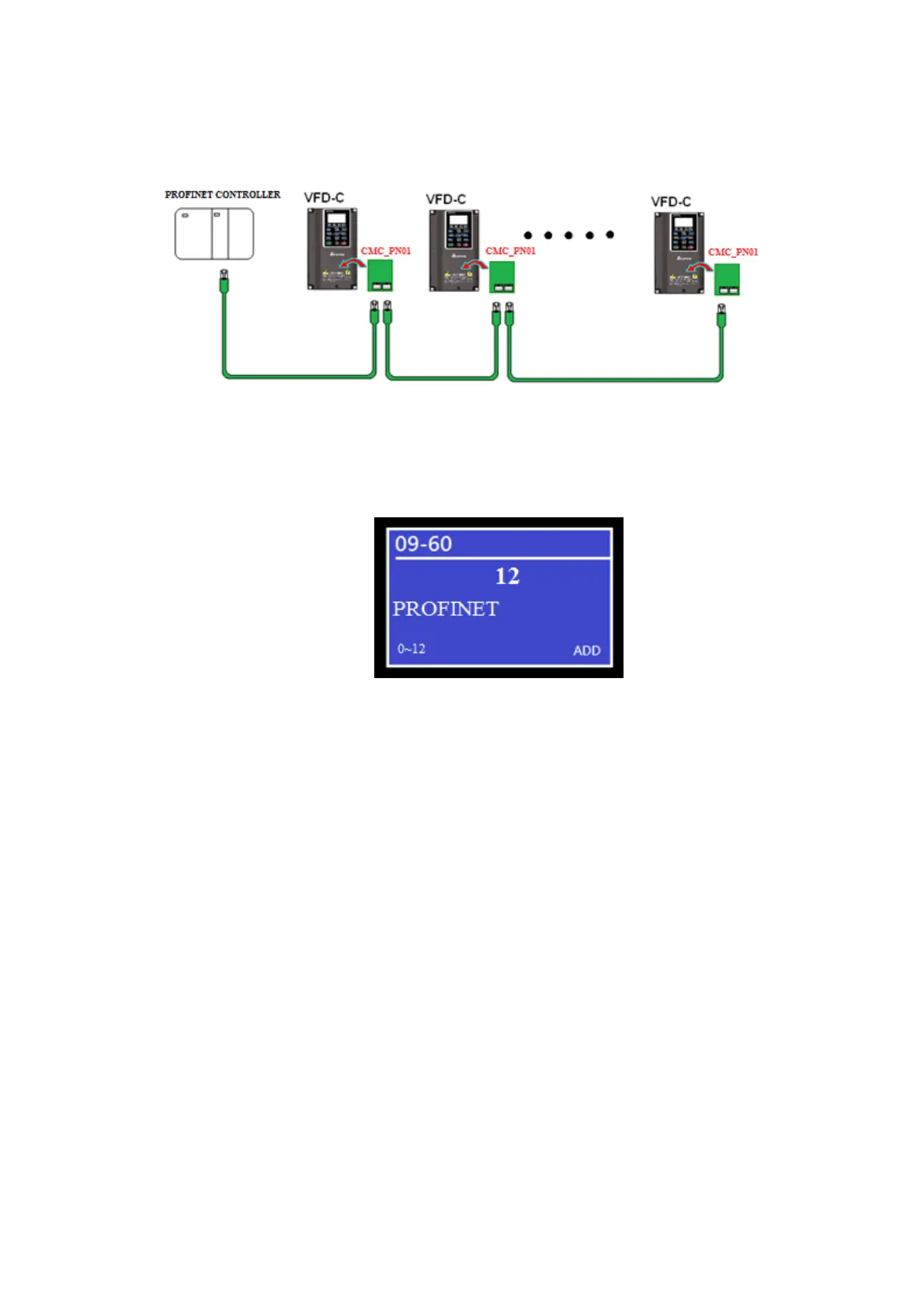

Wiring of CMC-PN01 is as following:
When the hardware is installed and power on, the current set value of Pr.09-60 will be 12, and
shows “PROFINET” on the display.If the above information does not show on the display, please
check the version of VFD-CP2000 and the connection of the card.
