Chapter 3 UnpackingCP2000
3-13

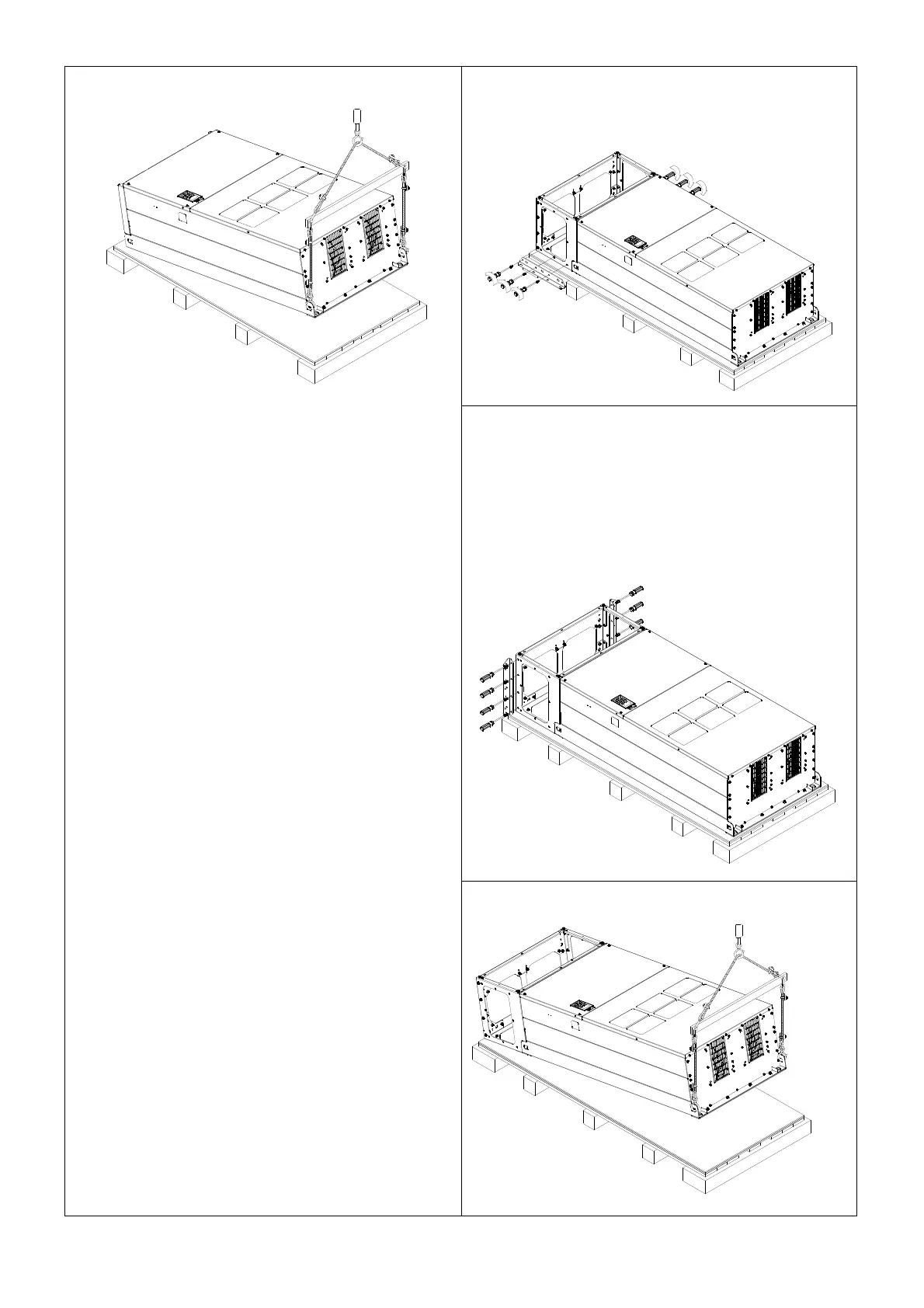

Lift the drive by hooking the lifting hole. It is now
ready for installation.
Loosen the six M6 screws and the iron plates
(see the figure below). You can use the removed
screws and iron plates to fix the drive from
outside.
This description is how to fix the drive from the
outside. You can skip to the next step if it is not
necessary.
Loosen the eight M8 screws, and then use these
eight M8 screws to fix the iron plates (removed at
the last step) to the drive, see the figure below.
Torque: 150–180 kg-cm / [130.20–156.24 lb-in.] /
[14.7–17.6 Nm]
Lift the drive by hooking the lifting hole. It is now
ready for installation.
Figure 3-42 Figure 3-46
Figure 3-47
Figure 3-48
