Chapter 3 UnpackingCP2000
3-24
H2: VFDXXXXCP63A-21

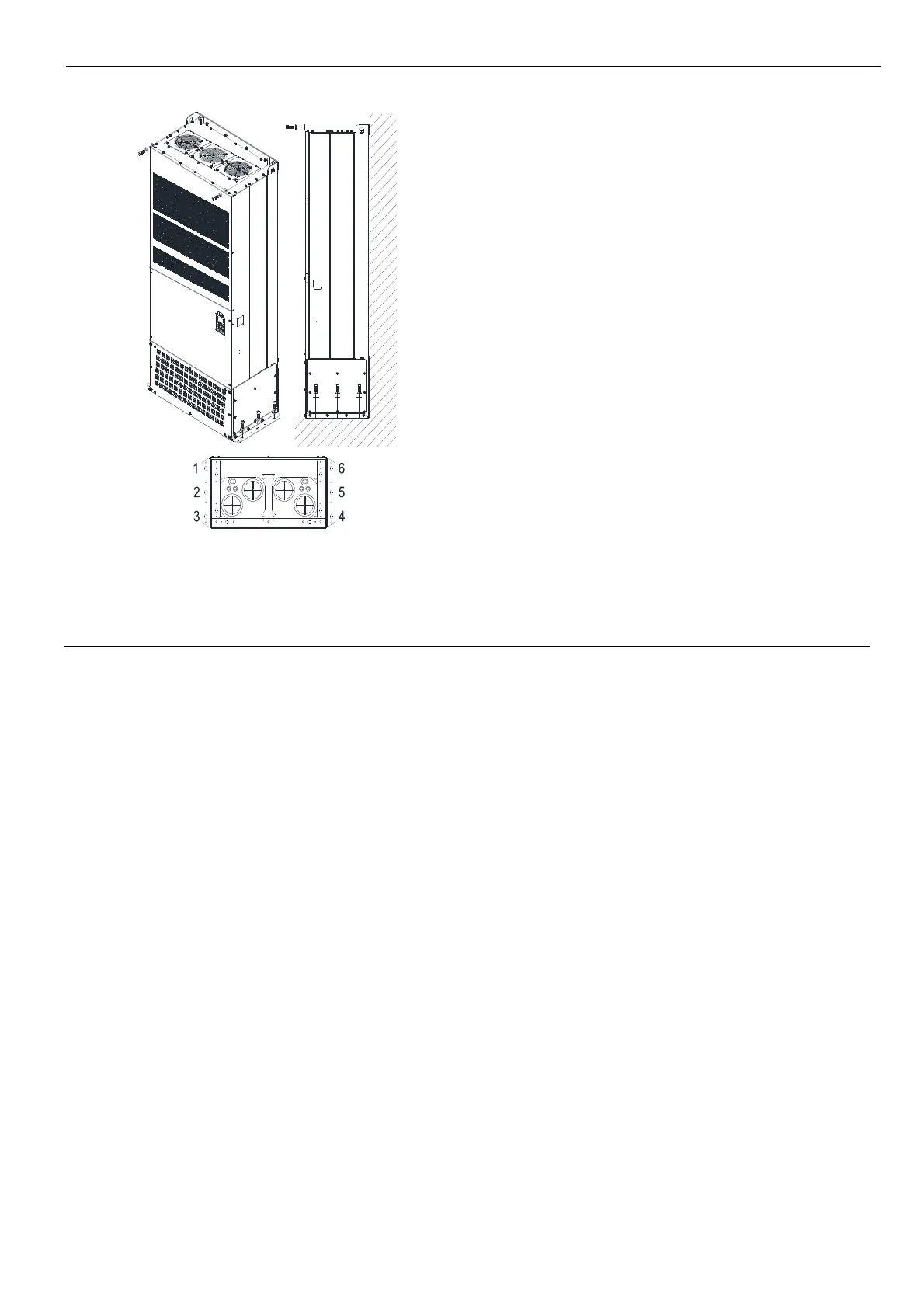

Fix the drive from the outside
Screw M12*8
Torque: 340–420 kg-cm / [295.1–364.6 lb-in.] /
[33.3–41.2 Nm]
Figure 3-77
Fix the drive from the outside
