Chapter 4 WiringCP2000
4-5

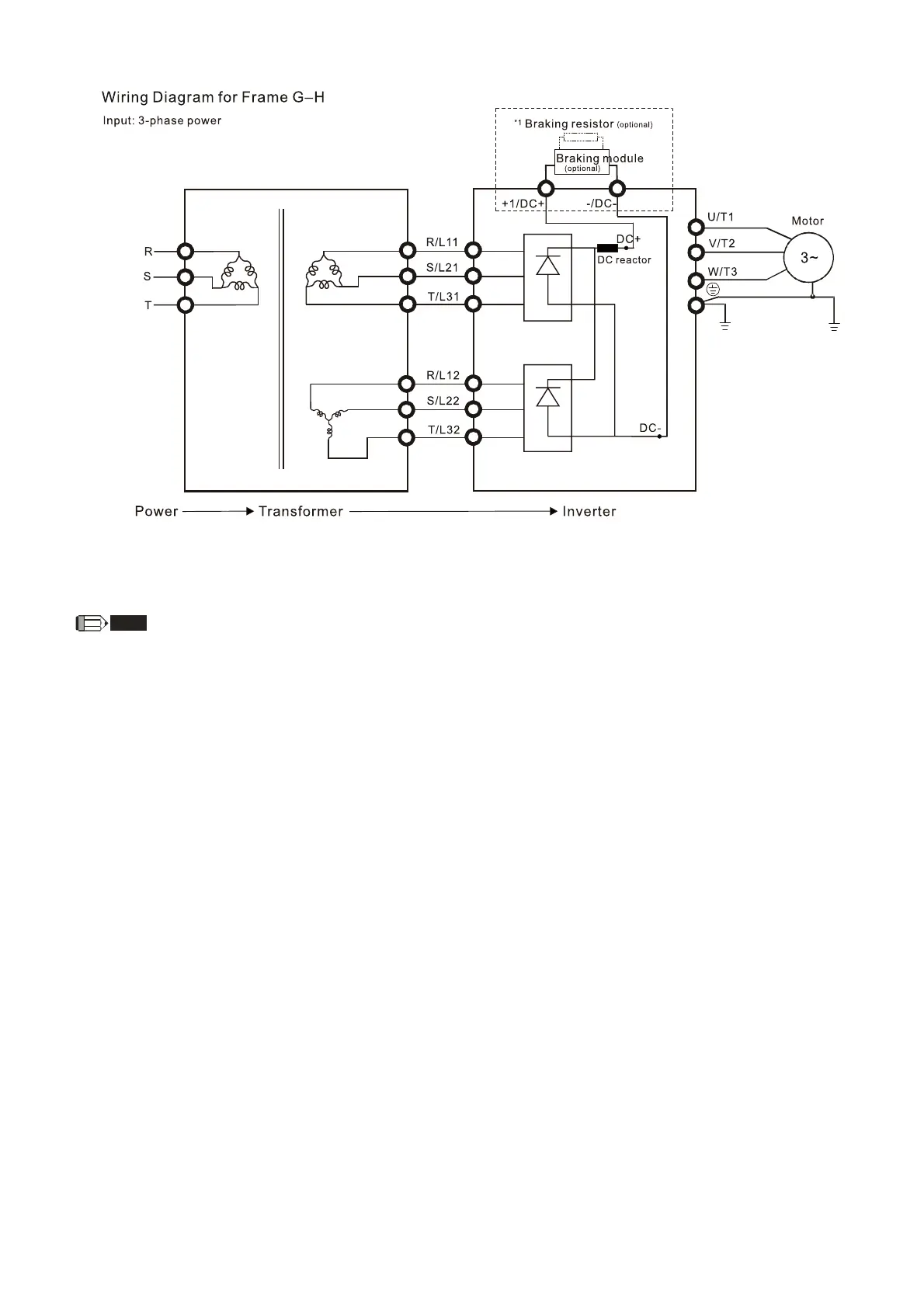

Figure 4-4
*1 Please refer to Chapter 7-1 for brake units and resistors selection
NOTE
When wiring for 12 Pulse Input, please strictly follow above wiring diagram.
