ROOF DECK

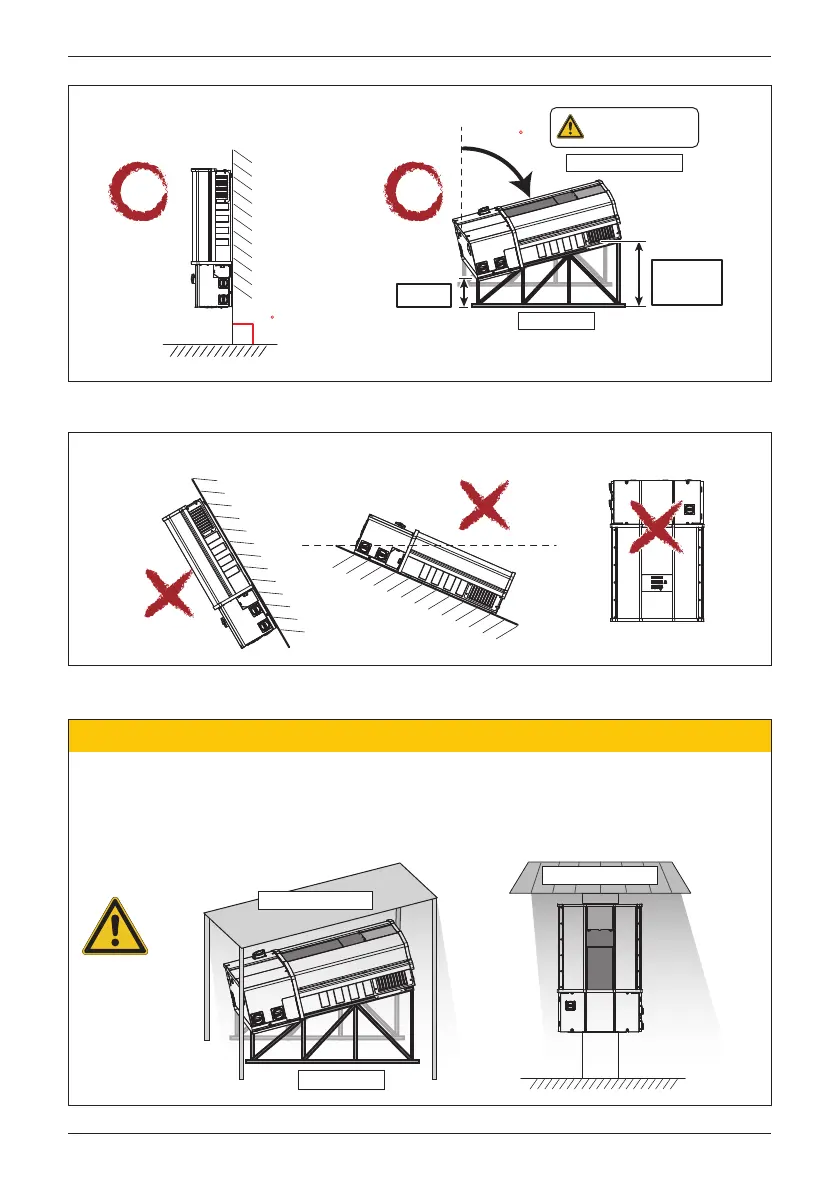

Figure 3-10: Permitted mounting positions
Figure 3-11: Prohibited mounting positions
Max. 90
NAME PLATE COVER
Keep the height above the highest
water level (flood level) to avoid
damage to inverter caused by flood.
height
To have enough space for
ventilation, keep the air outlet
30cm above ground.
≧12”
(≧30cm)
A name plate cover
must be installed.
O : Permitted
CAUTION !
- Name plate cover is required for all types of installation.
-
To avoid malfunction of inverter caused by extreme weather (ex: snow, hail…etc) or non-proper
installation/maintenance, an additional protection cover is strongly recommended to be installed
by Delta. For more details, please contact local service team.
X : Prohibited
90
ROOF DECK
Protection cover
Protection cover
32
Installation
To Next Page
