CAUTION !
1. Install the wall mount bracket to the rack system prior to installing the inverter.
Do not allow bending of the bracket. See Figure 3-12.
2. When installing the inverter on the rack system, use care not to apply excessive
stress/torque as shown in Figure 3-13. It’s known that for most tilt installations,
a rigid conduit body (e.g./ “LB”) will be applied to the AC side. Installer must
exercise care when installing, as overstressing the chassis may open a path for
water intrusion through the contact surface between the inverter module and the
wiring box.

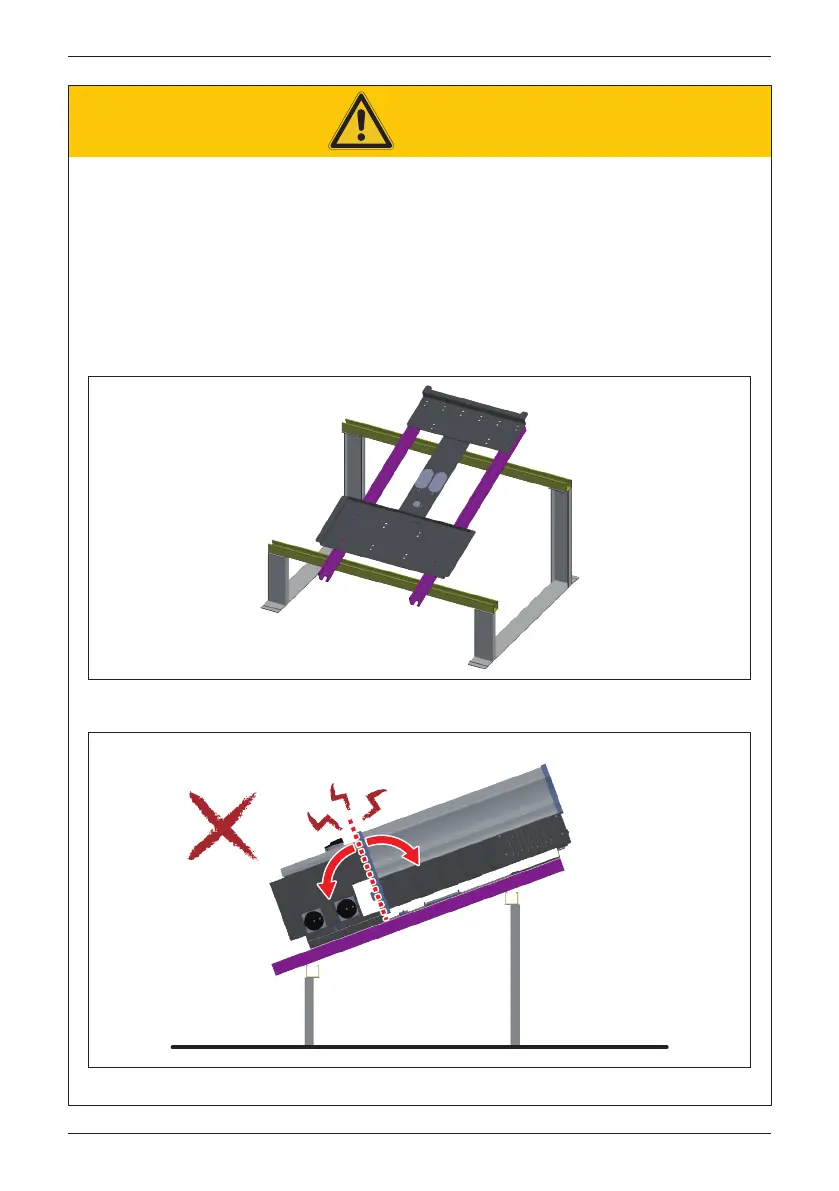

Figure 3-12: Wall mount fixed prior to inverter
Figure 3-13: Stress/torque should be prevented when installing the inverter
33
Installation
