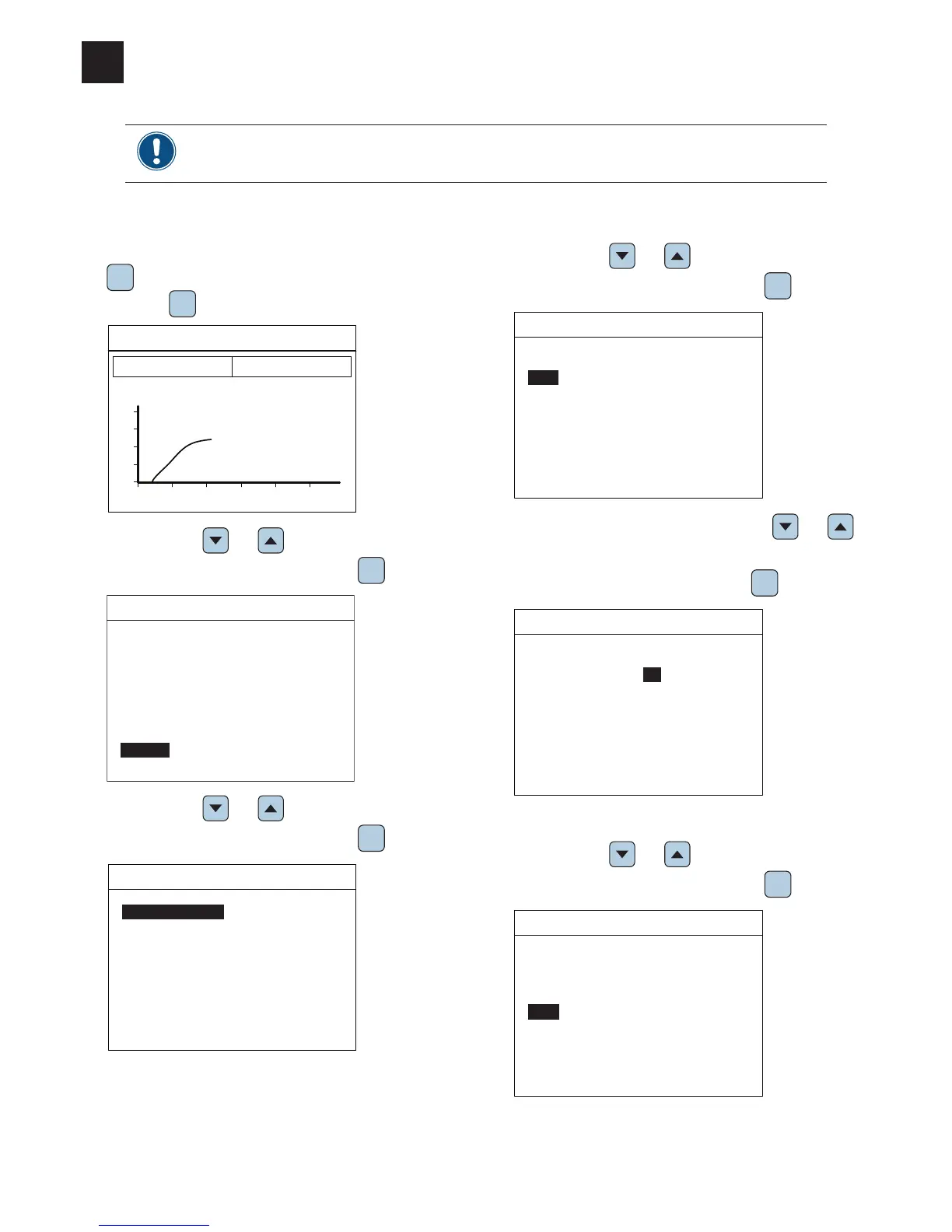

Quick installation guide for RPI M15A M20A inverters
Setting date and time
1. Whenthedefaultinformationisdisplayed,pressthebutton
ESC
toopenthemainmenu.Otherwise,repeatedlypress
thebutton
ESC
until the main menu is displayed.
20
15
10
5
0
4 8 12 16 20 24
P(w)
Runtime: 8.2Hrs Power: 12103W
On Grid
21. Jun 2013 09:30
E-Today: 47kWh
2. Usethebuttons and to select Settings.
Toconrmyourselection,pressthebutton
ENT
.
E-TodayE-Today
Power Meter
Energy Log
Event Log
Inverter Information
Settings
Operation Data
21. Jun 2013 09:30
Menu
3. Usethebuttons and to select Personal Settings.
Toconrmyourselection,pressthebutton
ENT
.
Personal Settings
Coefficients Settings
Install Settings
Active/Reactive Power Control
FRT
21. Jun 2013 09:30
Settings
Commissioning - further settings (optional)
11
Thesettingsdescribedinthissectionmaynotberelevantforyourinstallation.
► Check each setting whether it is needed for you.
4. Usethebuttons and to select Date.
Toconrmyourselection,pressthebutton
ENT
.
Language
Date
Time
Screen Saver
Brightness
Contrast
[ English ]
02 / 12 / 2013
(DD/MM/YYYY)
08 : 53
[ 5 min ]
[ 3 ]
[ 2 ]
21. Jun 2013 09:30
Personal Settings
5. Thedayisnowhighlighted.Usethebuttons and to
change the value.
Toconrmyoursetting,pressthebutton
ENT
.
Language
DateDate
Time
Screen Saver
Brightness
Contrast
[ English ]
/ 12 / 2013
02
(DD/MM/YYYY)
08 : 53
[ 5 min ]
[ 3 ]
[ 2 ]
21. Jun 2013 09:30
Personal Settings
6. Repeat step 5 to set month and year.
7. Usethebuttons and to select Time.
Toconrmyourselection,pressthebutton
ENT
.
Language
Date
Time
Screen Saver
Brightness
Contrast
[ English ]
02 / 12 / 2013
(DD/MM/YYYY)
08 : 53
[ 5 min ]
[ 3 ]
[ 2 ]
21. Jun 2013 09:30
Personal Settings
8. Repeat step 5 to set hours and minutes.
