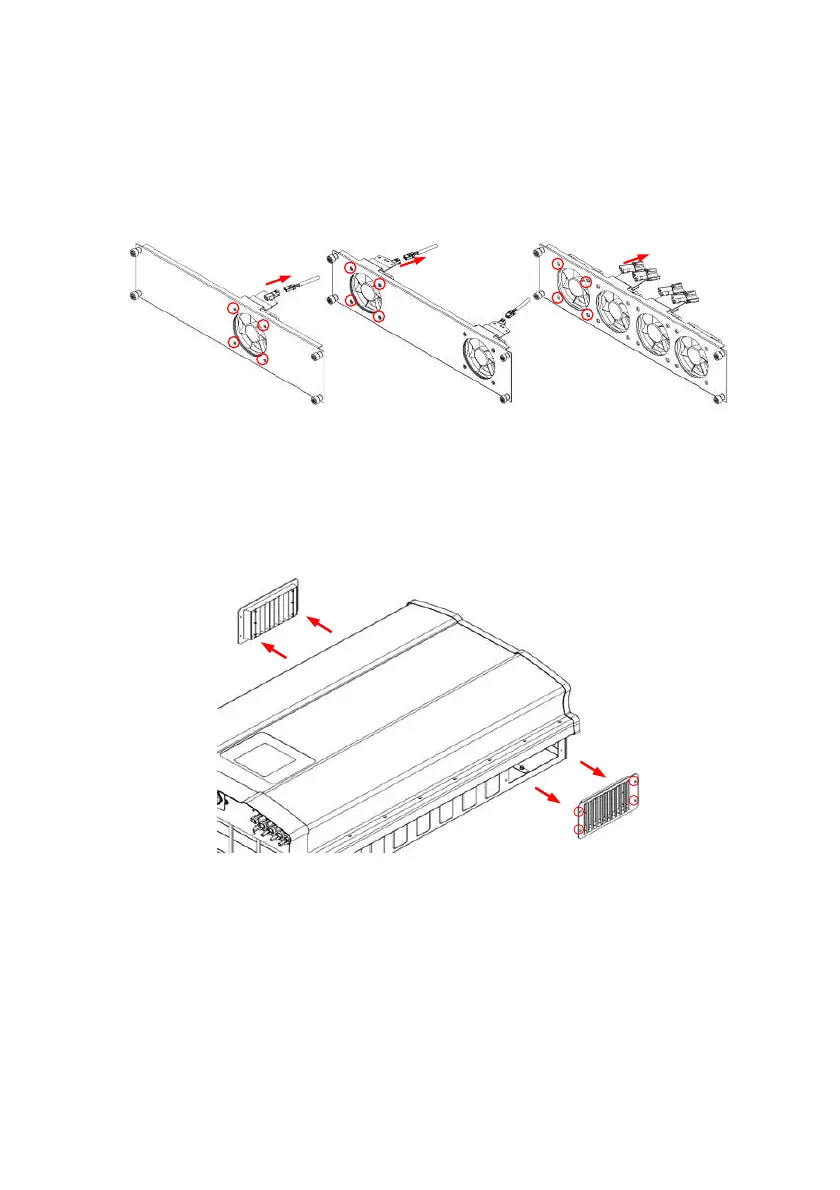

8.2 Replace Fan
If fans fail and need to be replaced, user has to disassemble 4 pcs screws
around the fans and disconnect the connector right behind the fan bracket. Then
replace new fan and installed it reversely (Figure 8-2 illustrates about replacing
the first fan on fan bracket).
RPI-M15/ M20/ M30
RPI-M8/ M10/ M12
RPI-M15A/ M20A
Figure 8-2 Disassembling fan
8.3 Clean Air Outlets
Please refer to figure 8-3 about cleaning the air outlet. Disassemble 4 screws of
air outlet and then clean the dust. The air outlets at both two side of inverter have
to be cleaned regularly.
Figure 8-3 Disassembling air outlets
