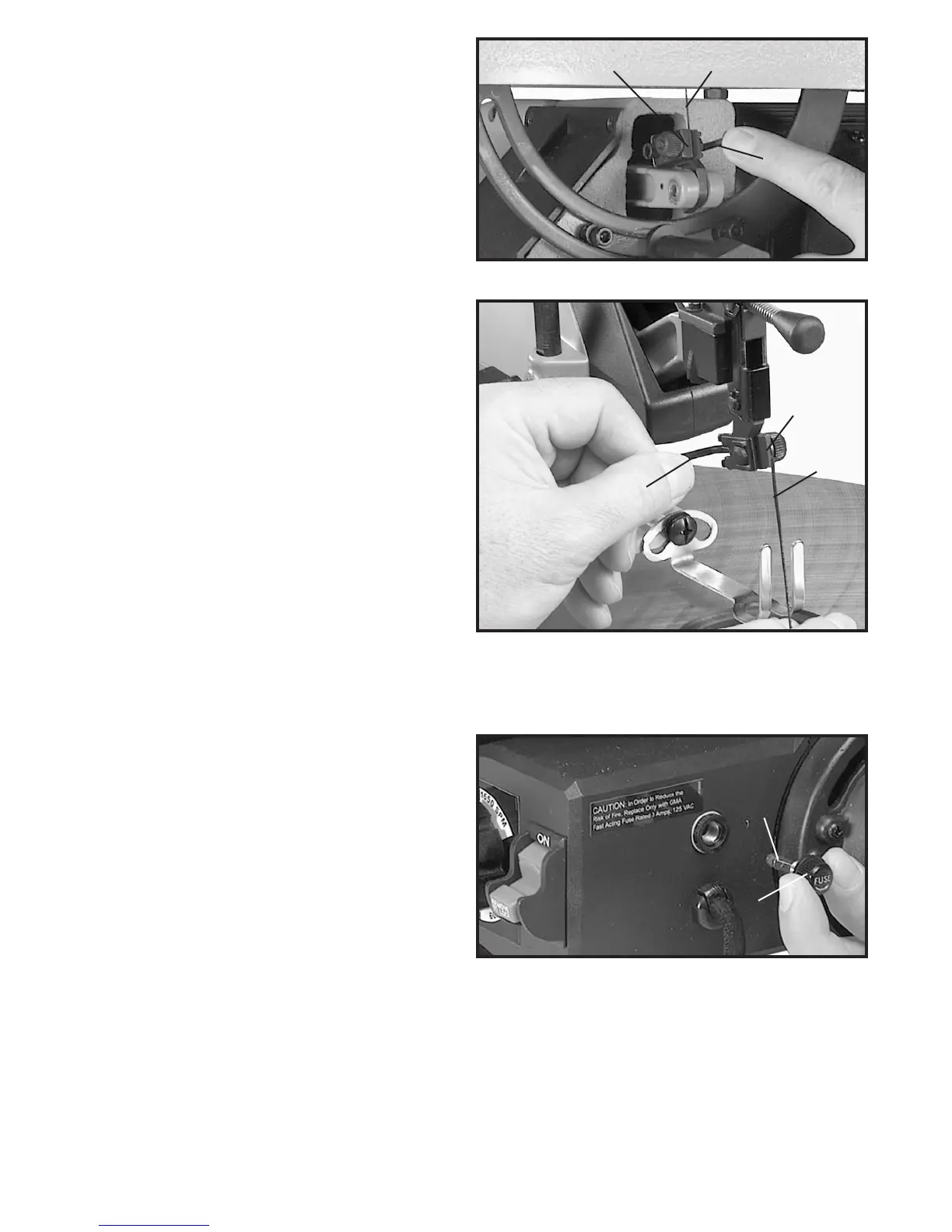

4. Push lower blade chuck locking lever (F) Fig. 25, to
the rear as shown. This will release the blade (G) from
the lower chuck (H).
Fig. 25
F
G
H
I
J
L
Fig. 26
5. Insert new blade (I) Fig. 26, into the upper blade
holder (J) making certain the blade teeth are pointing
down toward the table. Push upper blade chuck locking
lever (L) to the front. Insert new blade into the lower
blade holder Fig. 25 in the same manner.
6. Apply blade tension by referring to the following
section “ADJUSTING BLADE TENSION.”
FUSE REPLACEMENT
A fuse holder (A) Fig. 27, and fuse (B) are located at the
rear of the machine and should be removed and
checked if the machine does not operate. If the fuse (B)
is bad, replace it with a 3 amp fast blow fuse.
Fig. 27
A
B
