TP70P Quick Start

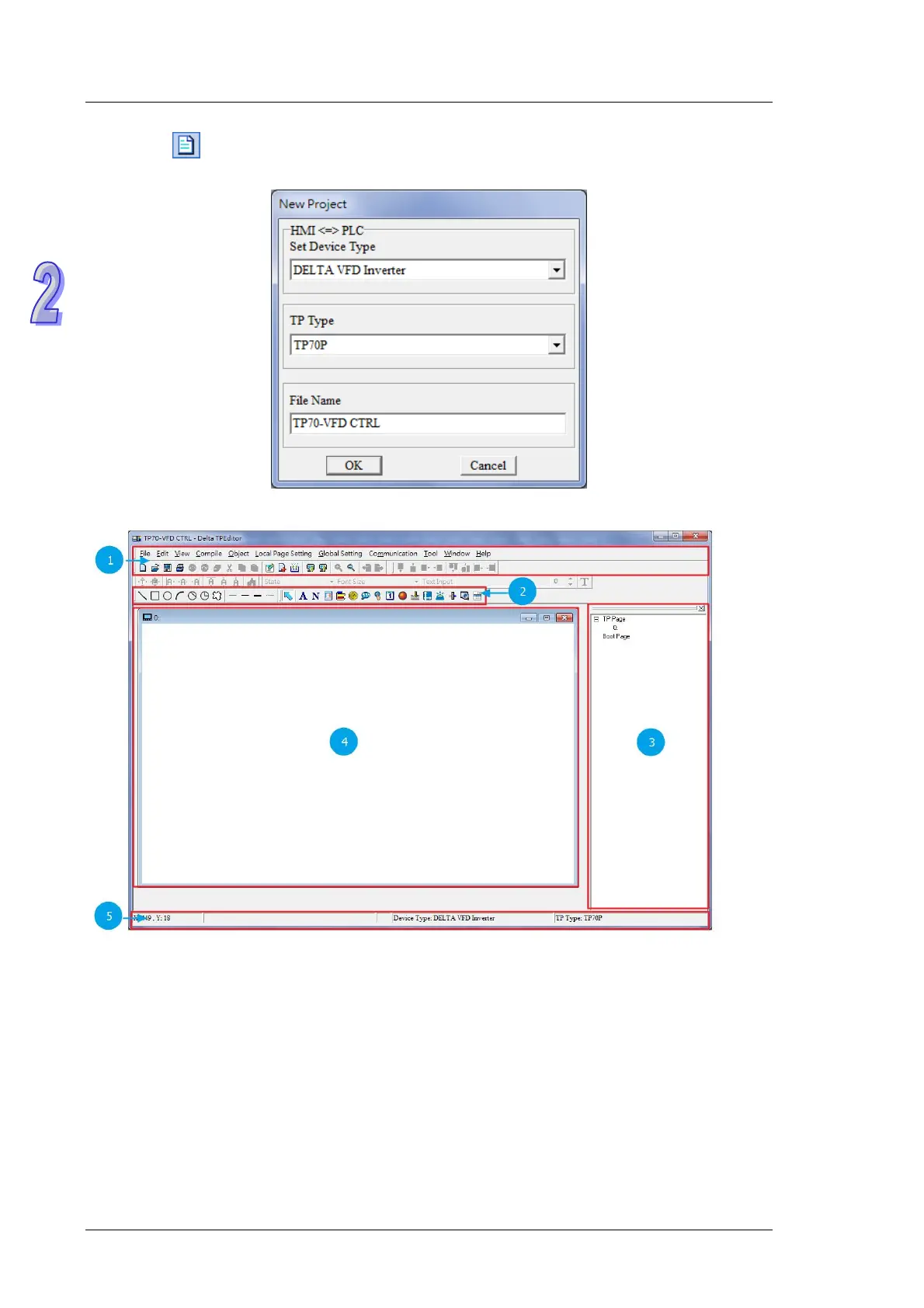

Step 2: After on the standard toolbar is cliked, a new project will be added. In the
New Project
window,
select
DELTA VFD Inverter
in the
HMI<=>PLC
section, select
TP70P
in the
TP Type
drop-down list box, and
type “TP70-VFD CTRL” in the
File Name
box.
After
OK
in the
New
Project
window is clicked, a project environment will be displayed.
The interface of TPEditor is described below. Please refer to TPEditor User Manual for more information.
Menu bar, standard toolbar, and object arrangement toolbar: The main functions of TPEditor are included.
The functions which are used more frequently are on the standard toolbar, and the functions which are used
less frequently are on the menu bar.
Geometric object toolbar and object toolbar: They provide buttons used for drawing figures and creating
buttons. There are some other objects on the
Object
menu.
Page management area: Users can view/add/delete pages.
Working area: Users can edit pages in this area.
Status bar: The information about the current project and communication is displayed here.
