TP70P Quick Start

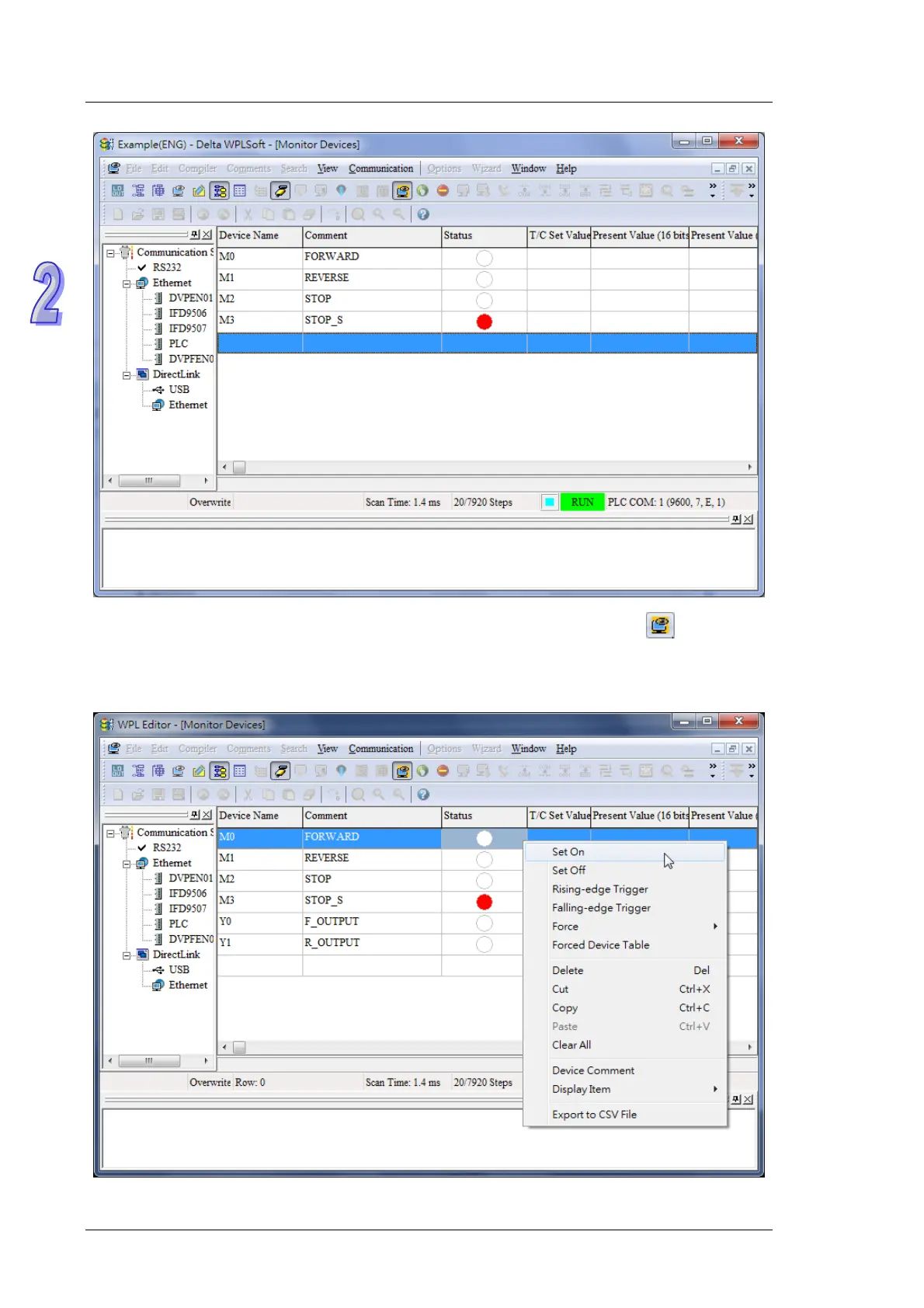

The states of the devices broght into the device monitoring table will be shown only if
is pressed.
If the users want to chage the state of a device, they can right-click the device, and click an item on the
context menu which appears. M0 is set to ON here. When M0 is ON, Y0 is ON, the AC motor drive used
rotates forwards, and the users can see that the forward rotation indicator on the screen of TP70P is
green.
2-26
