TP70P Quick Start

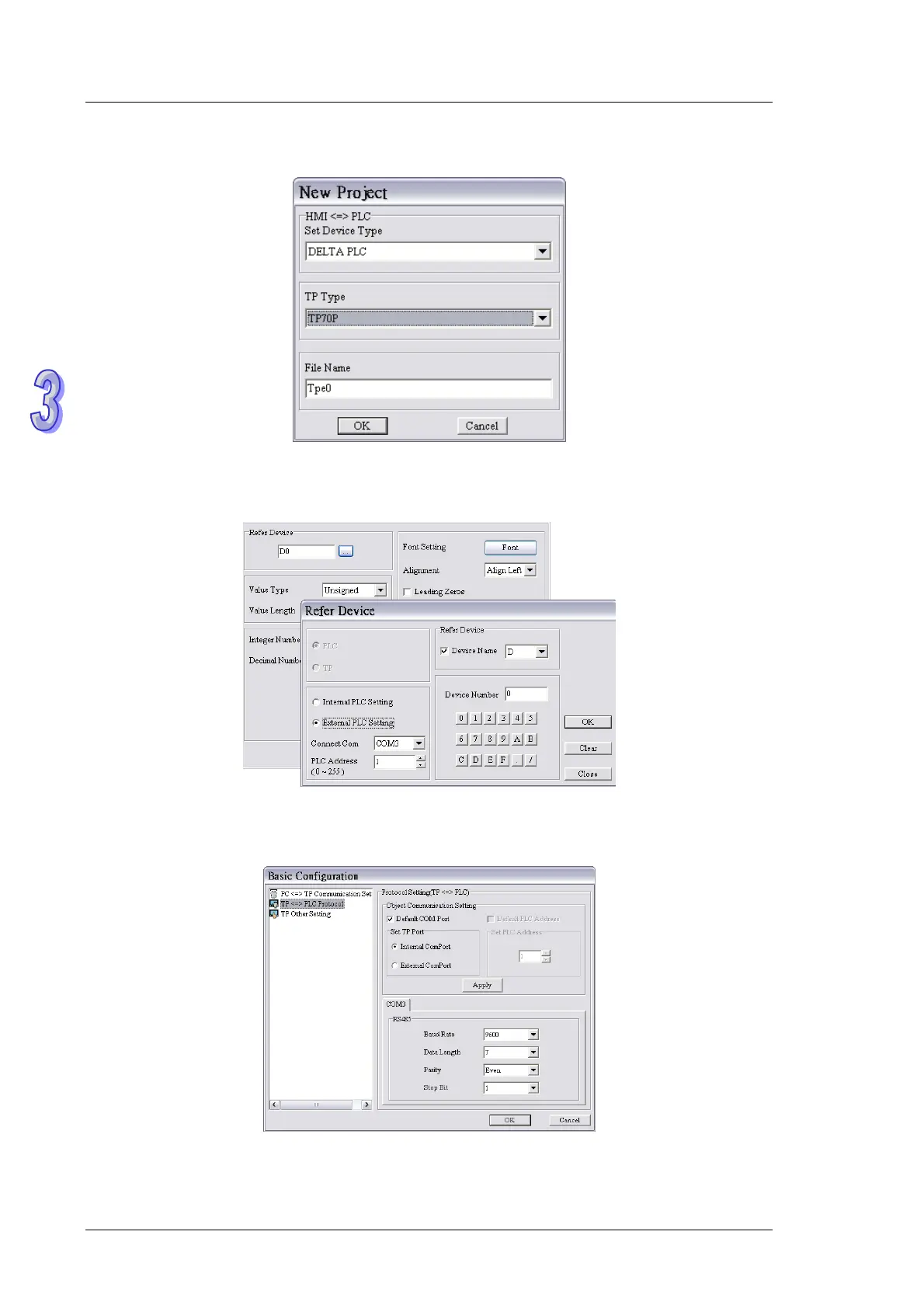

Example: COM3 is used to read the value in D0 in a DVP series PLC.
Step 1:
Select
DELTA PLC
in the
HMI <=> PLC
section in the
New Project
window.
Step 2:
Create a numeric display in the working area. Select the
External PLC Setting
option button, and set a
PLC address in the
Refer Device
window. (In the example, the PLC address set is 1.)
Step 3:
In the
Basic Configuration
window, click
TP <=> PLC Protocol
, and then set a communication format
for COM3. (In the example, the communication format set is (9600, 7, E, 1).)
3-8
