6
Model: VFB080D4H1

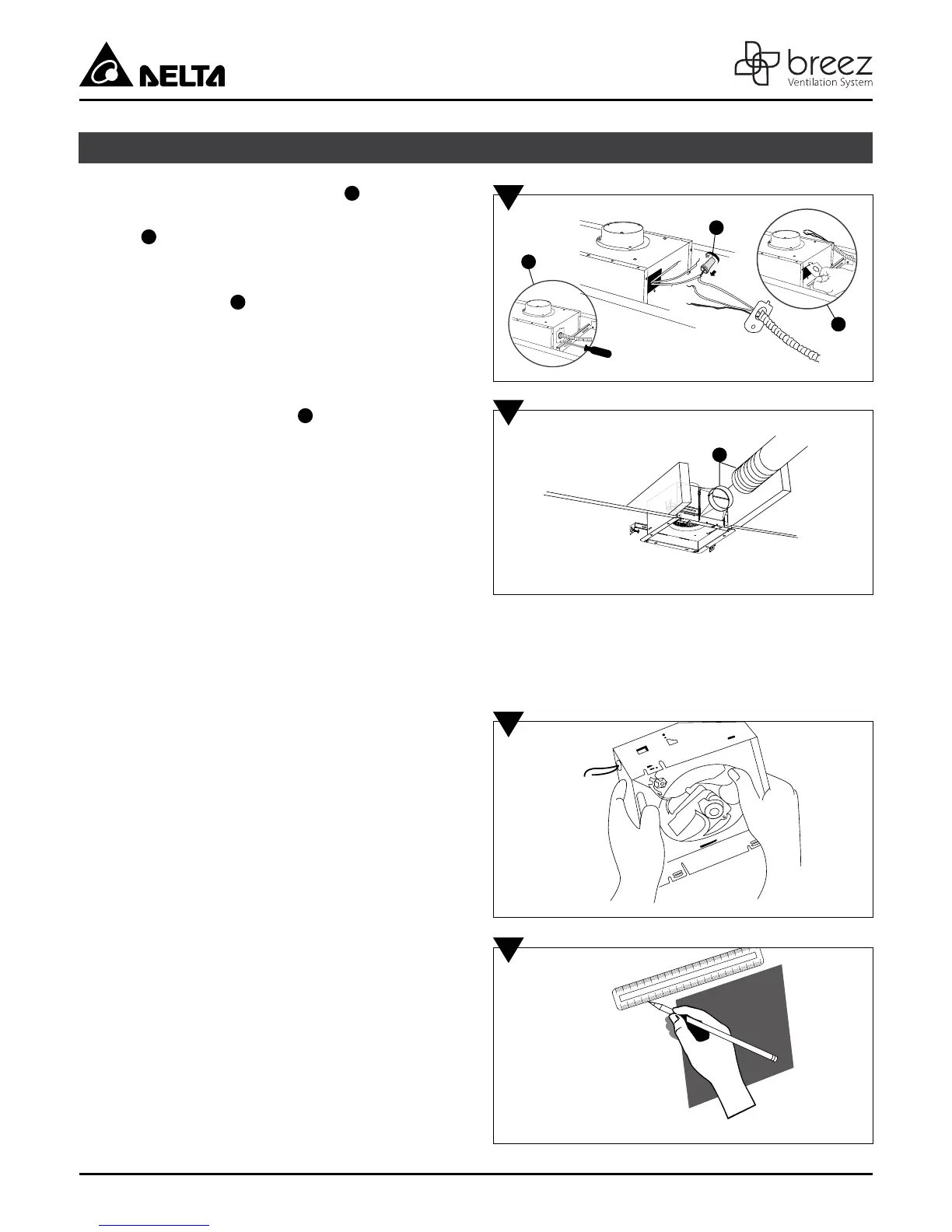

ASSEMBLY INSTRUCTIONS
5. Remove the fan junction box cover
a
. Using wire
nuts (not supplied), connect house wires to fan
wires
b
as shown in the wiring diagram on page 4.
Wire connections are as follows: black to live switch
wire, white to neutral, green to ground. Reattach fan
junction box cover
c
.
6. Connect a 4 in. circular duct
a
(not supplied)
and vent to the outside. Secure it with duct tape
(not supplied) or clamp (not supplied) to make the
connection secure and air tight.
7. Turn on power source. Check fan for any abnormal
sound or vibration.
Turn off power source. Review all safety precautions.
1. Remove existing fan.
2. Measure the opening to ensure it is large enough to
accommodate the new fan body (10.25 in. x 10.25
in.).
a
b
c
5
a
6
1
2
EXISTING CONSTRUCTION – ACCESSIBLE FROM ABOVE
BEFORE INSTALLATION
