Delta VFD015B43A

Chapter 5 Parameters_VFD-B Series
5-52
Revision 10/2005, BE13, SW V4.08
03 - 13
Brake Release Frequency Unit: 0.01
Settings 0.00 to 400.00Hz Factory Setting: 0.00
03 - 14
Brake Engage Frequency Unit: 0.01
Settings 0.00 to 400.00Hz Factory Setting: 0.00
 These two parameters are used to set control of mechanical brake via the output terminals (MO1~MO3)
when Pr.03-00~03-03 is set to 29. Refer to the following example for details.
Example:

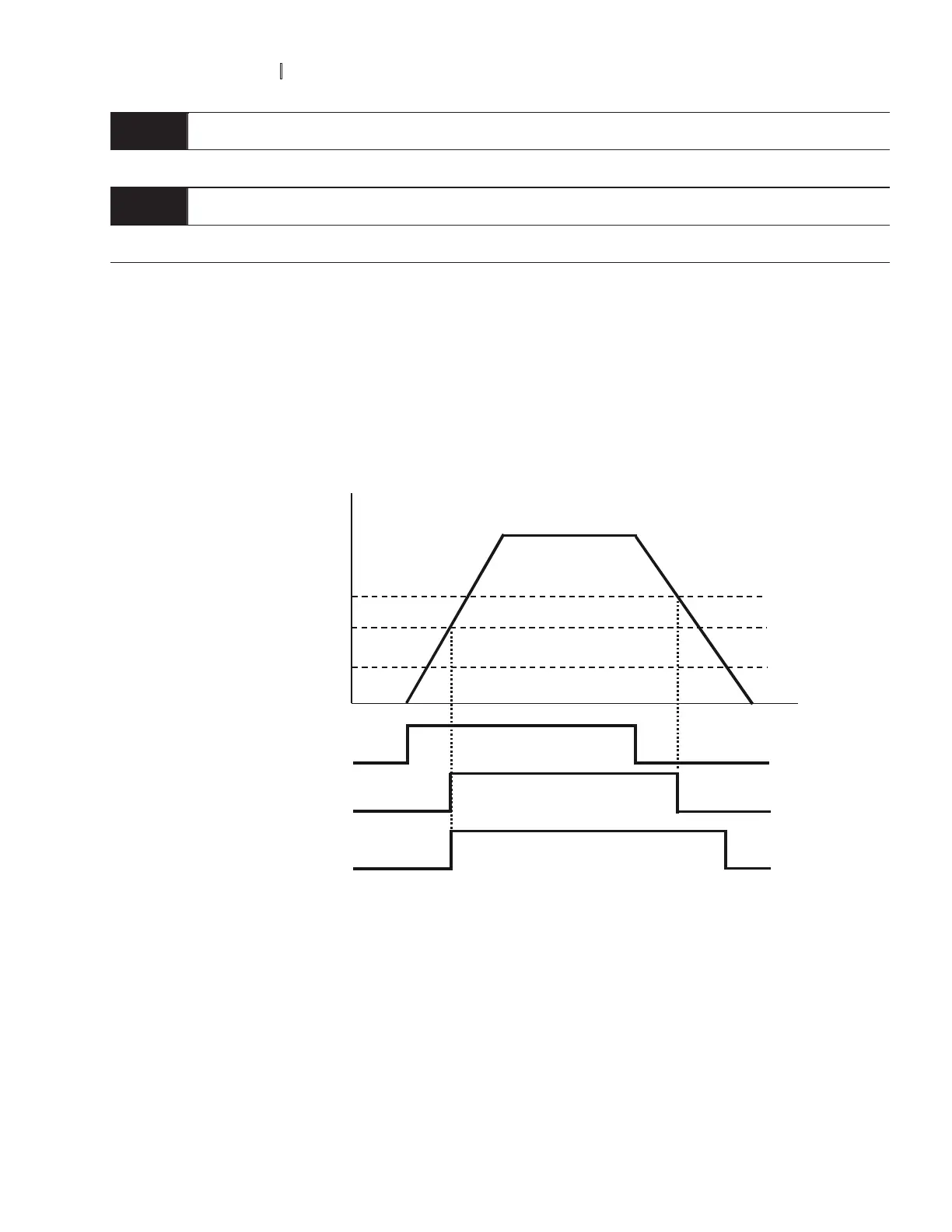

1. Case 1: Pr.03-14 t Pr.03-13
2. Case 2: Pr.03-14 d Pr.03-13
Case 1: Pr.03-14
Case 2: Pr.03-14
Pr. 03-13
Frequency
Output
Time
Run/Stop
Case 1: MOX=29
Case 2: MOX=29
Note: MOX: setting value of Pr.03-00~Pr.03-03
