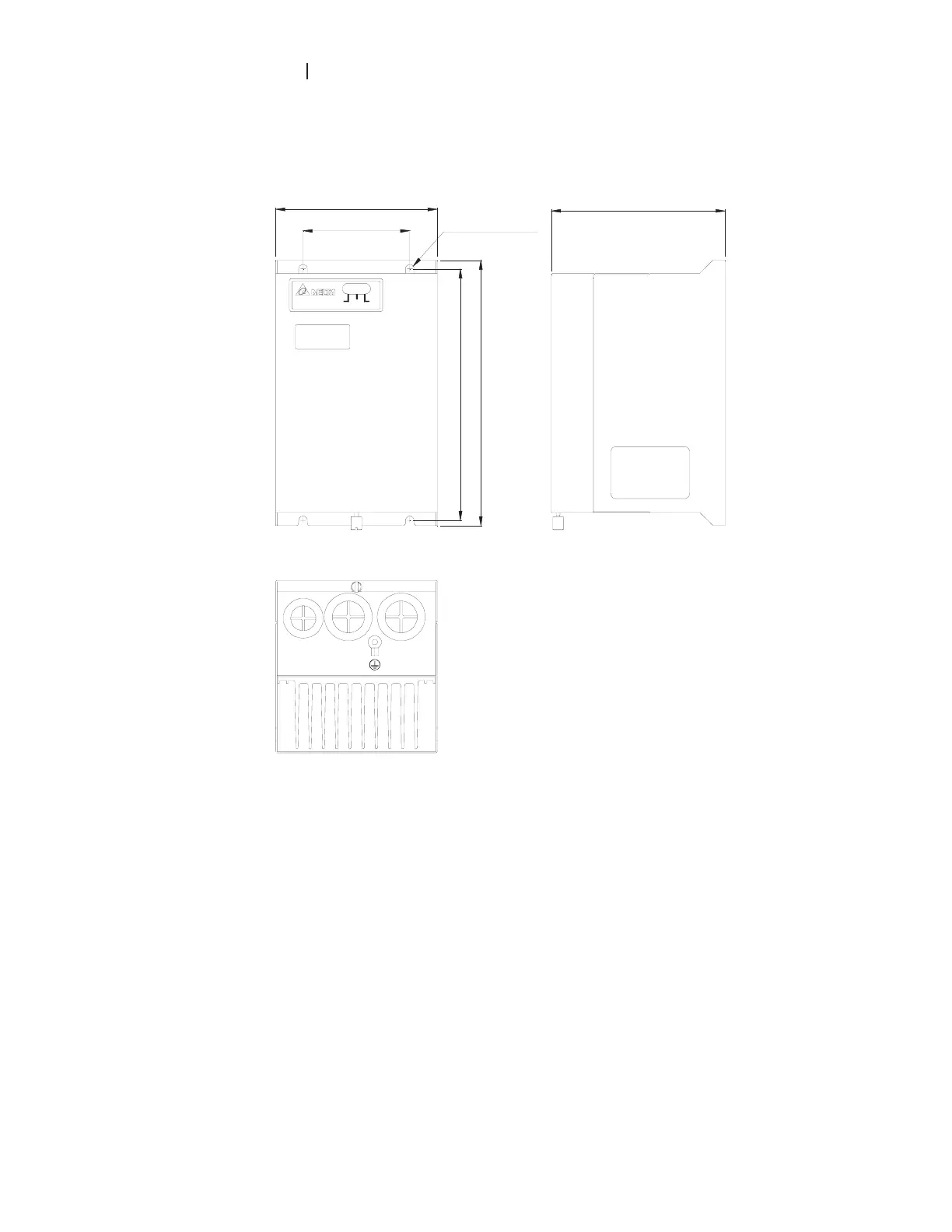

B.1.3 Dimensions for Braking Unit
(Dimensions are in millimeter[inch])
80.0 [3.15]
121.0 [4.76]
189.5 [7.46]
200.0 [7.87]
130.0 [5.12]
R3.3 [R0.13]
ACT.
YEL LOW
CHARGE
GRE EN
ERR.
RED
