Appendix B Accessories_VFD-B Series
Revision 10/2005, BE13, SW V4.08 B-29

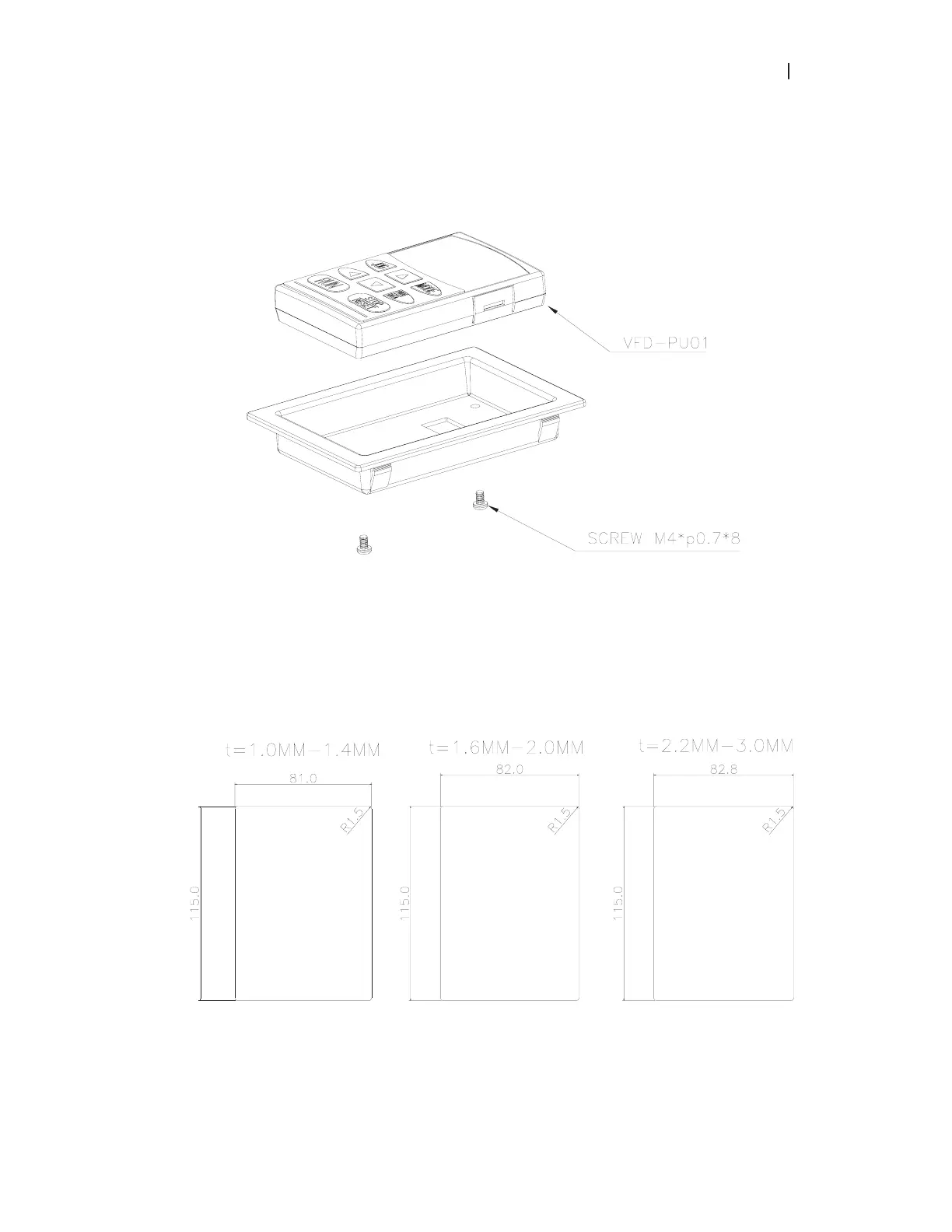

B.5 Remote Panel Adapter (RPA 01)
Remote panel adapter for VFDPU01
Mounting hole dimensions
(Dimensions are in millimeter)
Following is the mounting hole dimension of the plate for RPA01. Please choose the applicable one from below,
depending on the plate thickness (t).
