Delta VFD015C43A - Frame D0-2

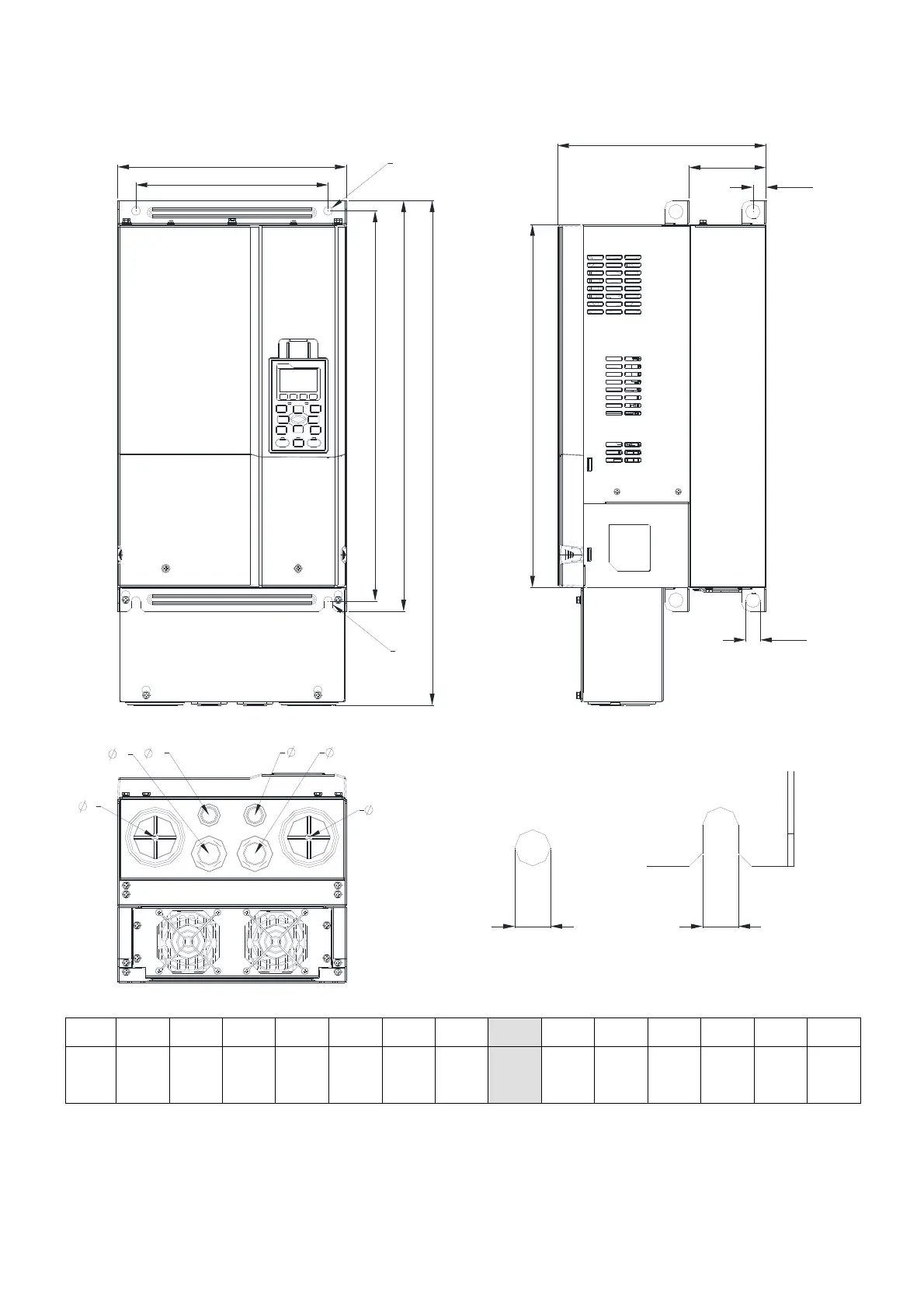

Chapter 1 IntroductionC2000 Series
1-11
Frame D0
D0-2: VFD370C43U; VFD450C43U;
W
W1
H
H1
H2
SEE DETAIL A
SEE DETAIL B
D
D1
S2
D2
H3
S1
S1
DETAIL A
(MOUNTING HOLE)
DETAIL B
(MOUNTING HOLE)
1
2
3
3
2
1
Unit: mm [inch]
Frame
W H D W1 H1 H2 H3
D1* D2 S1 S2 Φ1 Φ2 Φ3
D0-2
280.0
[11.02]
614.4
[24.19]
255.0
[10.04]
235.0
[9.25]
500.0
[19.69]
475.0
[18.70]
442.0
[17.40]
94.2
[3.71]
16.0
[0.63]
11.0
[0.43]
18.0
[0.71]
62.7
[2.47]
34.0
[1.34]
22.0
[0.87]
D1*: Flange mounting
