Chapter 15 CANopen Overview C2000 Plus
15-6
15-2 Wiring for CANopen
Use an external adapter card EMC-COP01 for CANopen wiring to connect the CANopen to the drive.

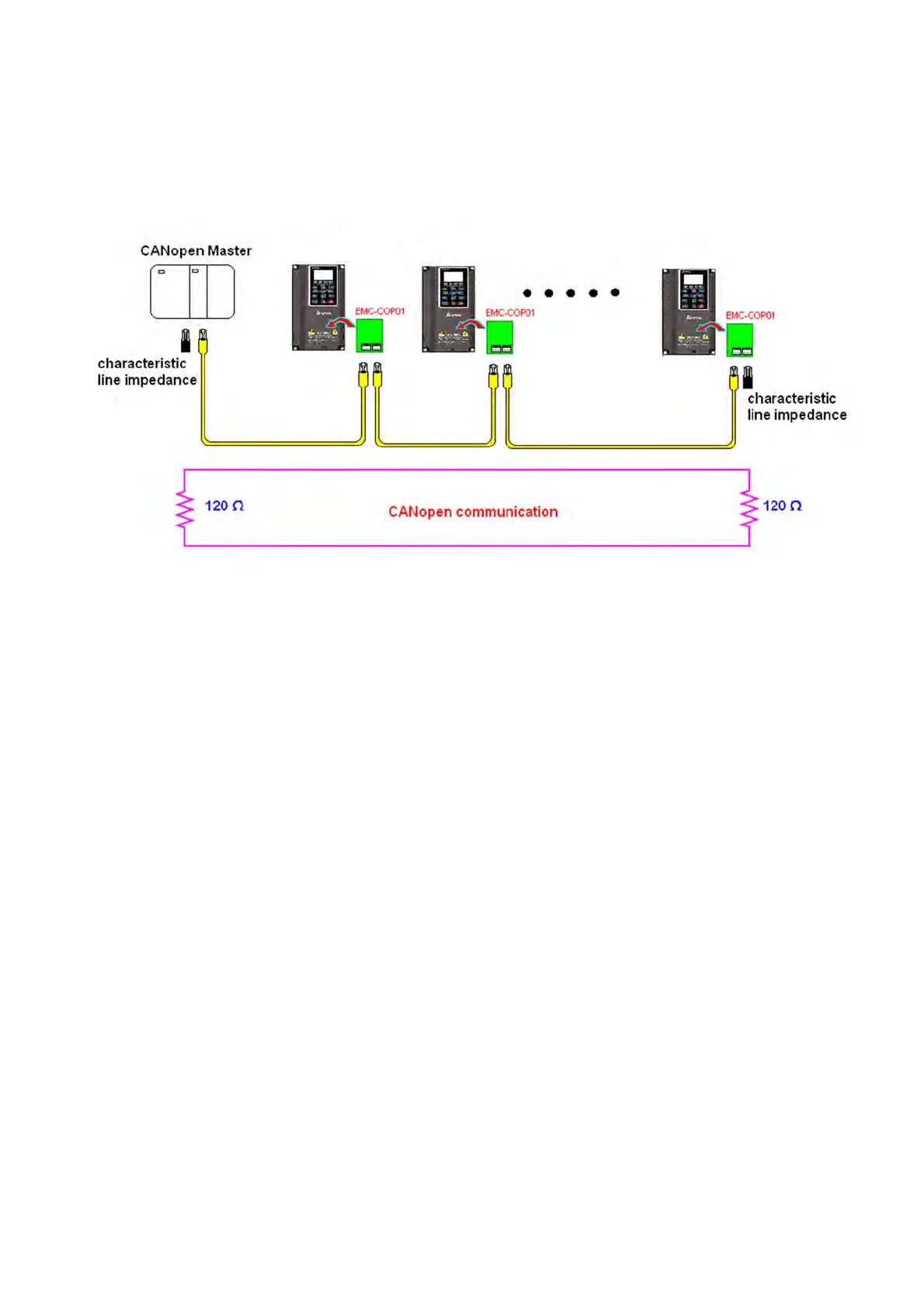

The link uses a RJ45 cable. You must wire the two farthest ends with 120 Ω terminating resistors as shown
in the picture below.
C2000 Plus
C2000 Plus
C2000 Plus
