Chapter 10 Digital Keyp
ad
C2000 Plus
10-41

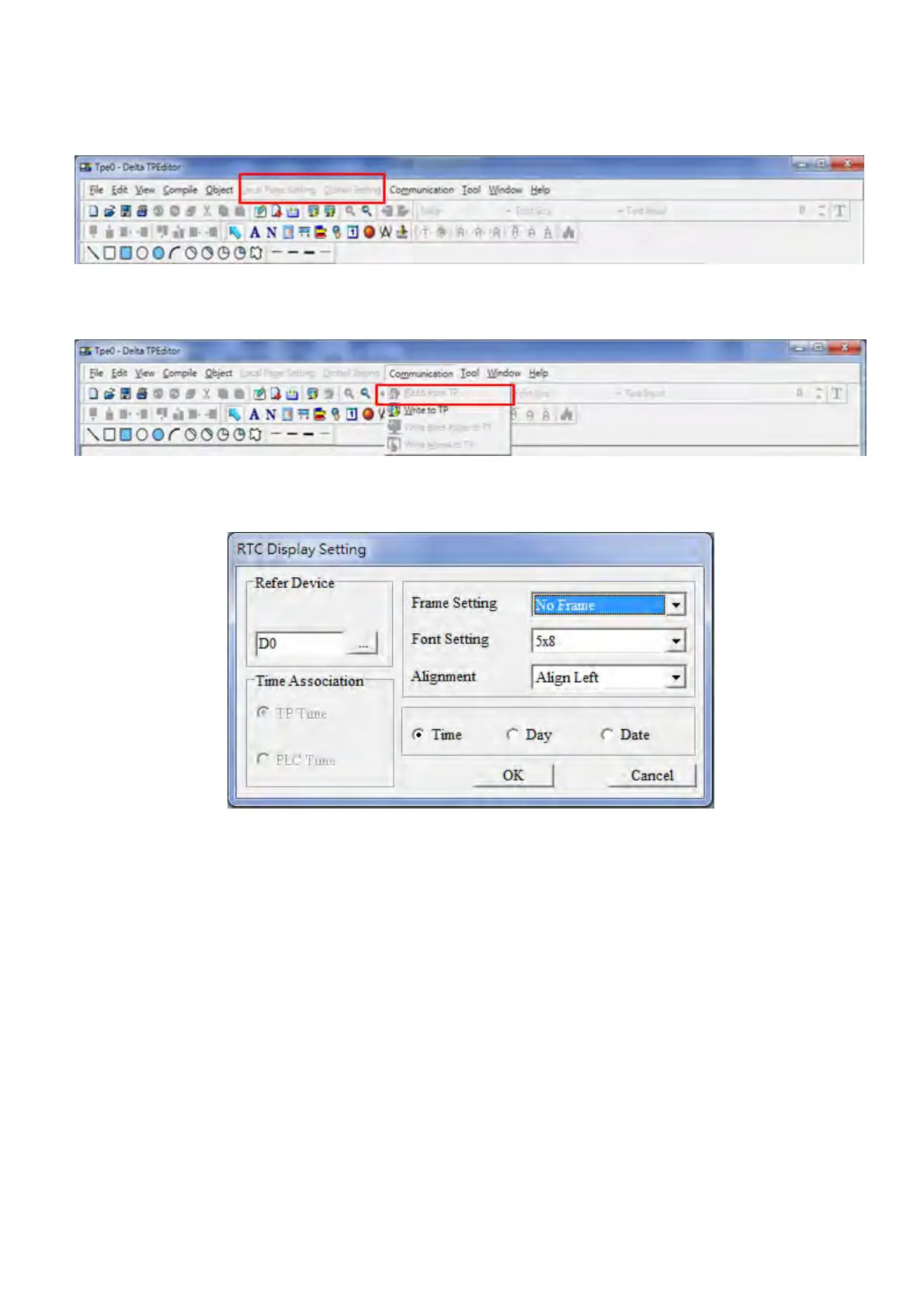

10-5 Unsupported Functions when usi
ng TPEditor with the KPC-CC01
1.
Local Page Setting
and
Global Setting
functions are not supported.
2. In the
Communication
menu,
Read from TP
function is not supported.
3. In the
RTC Display Setting
, you cannot change the
Refer Device
.
385
387
