Chapter 16 PLC Function ApplicationsC2000 Plus
16-12

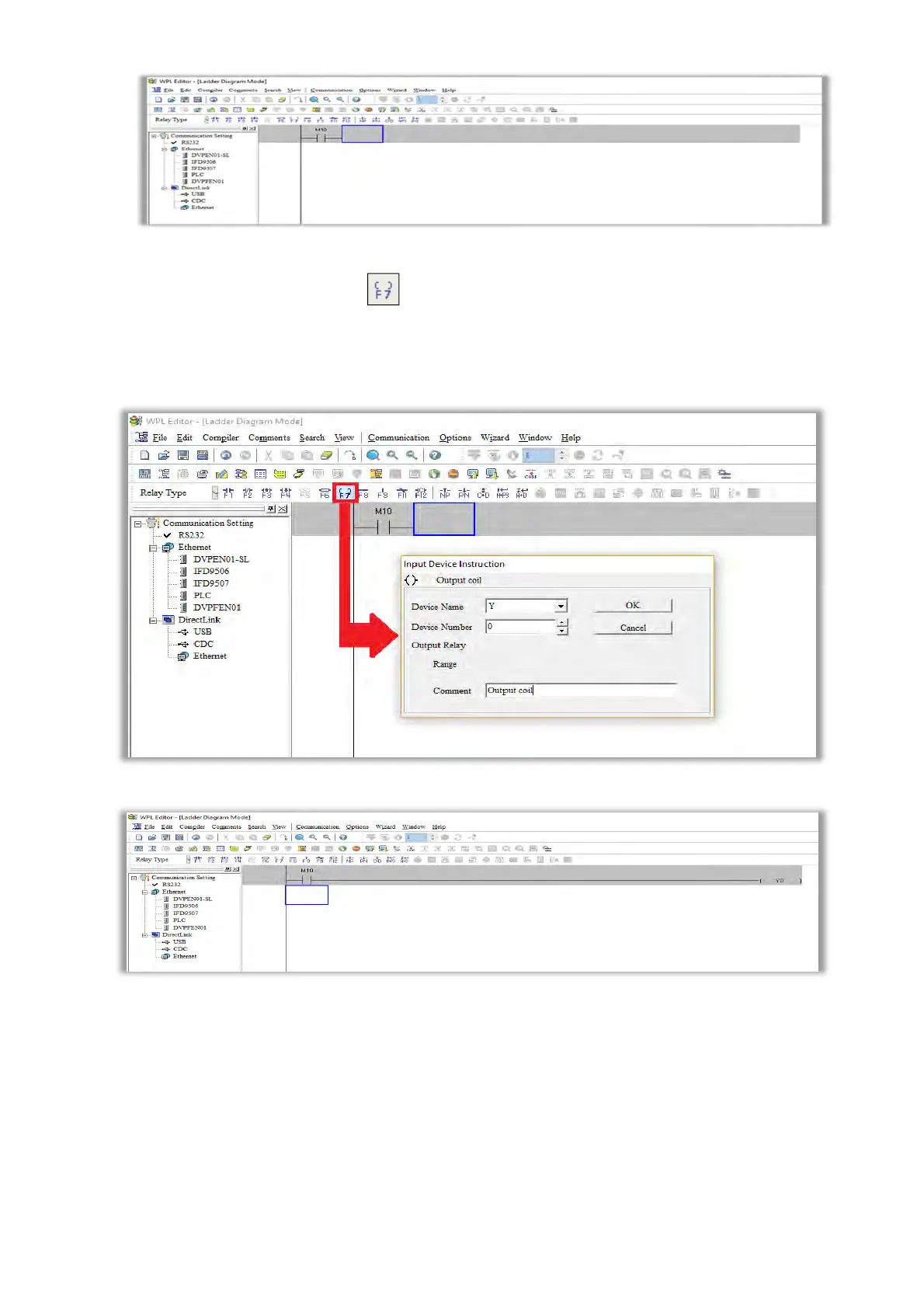

Figure 16-13
Step 3: Click on the output coil icon or press function key F7. After the name of the input
device and the comment dialog box have appeared, the device name (such as "Y"), device
number (such as "0"), and input comments (such as "output coil") can be selected; press the
OK button when finished (see figure 16-14 and 16-15 below).
Figure 16-14
Figure 16-15
