Delta VFD040C43A-21 User Manual

Chapter 16 PLC Function ApplicationsC2000 Plus
16-30
Example
LD X0
X0
Y0
CNT C0 K5
X1
RST
C0
C0
RST C0
LD X1
CNT C0 K5
LD C0
OUT Y0

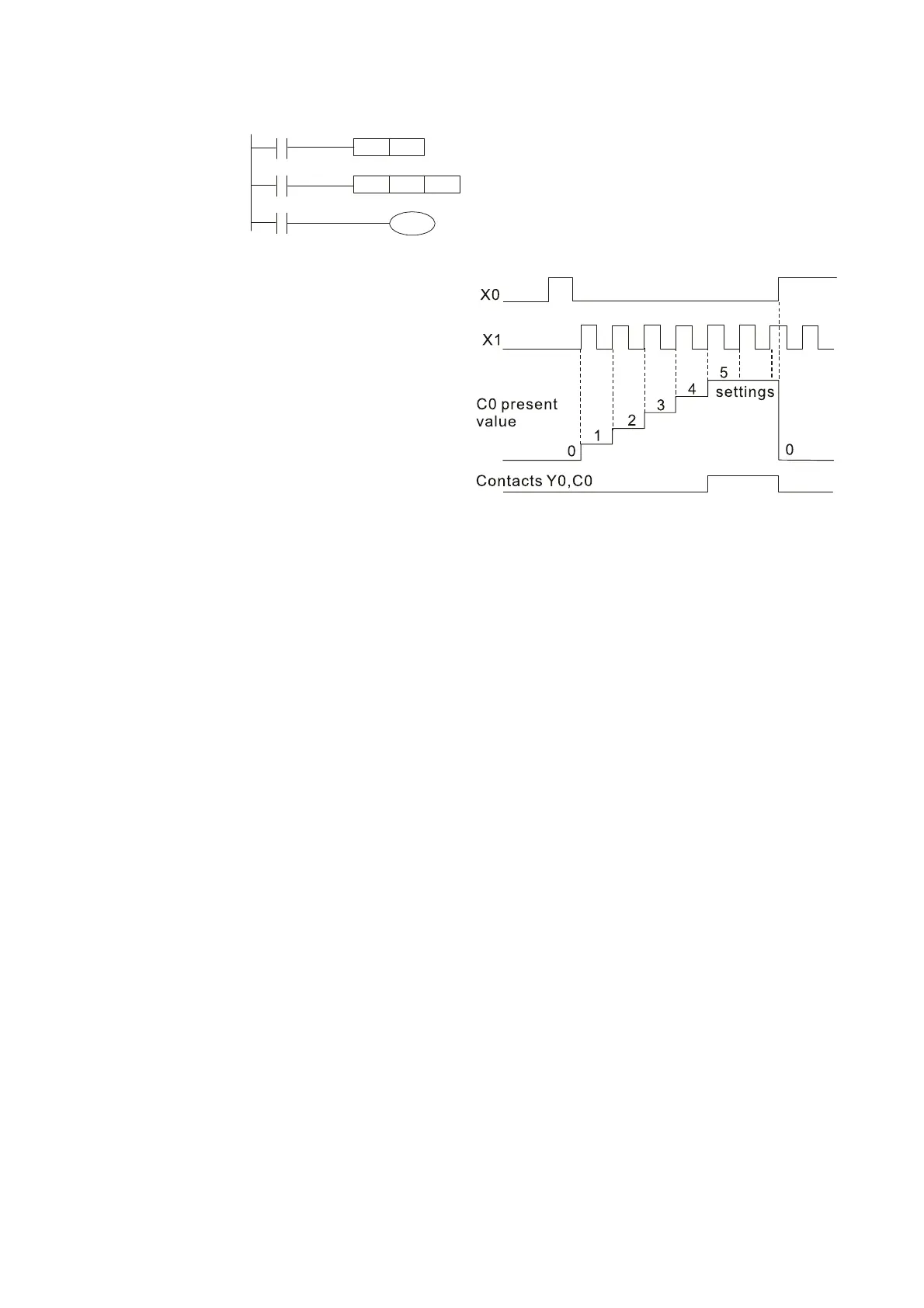

1. When X0=On and the RST command is
executed, the current value of C0 will revert
to 0, and the output contact will revert to
Off.
2. When X1 changes from Off→On, the
current value of the counter will execute an
increase (add one).
3. When the count of counter C0 reaches the
set value K5, the contact C0 will come On,
and the current value of C0＝ set value
=K5. Afterwards, signal C0 triggered by X1
cannot be received, and the current value
of C0 will remain K5.
4.
