Chapter 7 Optional AccessoriesC2000 Plus
7-23

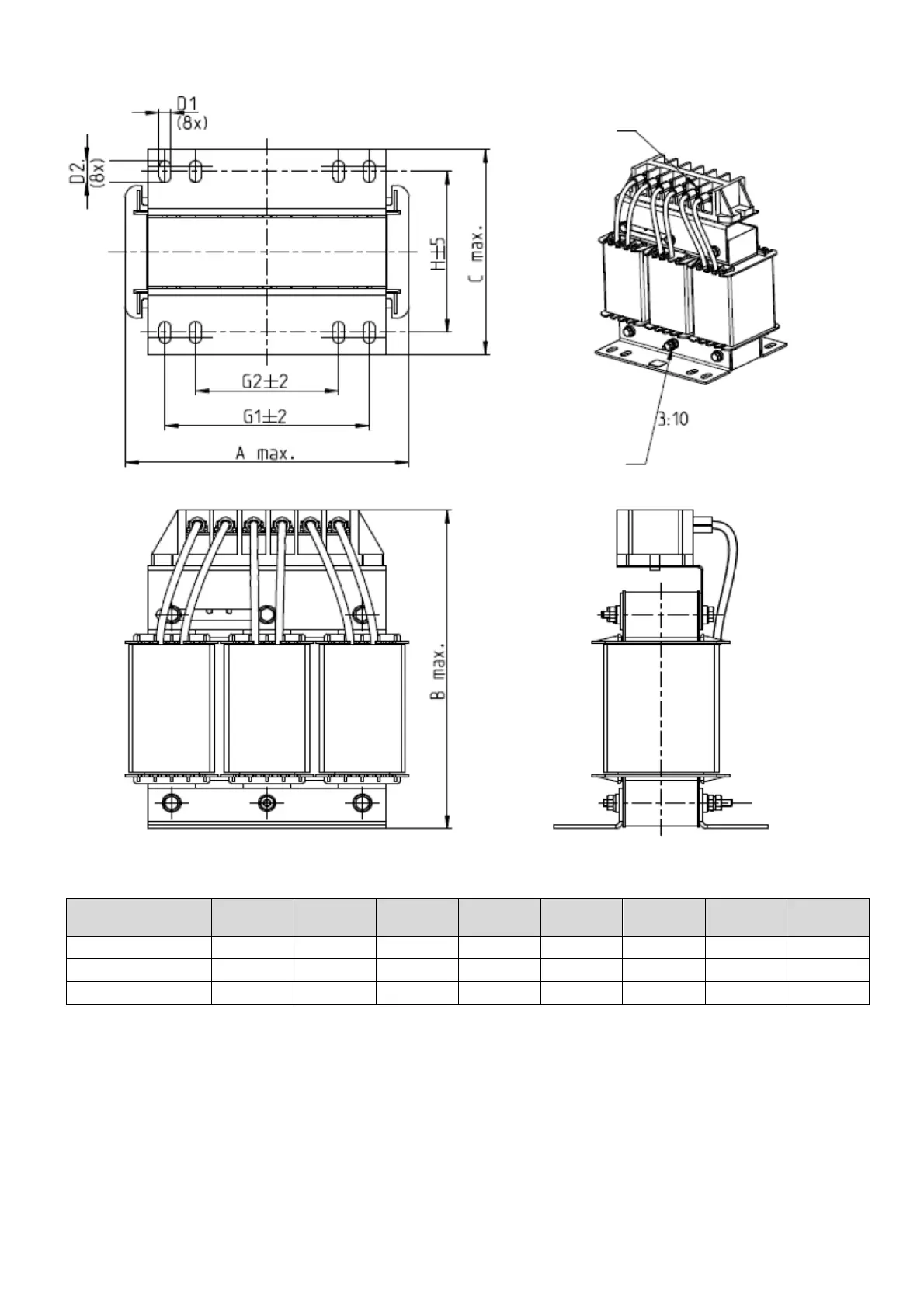

Figure 7-8
Unit: mm
AC Input Reactors
Delta part #
A B C D1*D2 H G1 G2 PE D
DR025AP507 130 195 100 6*12 65 80.5 60 M4
DR033AP320 130 195 100 6*12 65 80.5 60 M4
DR049AP215 160 200 125 6*12 90 107 75 M4
Table 7-26
PE bolt
Torque: 11.2–13.3 kg-cm /
(9.7–11.5 lb-in) /
(1.1–1.3 Nm)
Installing Screw M5
Screw length must
not interfere with
the mounting holes
