Chapter 7 Optional AccessoriesC2000 Plus
7-60
690V
kW HP
Rated
Current
Without AC reactor With AC reactor
Model
Normal
Duty
(Arms)
Shielded
Cable
(meter)
Non-shielded
Cable (meter)
Shielded
Cable
(meter)
Non-shielded
Cable (meter)
VFD4500C63B-00/21
450 600
385 20 45 90 100
VFD5600C63B-00/21
560 745
465 20 45 75 90
VFD6300C63B-00/21
630 850
675 20 45 75 90
NOTE:
1. The table above is the suggested cable length of EMC built-in models operating under surge
voltage influencing. To pass the noise emission and Electromagnetic interference certification, the
cable length should follow chapter 7-7 instruction.

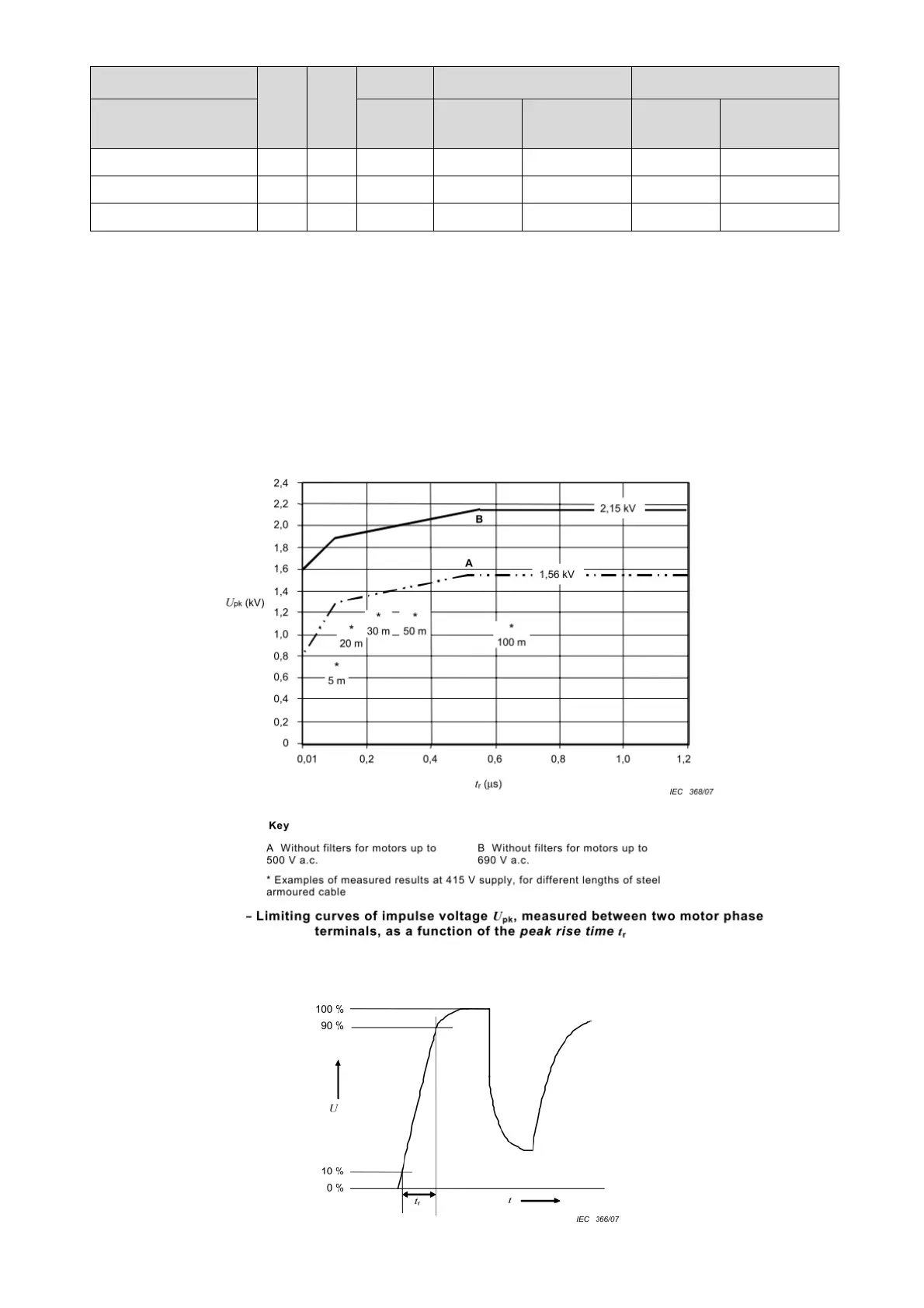

2. 690V output motor cable length needs to comply with IEC 60034-25
Requirements on insulation level of Curve B motor
The t
r
is defined as:
Table 7-67
Figure 7-35
Fi
ure 7-36
