Delta VFD040C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-91
Capacitor Filter (Applicable to 230V/ 460V models)
Capacitor Filter is a simple filter accessory, installed to provide simple filtering and eliminating interference.
Installation
Installed on the input side, connect each cable on terminal R, S, T and PE. As shown in the figure below.
(Please do NOT install the capacitor filter on the output side.)
VFD
R
S
T
U
V
W
PE
Motor
PE
Grid
Capacitor
Filter

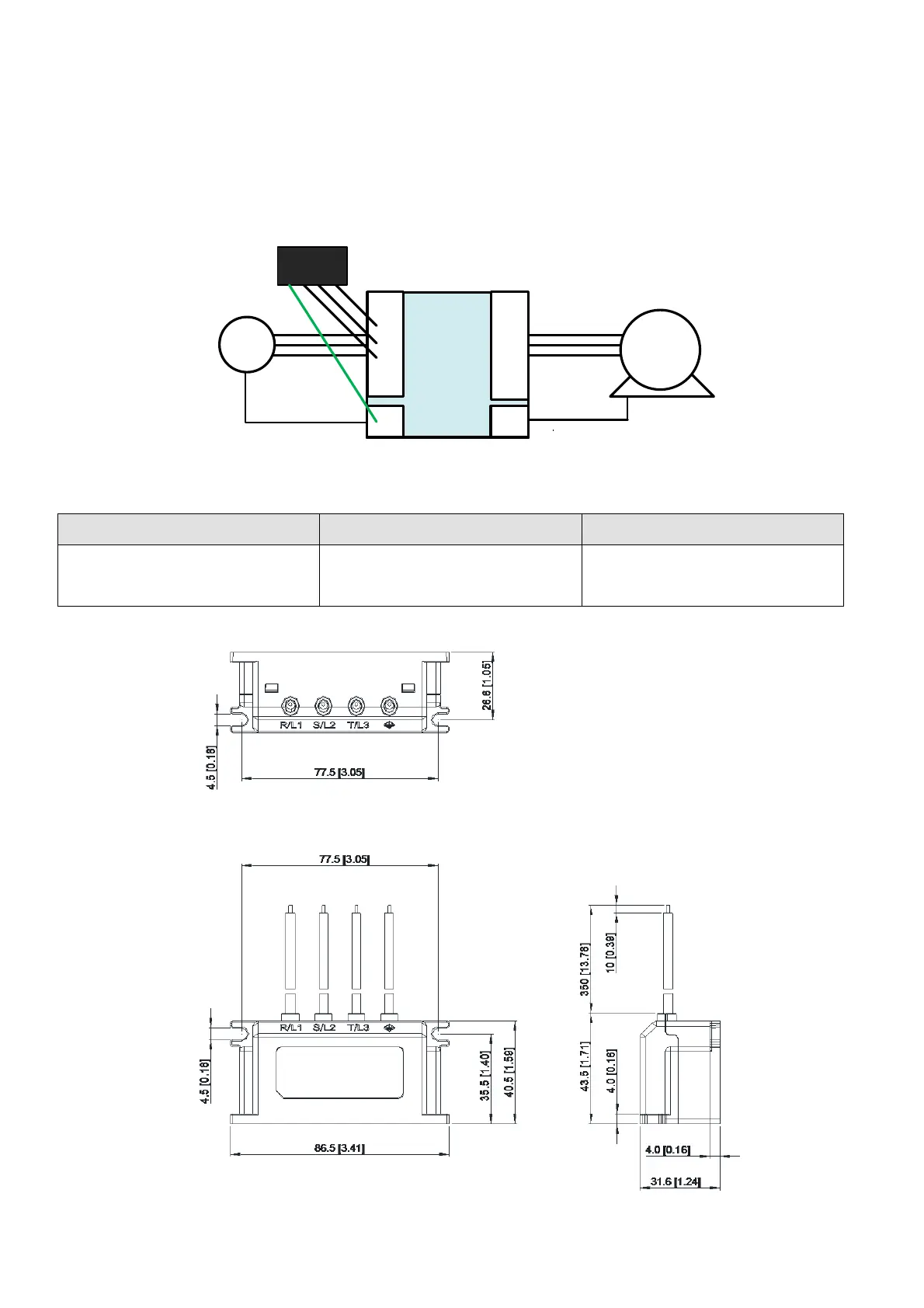

Figure 7-78
Model / Specification
Model Capacitance of the capacitor Temperature
CXY101-43A
Cx：1uF±20%
Cy：1uF±20%
-40 – +85°C
Table 7-83
Figure 7-79
Unit: mm (inch)
