Chapter 7 Optional AccessoriesC2000 Plus
7-126

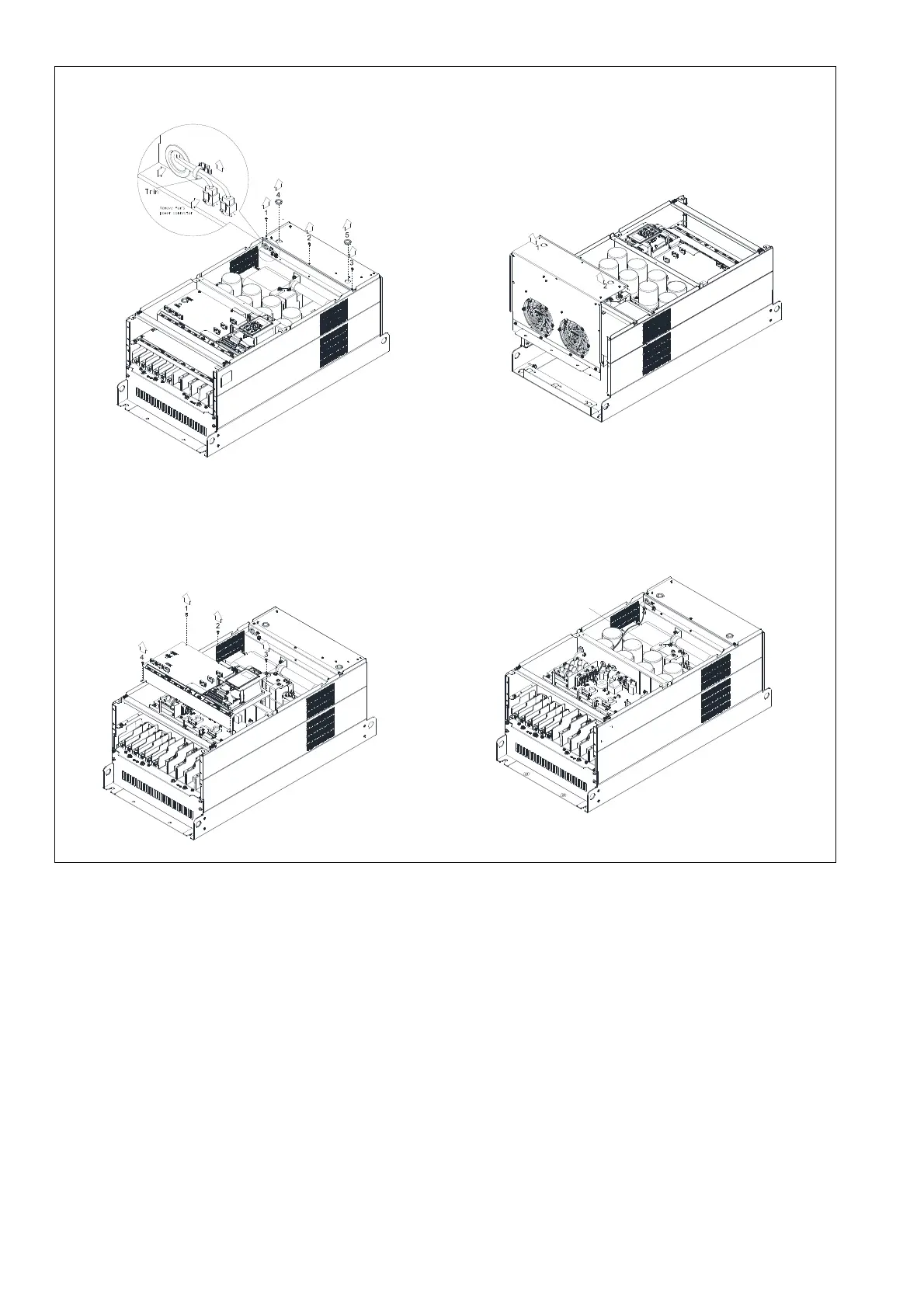

4. Loosen screw 1–3 and remove the protective ring.
Screw torque: 14–16 kg-cm / (12.2–13.9 Ib-in.) /
(1.4–1.6 Nm)
Figure 7-175
5. Lift the fan by putting your finger through the
protective holes, as indicates in 1 and 2 in the
figure below.
Figure 7-176
6. For old drives switching new fans, follow below
steps:
Loosen screws 1–5, remove the cover (as the figure
shown below) Screw M4 torque: 14–16 kg-cm /
(12.2–13.9 lb-in) / (1.4–1.6 Nm)
Figure 7-177
7. Add cable model 3864483201 to connect the
power board and fan connector. (The cable
3864483201 goes with the fan as accessory)
Figure 7-178
Cable 3864483201
To Next Page
