Delta VFD040C43A-21 User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-133

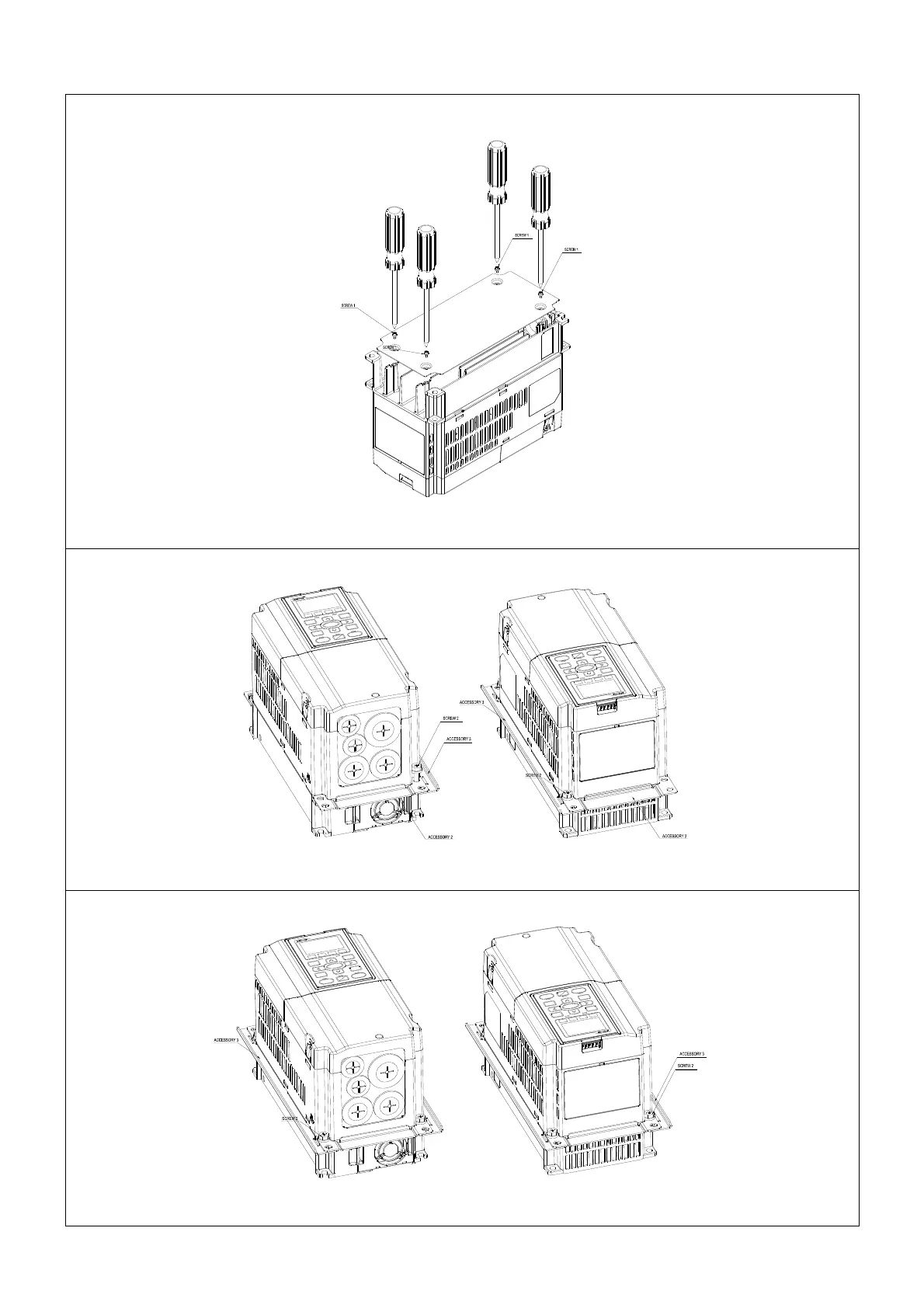

“MKC-AFM1” Installation
1. Install accessory 1 by tightening 4 of the screw 1 (M3, as shown in the figure below). Screw torque: 6–8 kg-cm
/ (5.21–6.94 Ib-in.) / (0.6–0.8 Nm)
Figure 7-197
2. Install accessory 2 & 3 by tightening 2 of the screw 2 (M6, as shown in the figure below). Screw torque: 25–30
kg-cm / (21.7–26 Ib-in.) / (2.5–2.9 Nm)
Figure 7-198
3. Install accessory 2 & 3 by tightening 2 of the screw 2 (M6, as shown in the figure below). Screw torque: 25–30
kg-cm / (21.7–26 Ib-in.) / (2.5–2.9 Nm)
Figure 7-199
