Chapter 7 Optional AccessoriesC2000 Plus
7-147
Frame F
Applicable models
VFD900C23A-00; VFD900C23A-21; VFD1320C43A-00; VFD1320C43A-21; VFD1600C43A-00;
VFD1600C43A-21; VFD1600C63B-00; VFD1600C63B-21; VFD2000C63B-00; VFD2000C63B-21

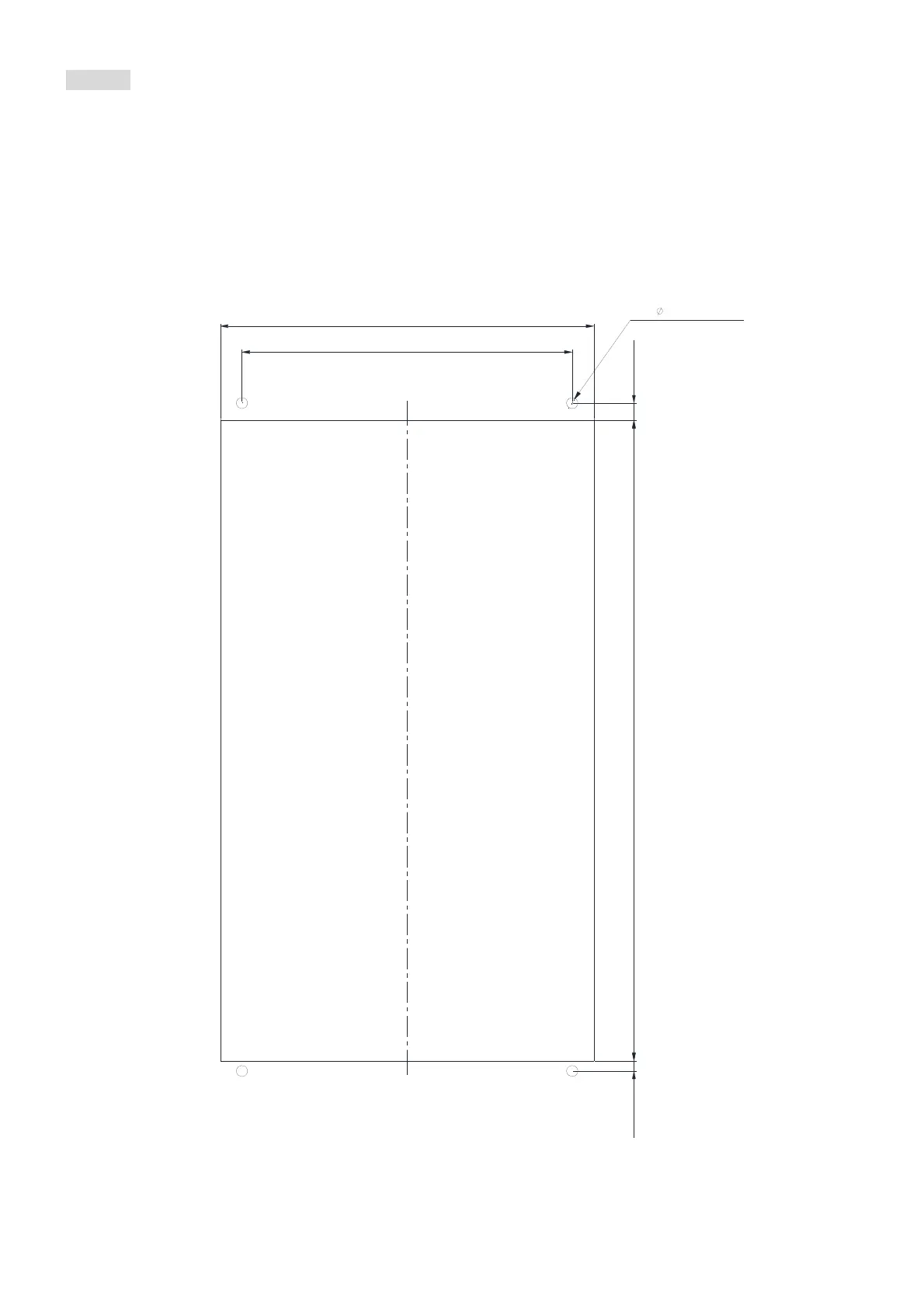

Hole sites and dimension Unit: mm (inch)
740 [29.13]12 [0.47]
380 [14.96]
430 [16.93]
20 [0.79]
M12*P1.75(4X)
OR
13.0[0.51](4X)
Figure 7-222
