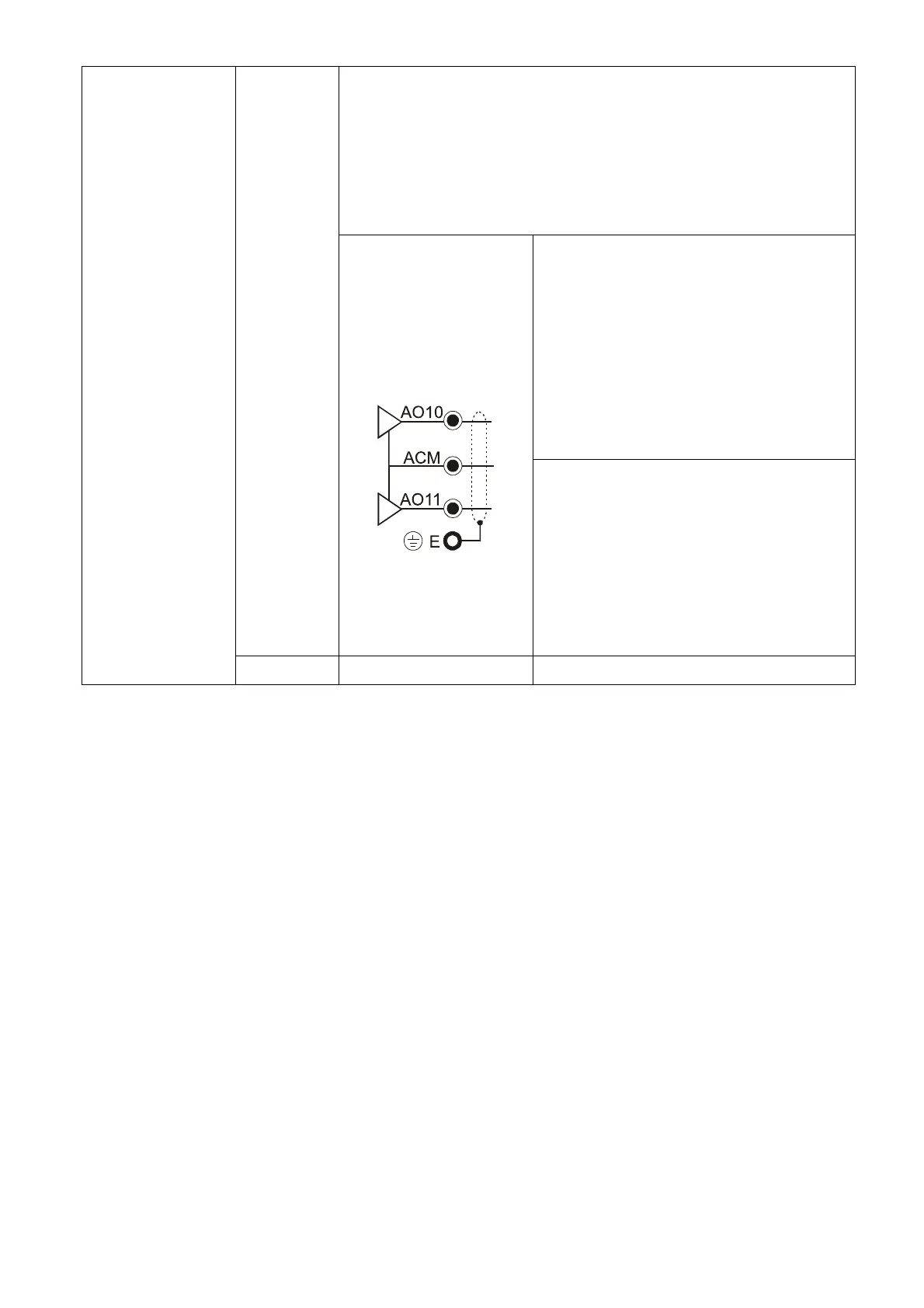

AO10, AO11
Refer to Pr.14-12–Pr.14-13 for function selection (output), and
Pr.14-36–Pr.14-37 for mode selection.
There are two sets of AO port, SSW1 (AO10) and SSW2 (AO11),
which can be switched to Voltage or Current mode.
Voltage mode: Output 0–10 V
Current mode: Output 0–20 mA / 4–20 mA
Multi-function analog
output
AVO:
0–10 V Max. output current 2 mA, Max.
load 5 kΩ
Output current: 2 mA max
Resolution: 0–10 V corresponds to Max.
operation frequency
Switch: AO10 / AO11 Switch, default 0–
10 V
ACO:
0–20 mA Max. Load 500 Ω
Output current: 20 mA max
Resolution: 0–20 mA / 4–20 mA
corresponds to Max. operation frequency
Switch: AO10 / AO11 Switch, default 0–
10 V
ACM Analog Signal Common Common for analog terminals
