Chapter 1 IntroductionC2000 Plus
1-20
Frame G
G1: VFD1850C43A-00; VFD2000C43A-00; VFD2200C43A-00; VFD2500C43A-00; VFD2500C63B-00;
VFD3150C63B-00
W1
W
H2
H1
H3
D
S3

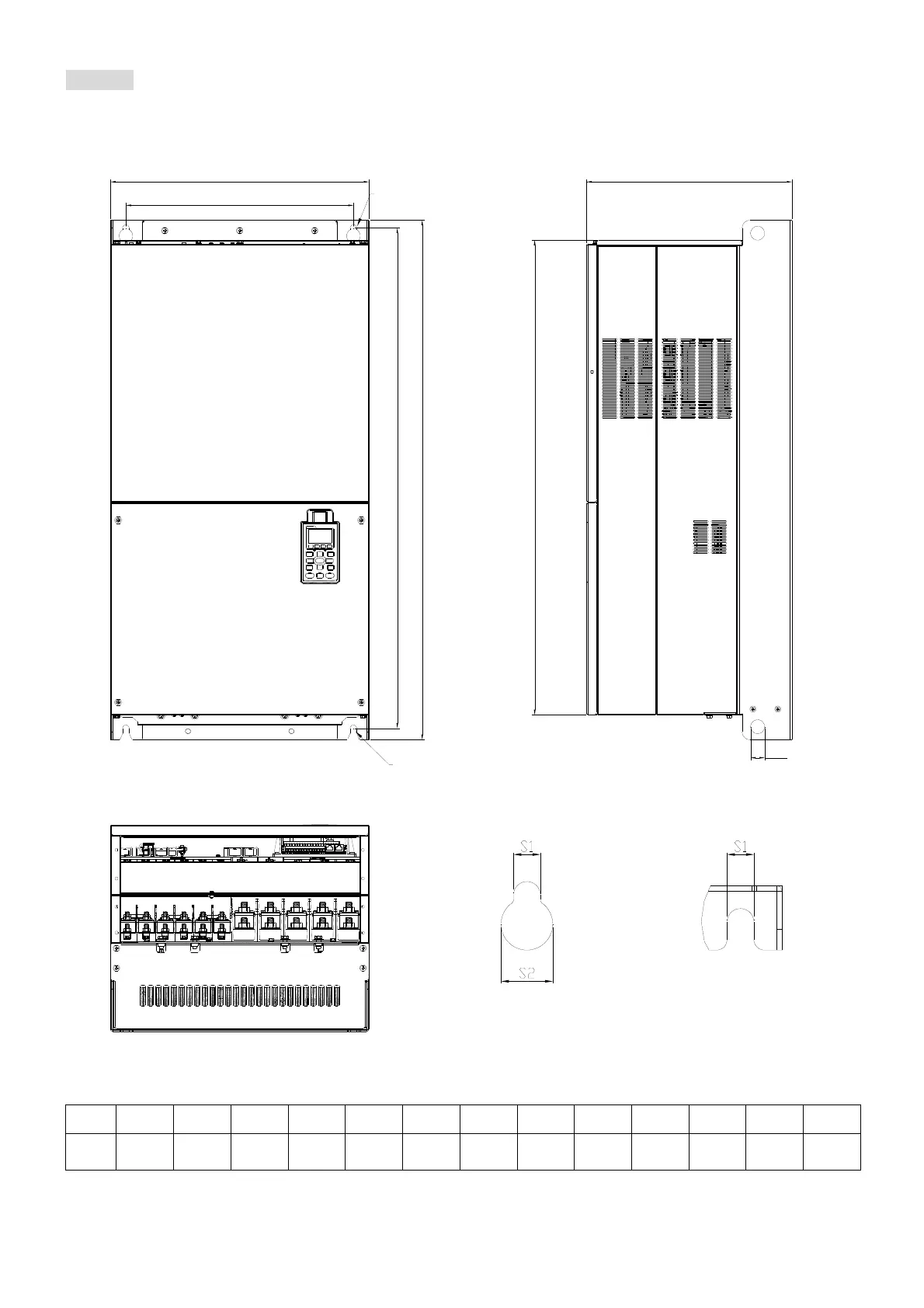

Figure 1-26
Unit: mm [inch]
Frame W H D W1 H1 H2 H3 S1 S2 S3 Ф1 Ф2 Ф3
G1
500.0
[19.69]
-
397.0
[15.63]
440.0
[217.32]
1000.0
[39.37]
963.0
[37.91]
913.6
[35.97]
13.0
[0.51]
26.5
[1.04]
27.0
[1.06]
- - -
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
See Detail B
See Detail A
