Delta VFD040C43A-21 User Manual

Chapter 9 Specification C2000 Plus
9-19
 575V／690V models
Pr.00-16 = 2, light duty:
Pr.00-11 = 0 (IMVF)
= 1 (IMVFPG)
= 2 (IM SVC, Pr.05-33 = 0)
= 3 (IMFOCPG)
50
60
70
80
90
100
110
2 3 4 5 6 7 8 9 10
Drive's Rated Output Current (%)
Fc (kHz)
690V Light Duty
VFD015~150C53A-21
VFD185~550C63B-xx
VFD750~2000C63B-xx
VFD2500~6300C63B-xx
Figure 9-9

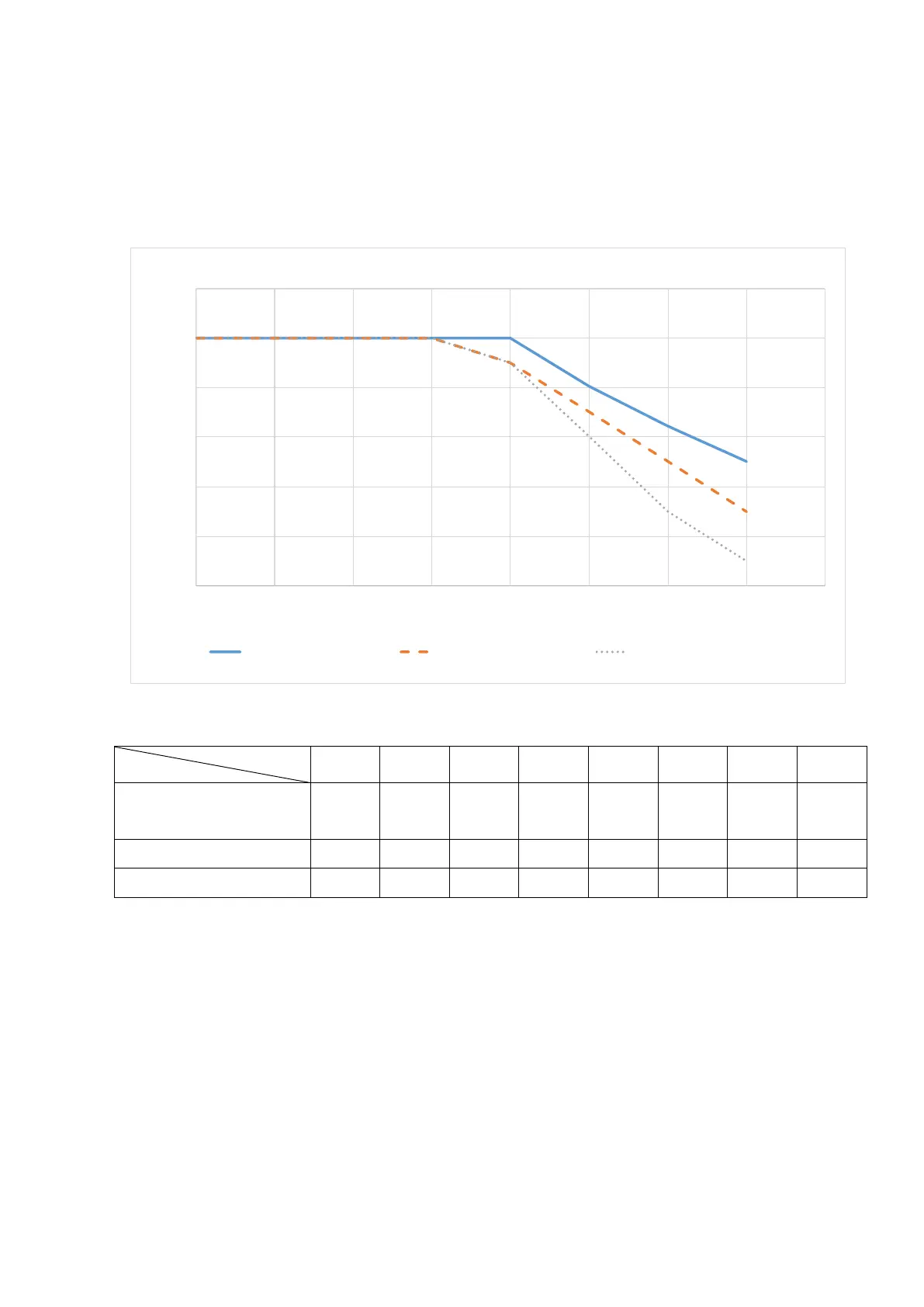

The rated output current derating (%) of 575V / 690V models in light duty for different carrier frequencies:
Fc (kHz)
Model No.
2 3 4 5 6 7 8 9
VFD015~150C53A-21
VFD185~550C63B-xx
100 100 100 100 100 90 82 75
VFD750~2000C63B-xx 100 100 100 100 95 85 75 65
VFD2500~6300C63B-xx 100 100 100 100 95 80 65 55
Table 9-22
