Chapter 3 UnpackingC2000 Plus
3-3

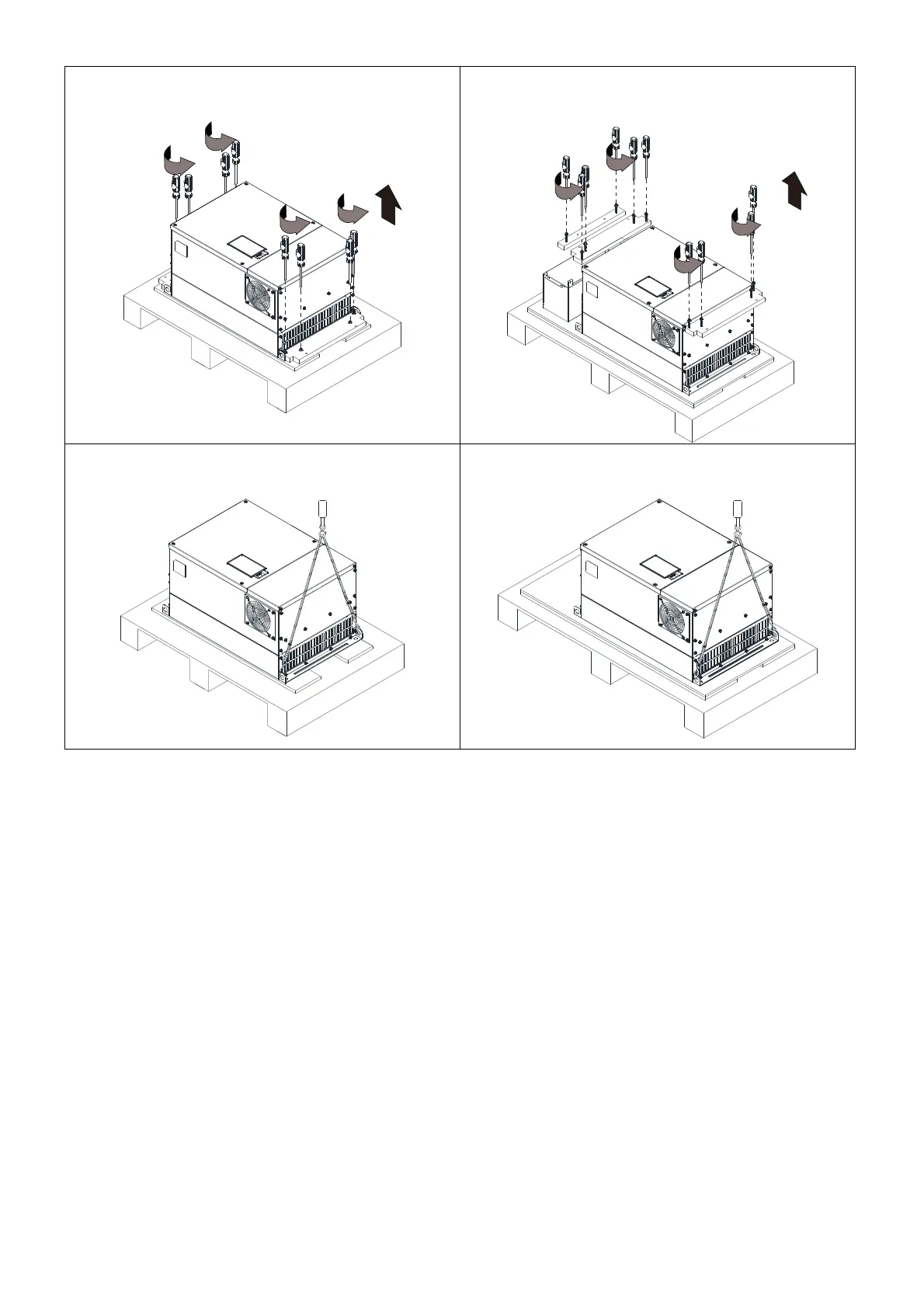

Loosen the eight screws fasten the drive on the
pallet, and then remove the wood plate.
Loosen the ten screws fasten the drive on the
pallet, and then remove the wood plates and the
conduit box.
Lift the drive by hooking the lifting hole. It is now
ready for installation.
Lift the drive by hooking the lifting hole. It is now
ready for installation.
Figure 3-4 Figure 3-8
Figure 3-7
Figure 3-3
To Next Page
