Chapter 3 UnpackingC2000 Plus
3-5

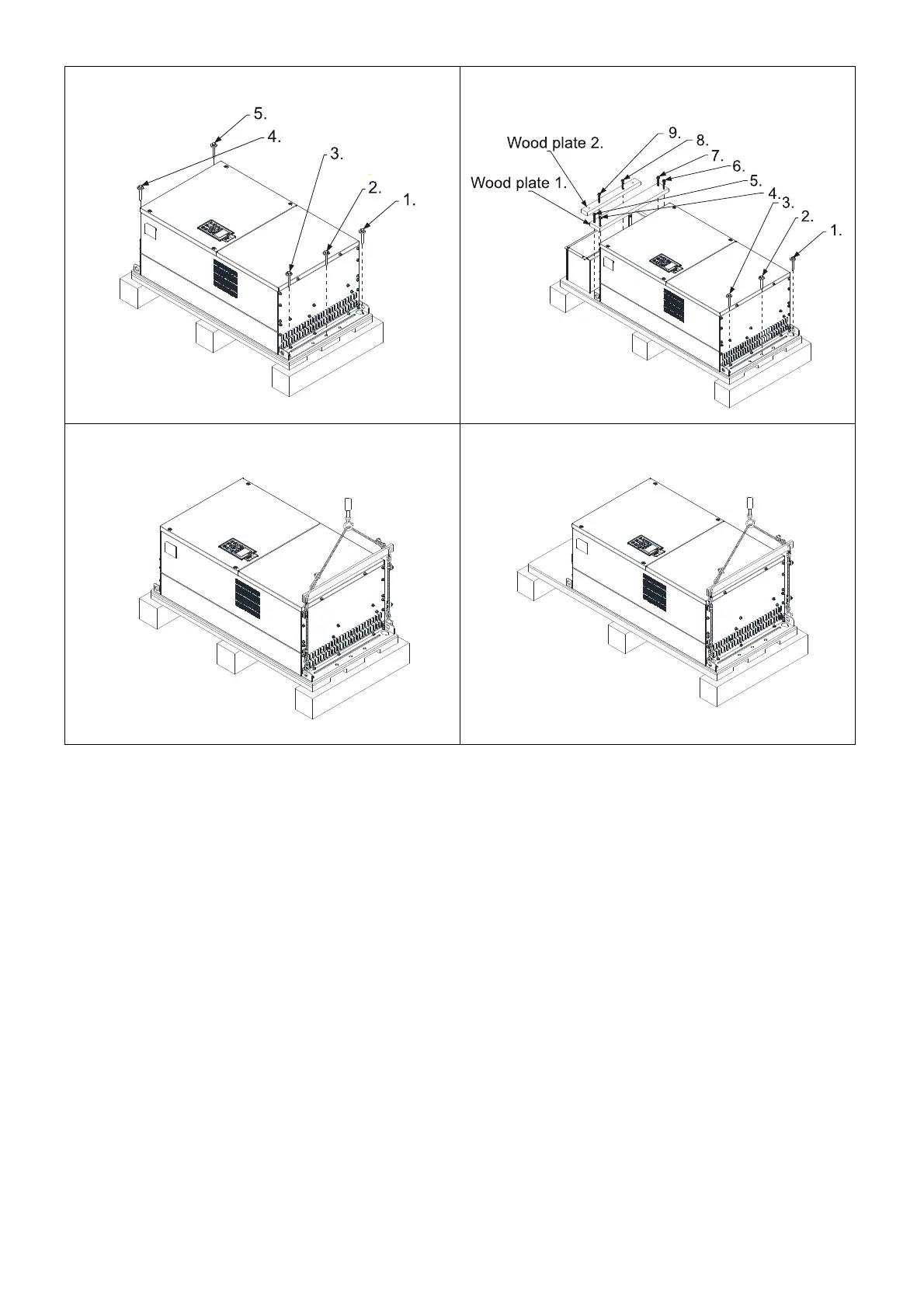

Loosen the five screws fasten the drive on the
pallet, see the figure below.
Loosen the five screws fasten the drive on the
pallet, and then remove the wood plates and
conduit box.
Lift the drive by hooking the lifting hole. It is now
ready for installation.
Lift the drive by hooking the lifting hole. It is now
ready for installation.
Figure 3-12 Figure 3-16
Figure 3-11
Figure 3-15
