Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-01-6

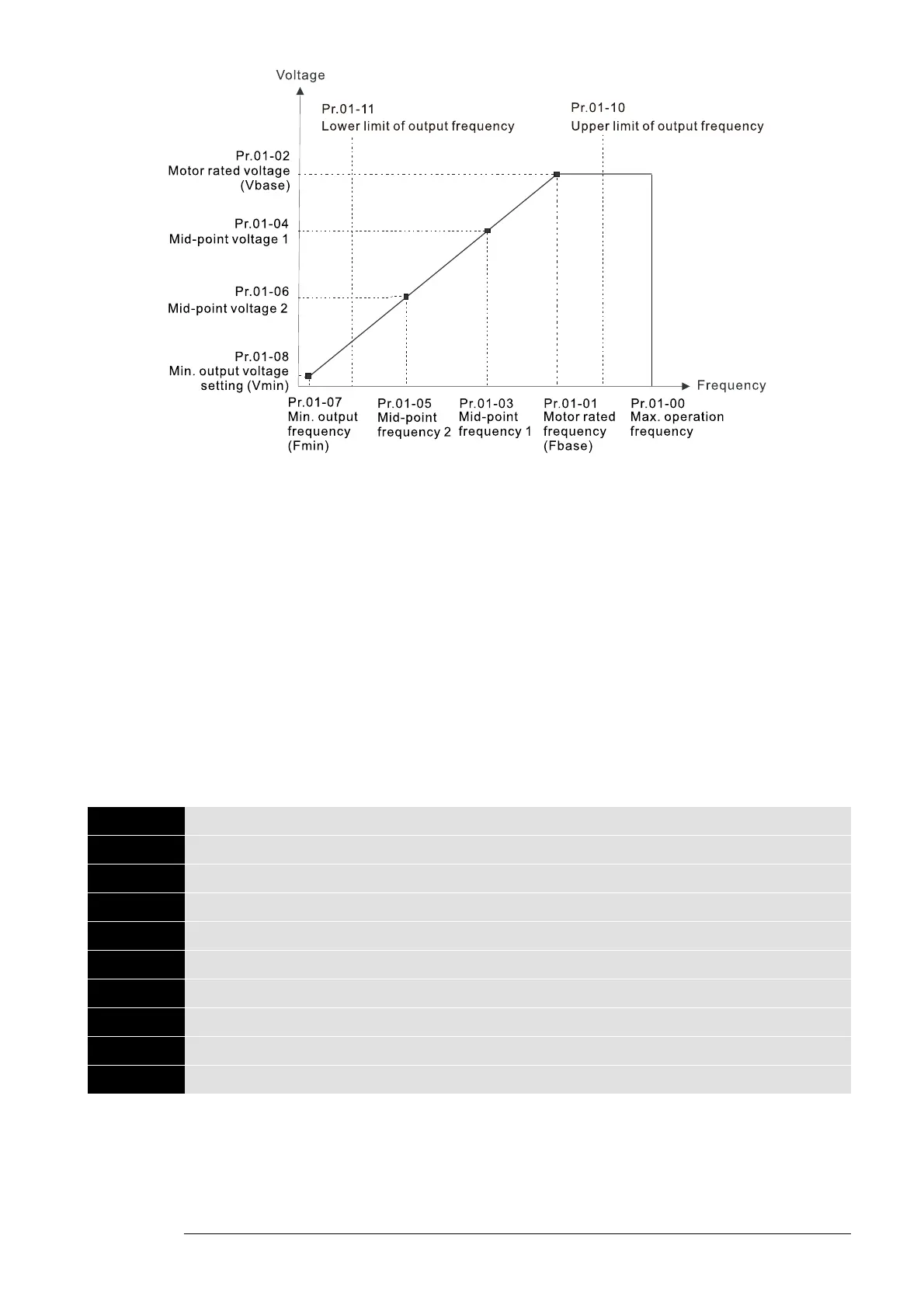

When the drive starts, it operates according to the V/F curve and accelerates from the minimum
output frequency (Pr.01-07) to the setting frequency. It is not limited by the lower output frequency
settings.
Use the frequency upper and lower limit settings to prevent operator misuse, overheating caused
by the motor’s operating at a too low frequency, or mechanical wear due to a too high operation
frequency.
If the frequency upper limit setting is 50 Hz and the frequency setting is 60 Hz, the maximum
operation frequency is 50 Hz.
If the frequency lower limit setting is 10 Hz and the minimum operation frequency setting (Pr.01-
07) is 1.5 Hz, then the drive operates at 10 Hz when the Frequency command is higher than Pr.01-
07 but lower than 10 Hz. If the Frequency command is lower than Pr.01-07, the drive is in ready
status without output.
01-12
Acceleration Time 1
01-13
Deceleration Time 1
01-14
Acceleration Time 2
01-15
Deceleration Time 2
01-16
Acceleration Time 3
01-17
Deceleration Time 3
01-18
Acceleration Time 4
01-19
Deceleration Time 4
01-20
JOG Acceleration Time
01-21
JOG Deceleration Time
Default: 10.00
The default of 30HP and above
models: 60.00 / 60.0
Settings Pr.01-45 = 0: 0.00–600.00 sec.
Pr.01-45 = 1: 0.00–6000.0 sec.
