Chapter 3 Unpacking
C2000 Plus
3-9
Lift the drive by hooking the lif
ting hole. It is now ready for inst
allation.

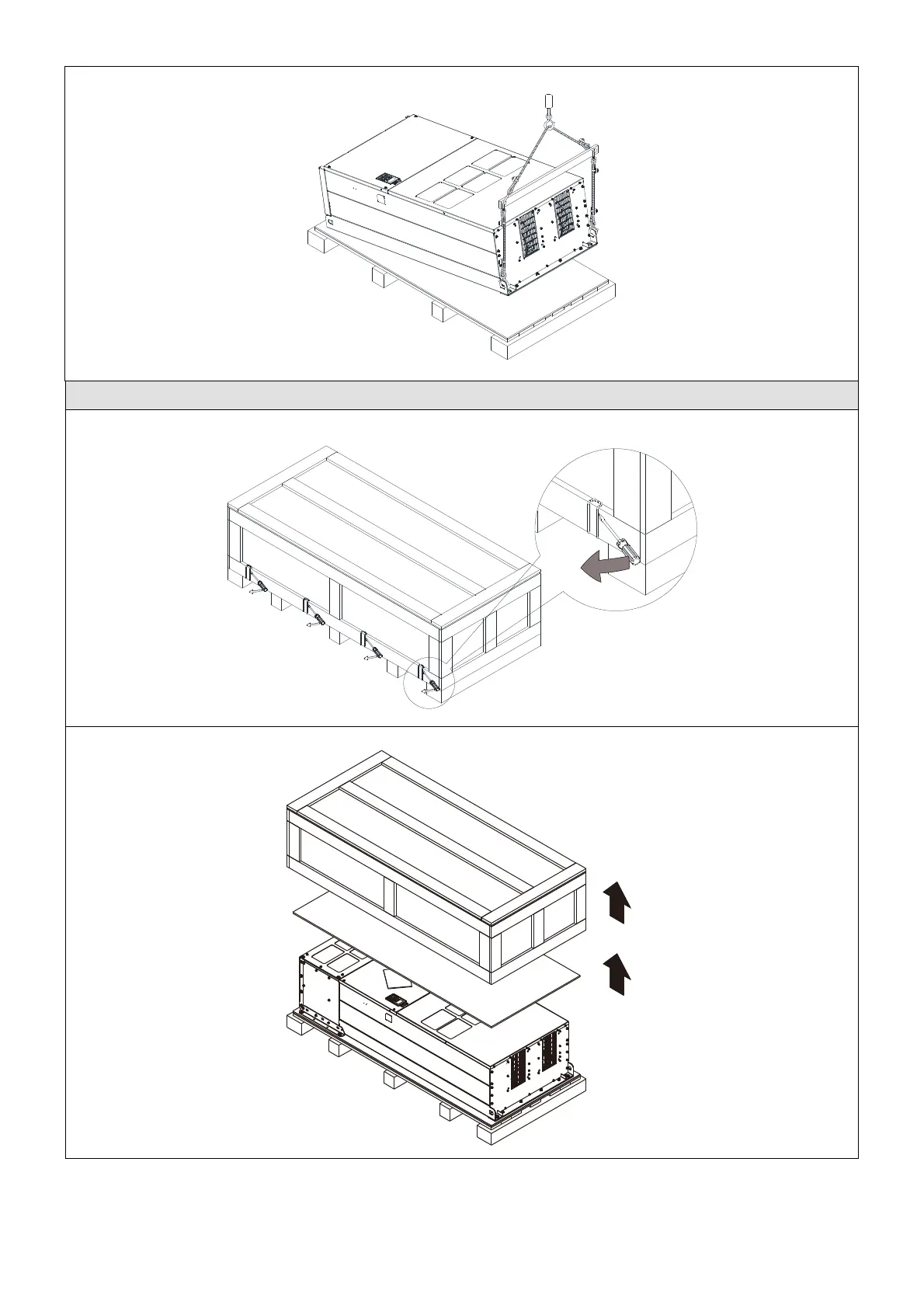

Unpacking 2 (VFDXXXC43C-21)
Remove the eight buckles fixed on the crate with a flat-head screwdriver
, see the figure below
.
Remove the cover
, take out the EPEs and the manual.
Figure 3-28
Figure 3-29
Figure 3-30
51
53
