Chapter 3 UnpackingC2000 Plus
3-15

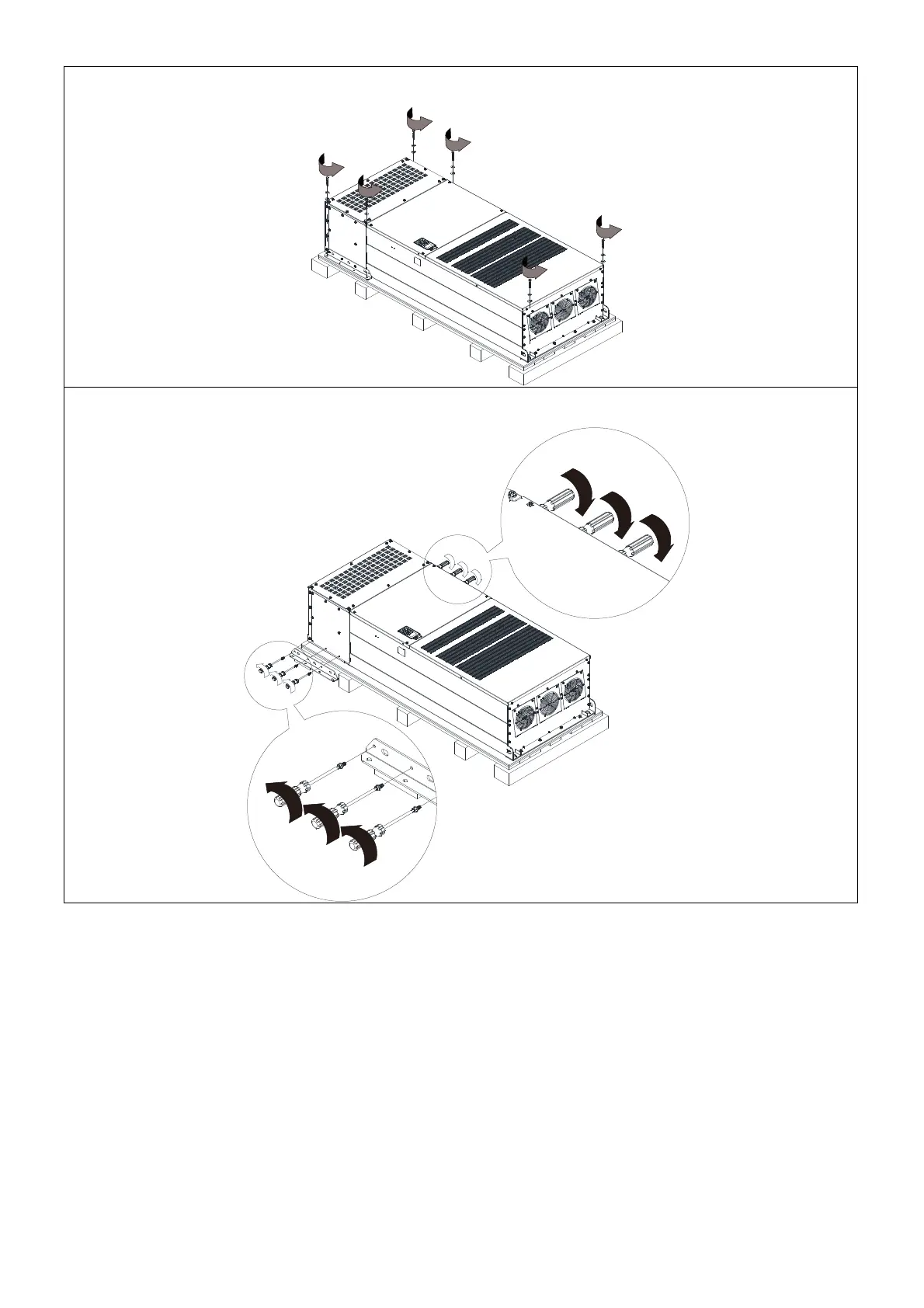

Loosen the six screws fasten the drive on the pallet, and then remove six metal washers and six plastic
washers. See the figure below.
Loosen the six M6 screws and the iron plates (see the figure below). You can use the removed screws
and iron plates to fix the drive from the outside.
Figure 3-45
Figure 3-46
