Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-06-22
Status 3: The drive is in STOP; Pr.06-48 ≠ 0; Pr.07-02 ≠ 0
When the drive starts, it executes Pr.06-48 first, and then executes Pr.07-02 (DC brake). The DC
brake current level in this state includes two parts: one is 20 times the Pr.06-47 setting value in
Pr.06-48 setting time; the other is the Pr.07-02 setting value in Pr.07-01 setting time. The total DC
brake time T = Pr.06-48 + Pr.07-02.

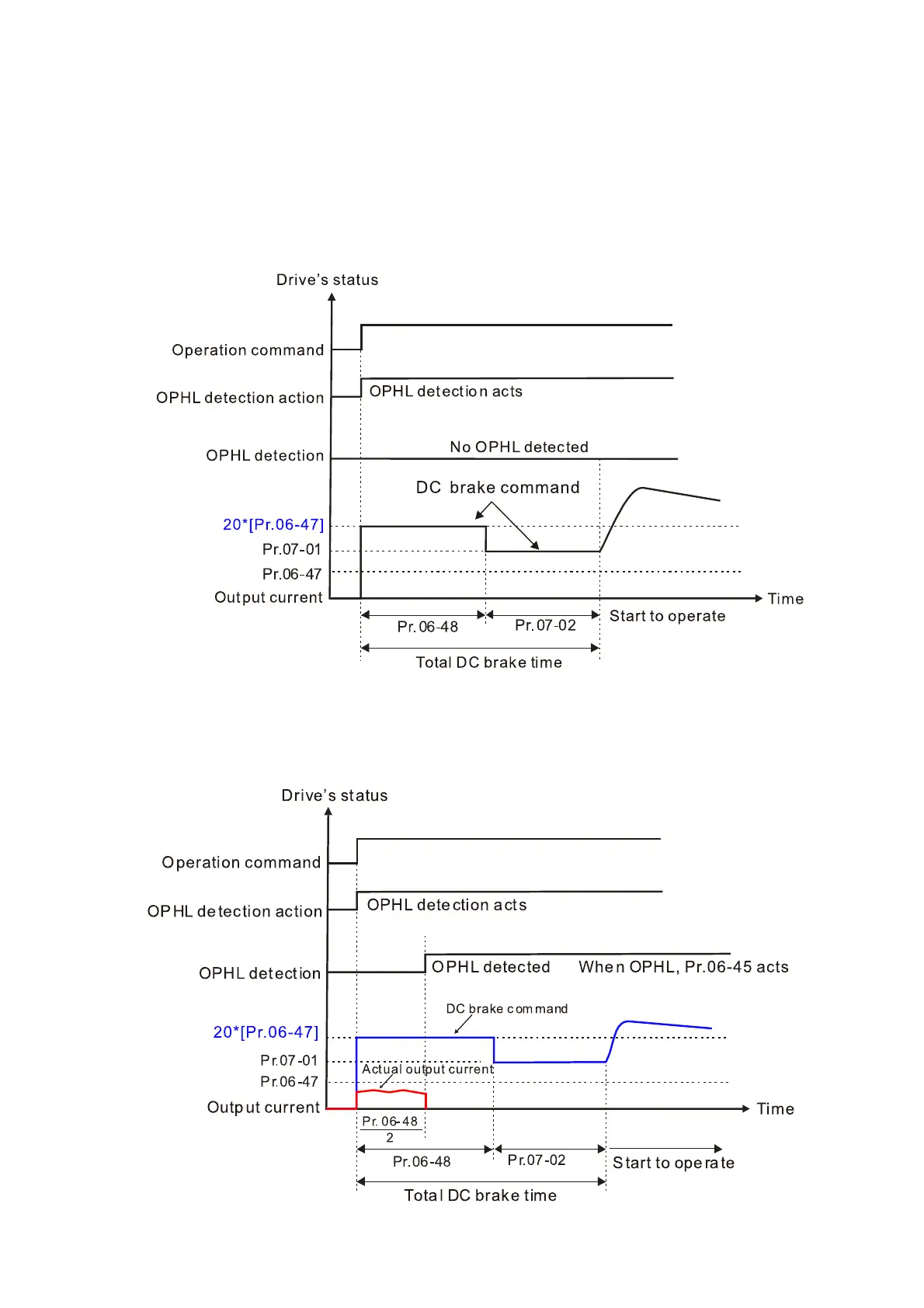

Status 3-1: Pr.06-48 ≠ 0, Pr.07-02 ≠ 0 (No OPHL detected before operation)
Status 3-2: Pr.06-48≠0, Pr.07-20≠0 (OPHL detected before operation)
In this period, if an OPHL occurs within the time for Pr.06-48, the drive executes the Pr.06-45
setting after the drive starts counting for half the time of Pr.06-48.
