Delta VFD040C43A-21 User Manual

Chapter 4 WiringC2000 Plus
4-5

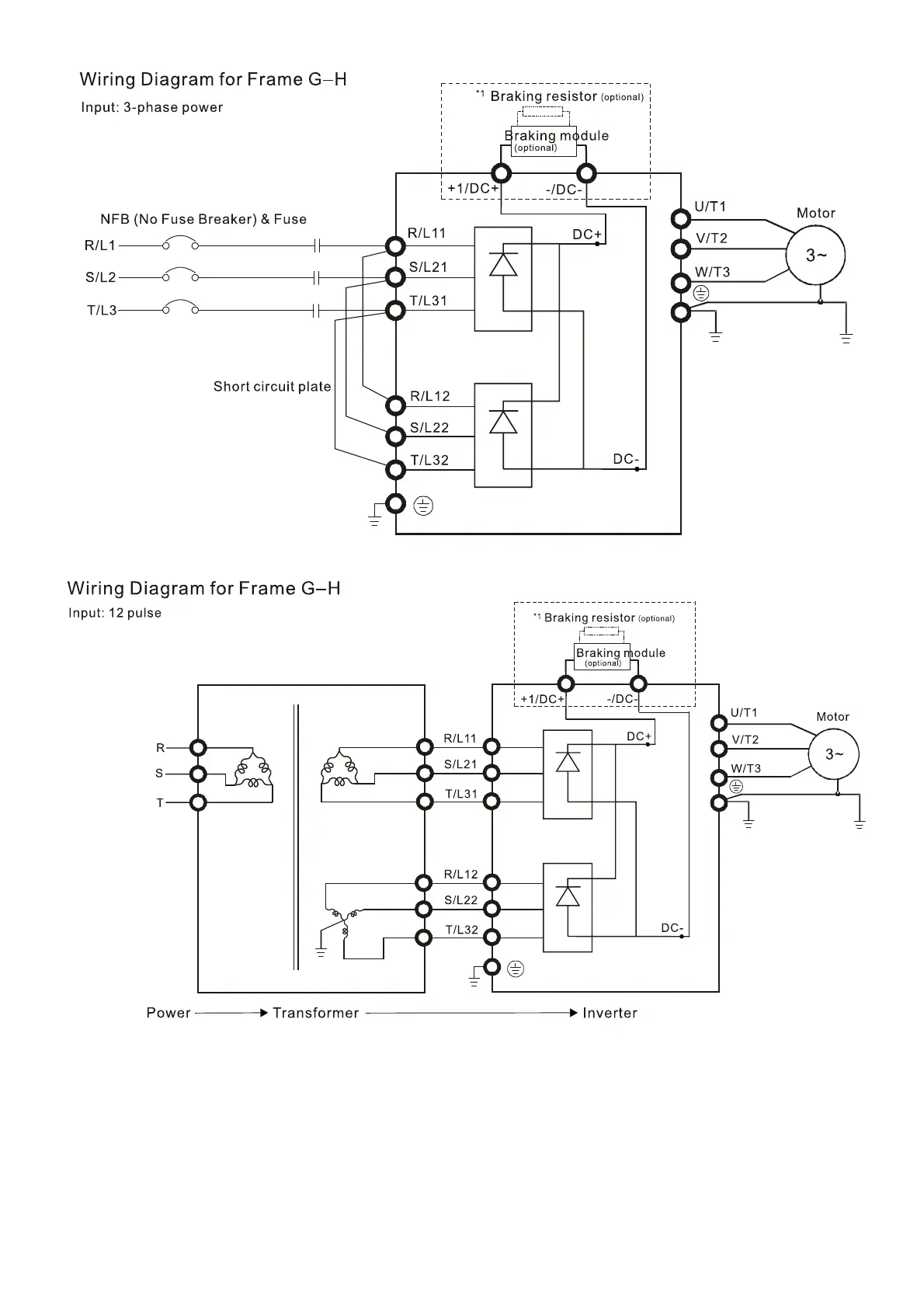

Figure 4-4
Figure 4-5
NOTE:
1. *1 means that refer to Section 7-1 for brake units and resistors selection.
2. When wiring for 12 Pulse Input, strictly follow above wiring diagram.
