Chapter 9 Digital KeypadVFD-ED

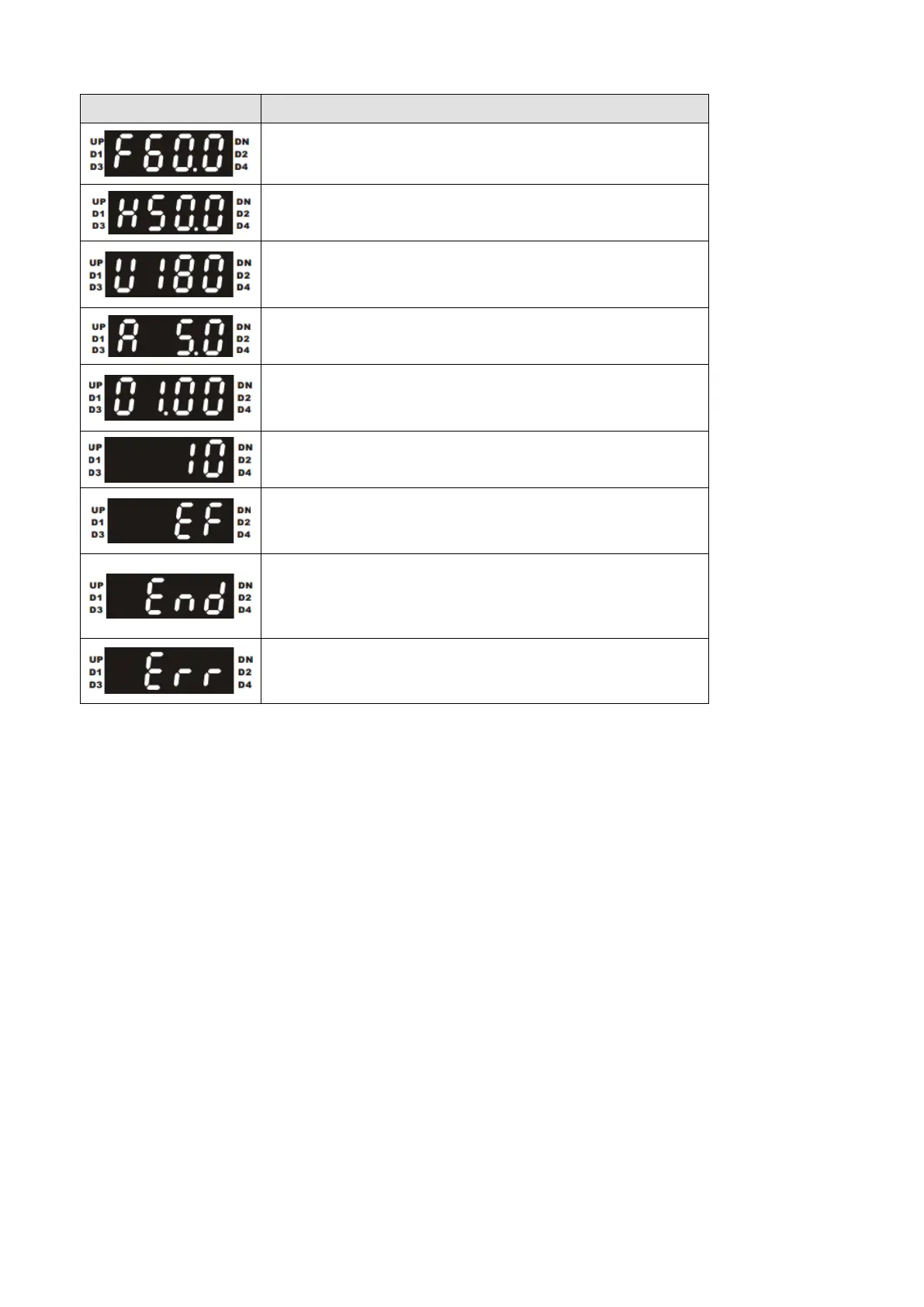

Description of Displayed Functions
Displayed Function Description
Displays the VFD-ED frequency setting.
Displays the actual frequency output from the VFD-ED to
the motor.
Displays the user-defined value in Pr.00-04.
Displays the current (amperes).
Displays the selected parameter.
Displays the value in a parameter.
Displays the external fault.
Displays “End” for approximately one second (as shown
in the left figure) if the data has been accepted and
automatically stored in the register.
Displays if the setting data is not accepted or data value
exceeds the allowed range.
