Chapter 5 Control Terminals | VFD-ED
5-1 Remove the Cover before Wiring
Remove the top cover before wiring the multi-function input and output terminals
NOTE: The motor drives’ figures shown below are for reference only. The actual motor drives may look
different.
Frame B, C and D

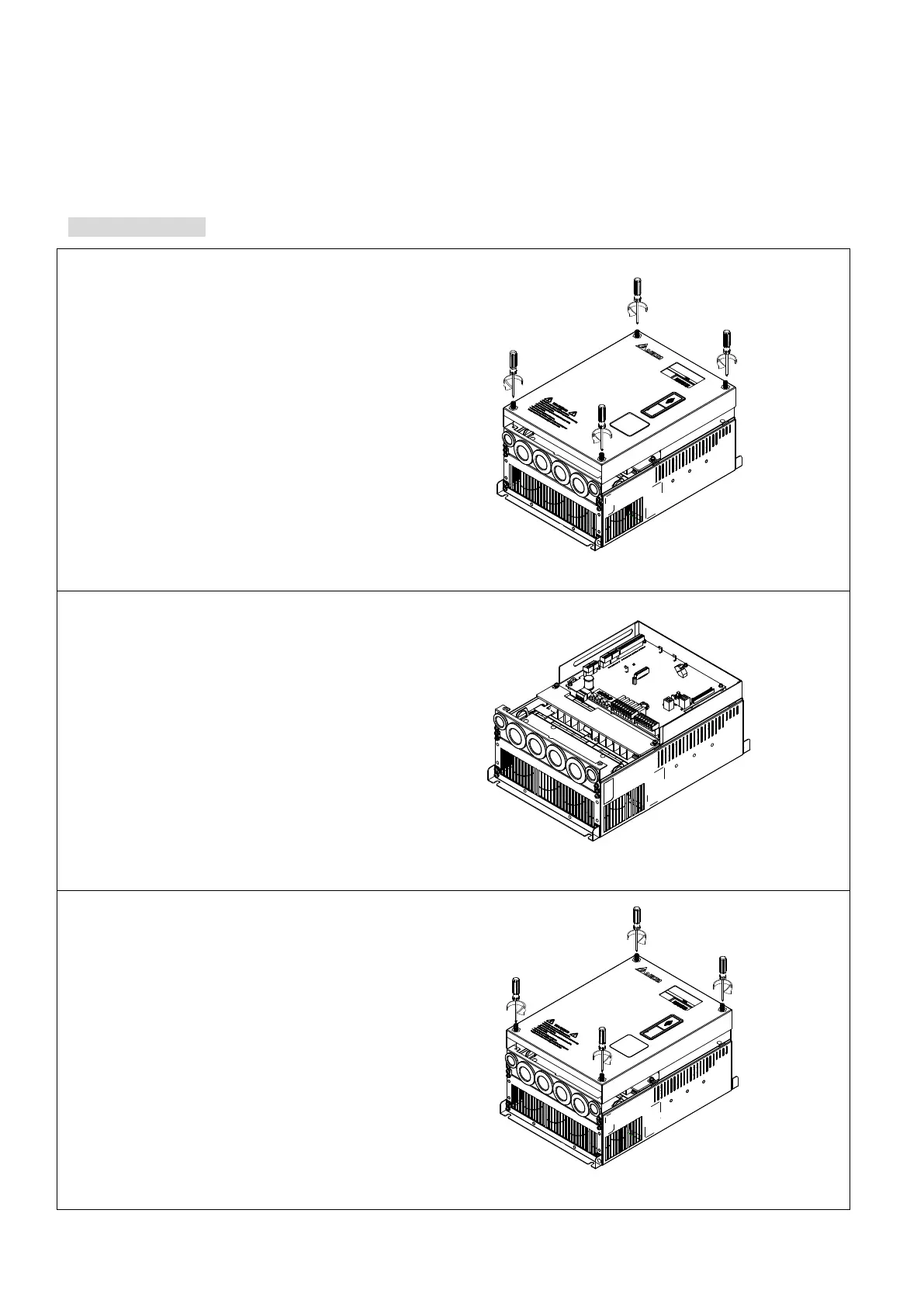

Step 1: Loosen the four screws
Figure 5-1
Step 2: Remove the top cover
Figure 5-2
Step 3: Attach the top cover, and then
tighten the four screws using
torque force 15 kgf-cm.
Figure 5-3
