Chapter 5 Control Terminals | VFD-ED
5-2 Control Terminal Specifications

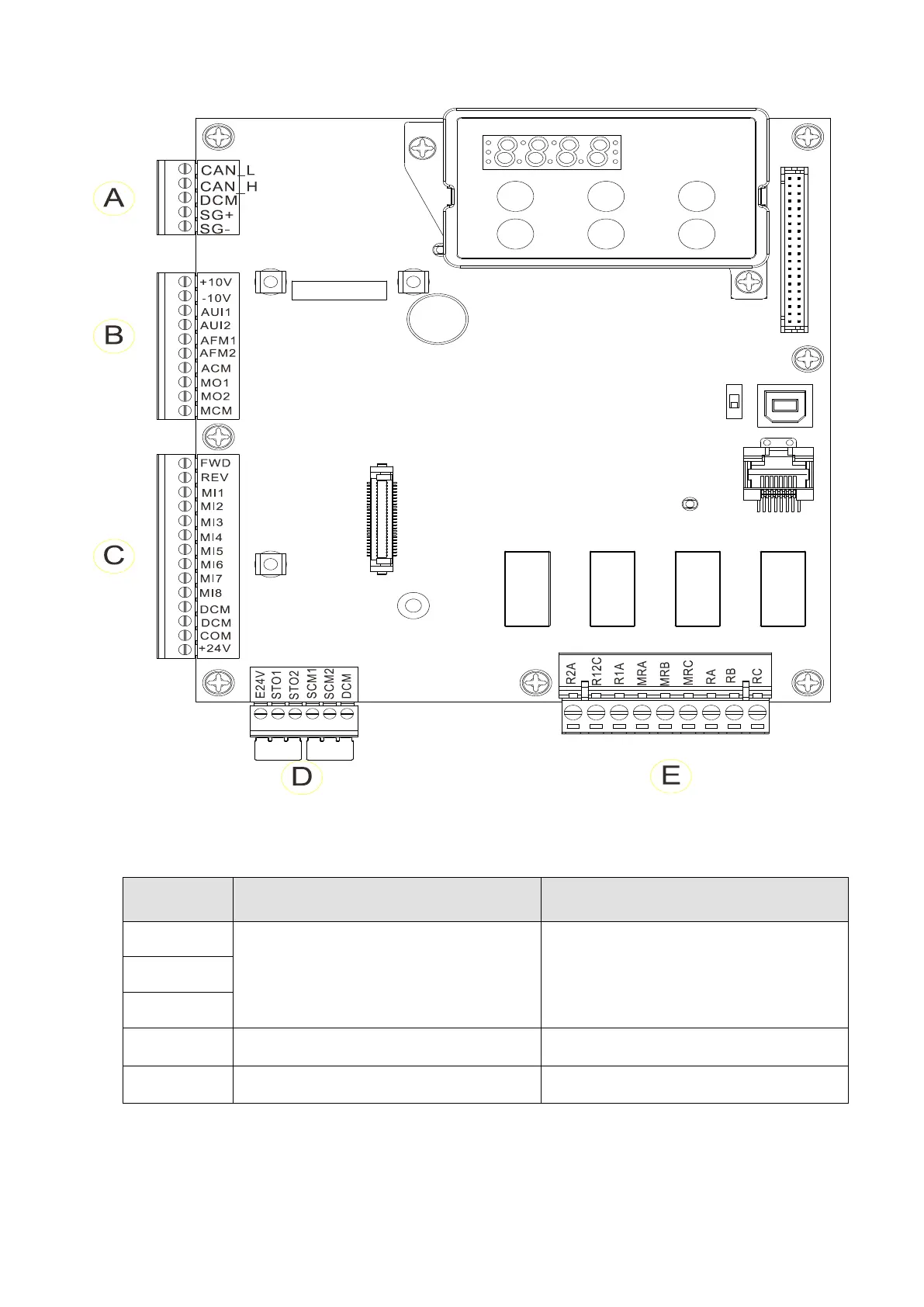

Figure 5-7
Wire Gauge Torque Force (±10 %)
A
0.2–2.5 mm² (28–14 AWG) 2 kg-cm / (1.7 lb-in.) / (0.20 Nm)
B
C
D - 2 kg-cm / (1.7 lb-in.) / (0.20 Nm)
E 0.2–4.0 mm² (28–12 AWG) 5.2 kg-cm / (4.5 lb-in.) / (0.51 Nm)
NOTE: To comply with UL standards, use copper wires in the installation that
are able to withstand 600V, 75ºC environments.
Table 5-1
To Next Page
