Delta VFD055ED43S User Manual

Chapter 9 Digital KeypadVFD-ED
9-14
USB/RS-485 Communication Interface-IFD6530
Refer to Chapter 6 Optional Accessories for more details.
TPEditor
Download
TPEditor software at Delta website. Select TPEditor version 1.60
or above. Refer to the instructions for TPEditor in <15. PC Link> in this
section.

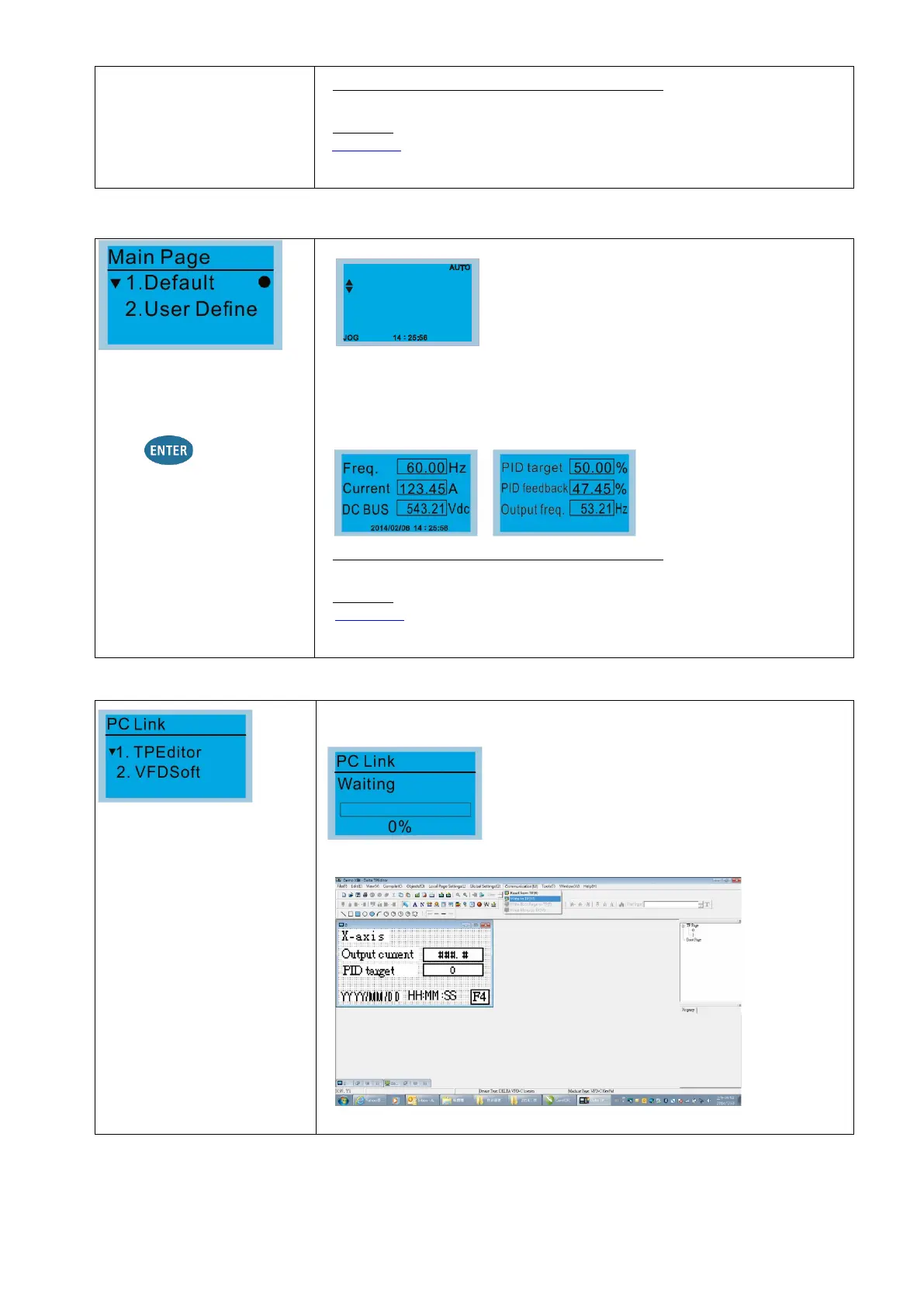

14. Main Page
Default screen and editable
screen are available upon
selection.
Press to select.
1. Default page
F
H
u
60.00Hz
540.0Vdc
0.00Hz
F 60.00Hz >>> H >>> A >>> U (options rotate)
2. User Define: an optional accessory is required (TPEditor & USB / RS-485
Communication Interface-IFD6530) to design your own main screen.
If the editor accessory is not installed, the User Define option displays a
blank screen.
USB/RS-485 Communication Interface-IFD6530
Refer to Chapter 6 Optional Accessories for more details.
TPEditor
Download TPEditor software at Delta website. Select TPEditor version
1.60 or above. Refer to the instructions for TPEditor in <15. PC Link> in
this section.
15. PC Link
1. TPEditor: This function enables you to connect the keypad to a computer
then to download and edit user-defined screens.
Click ENTER to go to <Waiting to connect to PC>
In TPEditor, from the Communication menu, then choose “Write to HMI”
In the Confirm message box, click YES.
