10-3-2 Encoder Settings
Speed feedback card selections: See Chapter 7 Speed Feedback Card Selection. Delta provides
three types of PG cards, including EMED-PGABD-2, EMED-PGHSD-3, and EMED-PGHSD-4.

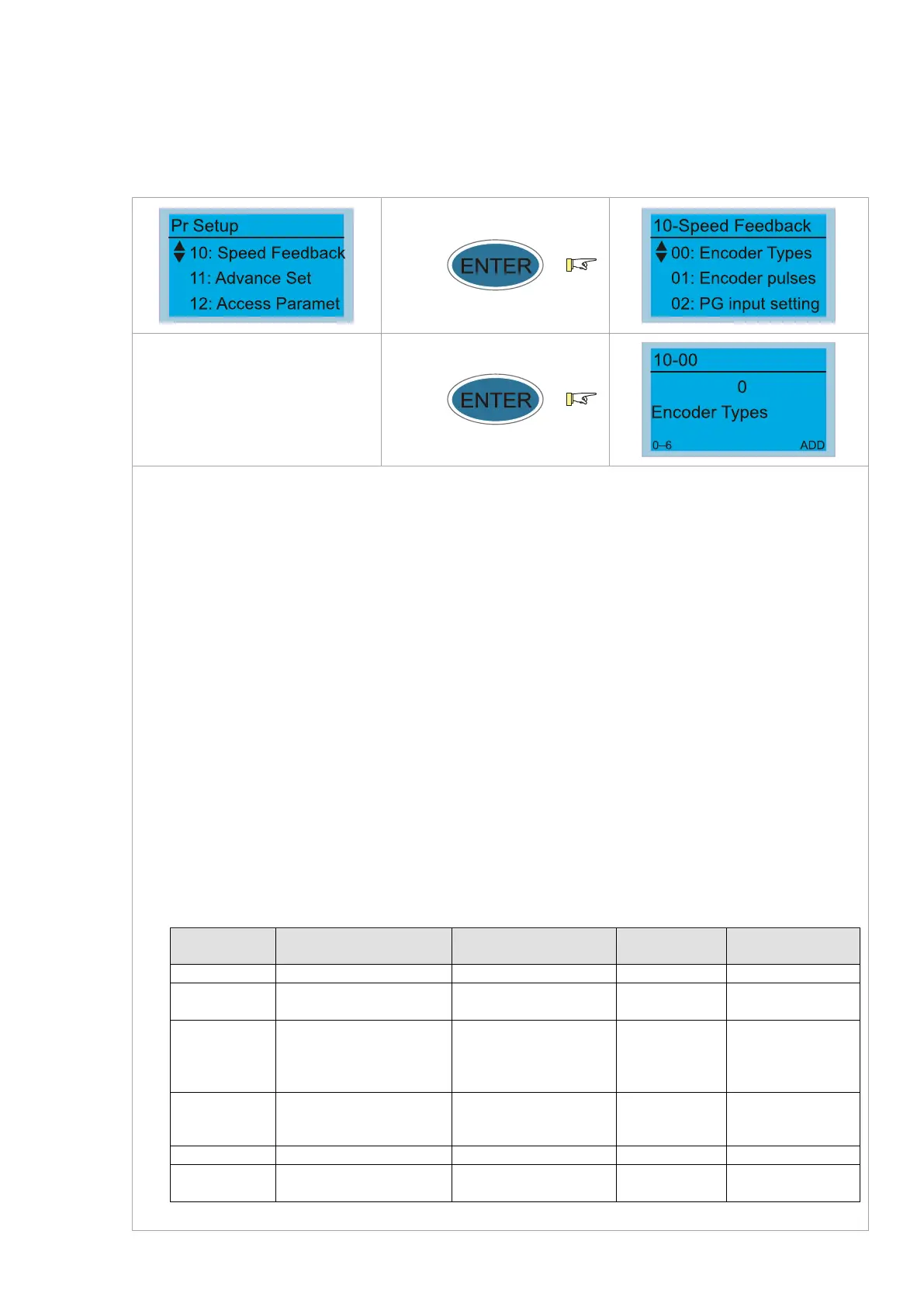

Pr.10-00 Selection of Encoder
Press
Press
 When you set Pr.10-02 to 3, 4 or 5, you can set Pr.10-00 only to 0, 1 or 2, and you cannot
use 3, 4, 5 and 6.
 When you set Pr.10-
00 to 3, the encoder has one sine and one cosine signal for each
revolution. The signal must be: 0.75–1.2 Vpp for the amplitude with phase angle 90°±5 elec.
(E.g. ERN 1185 ERN 1387)
 When you set Pr.10-
00 to 4 or 6, wait for two seconds after applying the power before
executing the RUN command.
 When you set Pr.10-00 to 5, you must set Pr.08-09 to 360.
 Detection of the magnetic pole:
(1) 1 or 5: The AC motor drive outputs a short circuit to detect the position of the magnetic
pole. At this moment, the motor generates a little noise.
(2) 2: The AC motor drive detects the position of the magnetic pole with the UVW encoder
signal.
(3) 3: The AC motor drive detects the position of the magnetic pole with the sine encoder
signal.
(4) 4 or 6: The AC motor drive detects the position of the magnetic pole with the
communication encoder signal.
 The table below shows the correspondence among encoder, PG card and auto-tuning
PG Signal Type
Applicable PG Card
x=2, 3,…
Pr.08-00=1 Pr.08-00=3
Pr.10-00=2 A, B, Z+U, V, W EMED-PGABD- x
1
Rolling test*
1
Pr.10-00=3
SIN/COS + Sinusoidal
(e.g. ERN1185,
ERN1387)
EMED-PGHSD-x
Rolling
test*
1
Rolling test*
1
Pr.11-00 Bit9=1:
1
Pr.10-00=4
(e.g. ECN1313,
EMED-PGSD-x
Dynamic
test*
1
Static test*
1
Pr.10-00=6
SIN/COS + Hiperface
(e.g. SRS50/60)
EMED-PGHSD-x
1
Static test*
1
*
1
Static: Brake engaged, no motor running. Dynamic: Brake released, motor rotates less than one revolution.
Rolling: Brake released, motor rotates more than one revolution.
