Delta VFD055ED43S User Manual

Chapter 10 Auto-tuning Process | VFD-ED
10-18

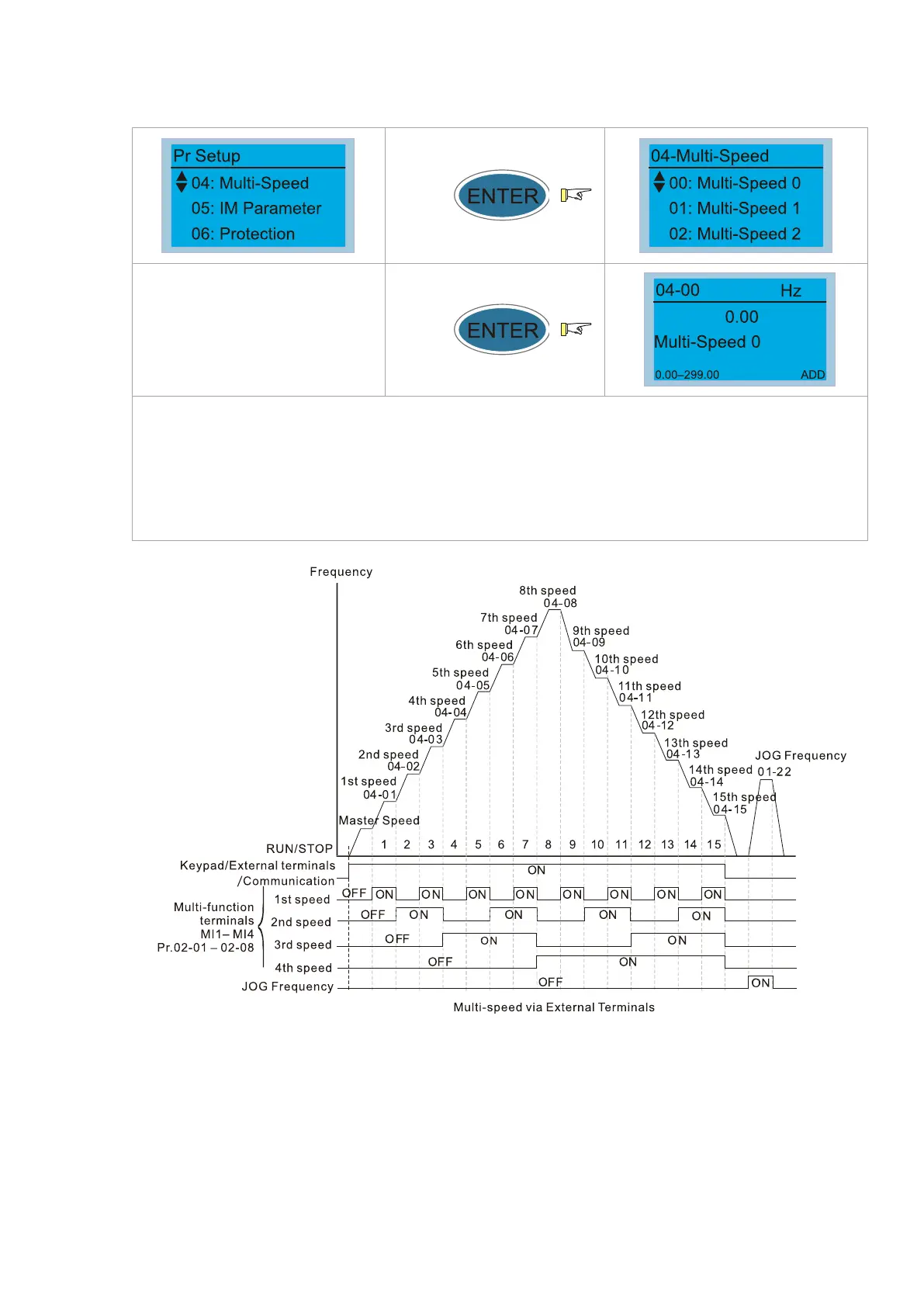

10-3-4 Multi-step Speed Settings
Pr.04-00–Pr.04-15 Multi-step Speed Setting
Press
Press
 The multi-function input terminals (refer to Pr.02-01–Pr.02-08) select one of the AC motor
drive multi-step speeds (including the master frequency, in total 16 speeds). Pr.04-00–Pr.04-
15 determine the speeds (frequencies) as shown above.
 When Pr.00-14 = 1, the master frequency is Pr.01-00.
 When Pr.00-14 = 3, the master frequency is Pr.04-00.
