Delta VFD055ED43S User Manual

12 Descriptions of Parameter Settings | VFD-ED
12-01-2

Fourth Output Voltage Setting
Control Mode VF VFPG SVC Default: 5.0/10.0
Settings 230V models 0.1–255.0 V
460V models 0.1–510.0 V
 You usually set the V/F curve according to the motor’s allowable loading characteristics. Pay special
attention to the motor’s heat dissipation, dynamic balance, and bearing lubrication when the loading
characteristics exceed the loading limit of the motor.
 The frequency setting of V/F curve must be set according to this rule: Pr.01-01 ≥ Pr.01-03 ≥ Pr.01-05 ≥
Pr.01-07. There is no limit for the voltage setting, but a high voltage at low frequency may cause motor
burnout, overheating, and trigger stall prevention or over-current protection. Use l
 ow voltages at low frequencies to prevent motor damage or drive malfunction.

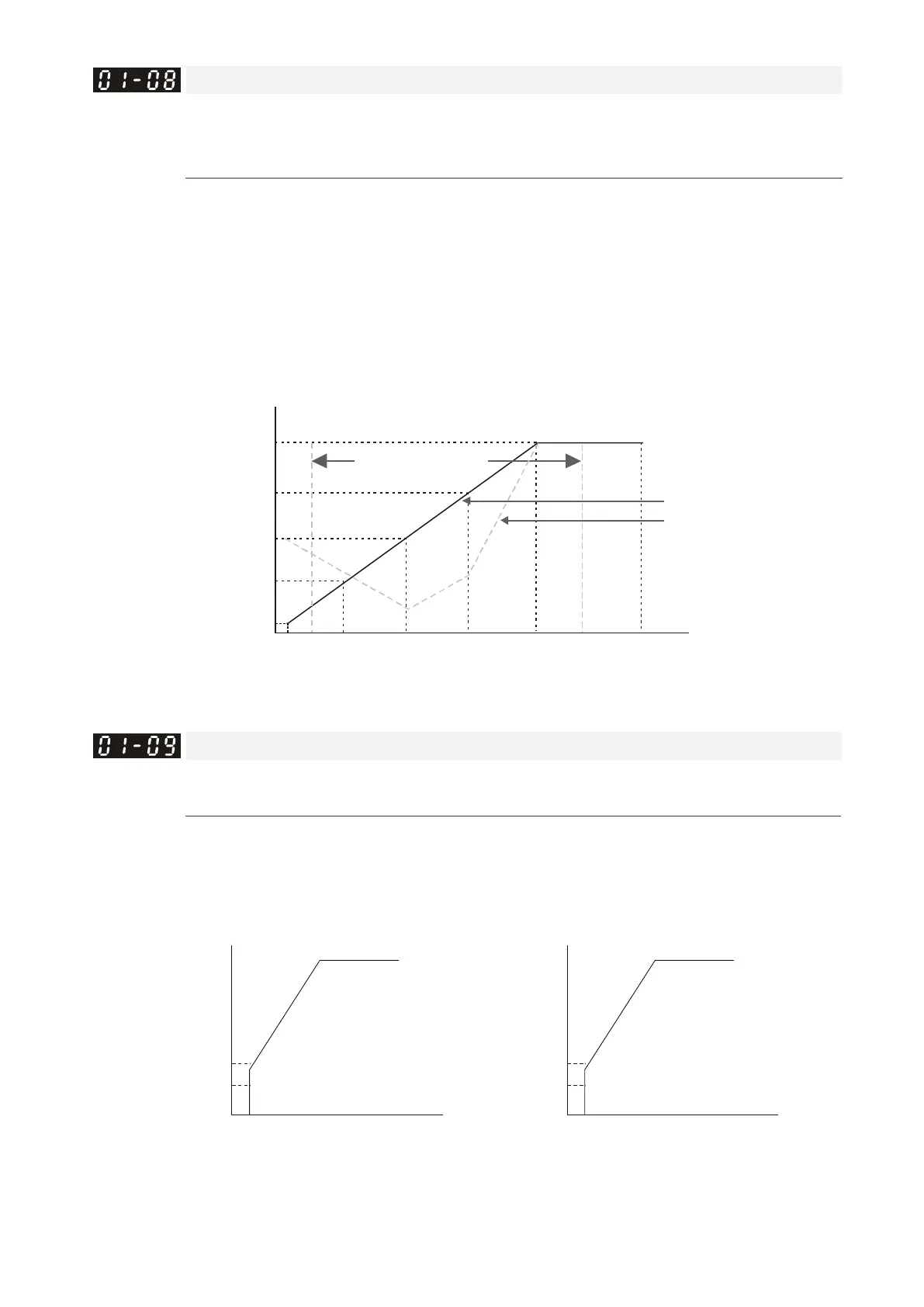

01-05 01-03 01-01
01-
06
01-04
01-02
01-0001-07
01-08
01-09
01-11
01-10
1st Output
Voltage Setting 1
Output Frequency
Lower Limit
Frequency output
ranges limitation
Regular V/f Curve
Special V/f Curve
Voltage
4th Freq.
Start Freq.
3rd Freq.
2nd Freq.
1st Freq.
Maximum Output
Frequency
V/f Curve
2nd Output
Voltage Setting 1
3rd Output
Voltage Setting 1
4th Output
Voltage Setting 1
Output Frequency
Upper Limit
Frequency
Starting Frequency
Control Mode VF VFPG SVC FOCPG Default: 0.50
Settings 0.00–299.00 Hz
 Determines the starting frequency. When the starting frequency (Pr.01-09) is larger than the output
frequency (Pr.01-11), the frequency output starts when the starting frequency (Pr.01-09) reaches the F
command.
When min. output frequency > start frequency
When start frequency > min. output frequency
min. output
frequency
start frequency
start frequency
min. output
frequency
