12 Descriptions of Parameter Settings | VFD-ED
12-02-6
Settings Functions Descriptions
57
Brake torque test action signal Executes brake torque test when receiving signals.
59
AFE fault Use with AFE series product

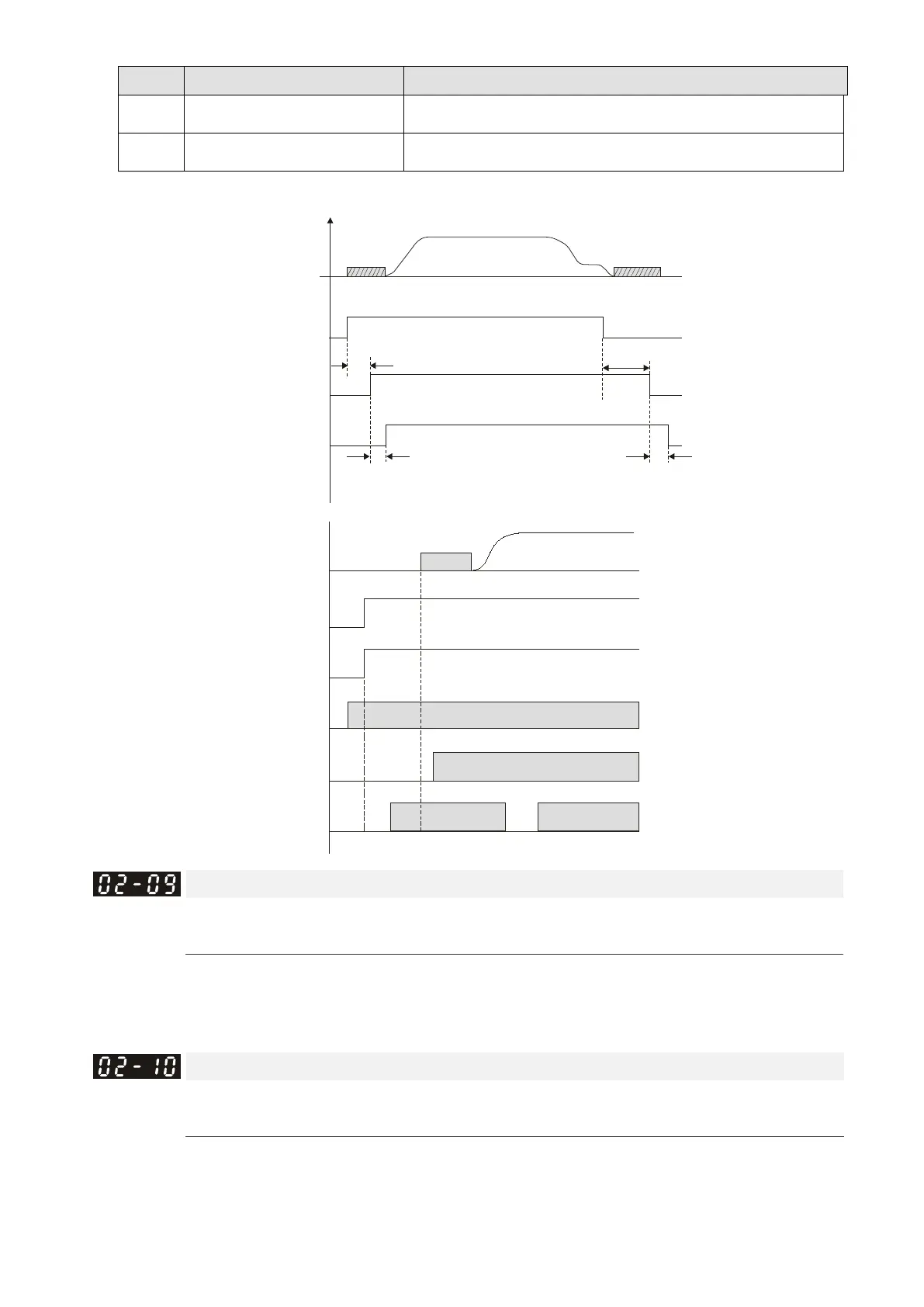

Frequency
Output
Multi-function
I
nput Terminal
D=41
Frequency
T1<02-36
07-03
07-04
02-31
02-32
T2<02-35
Operation
Command
(FWD/REV)
Time
Multi-function
Output Terminal
D=15
Ze ro speed
Outp ut
fr eq ue ncy
Operation
command
Magnetic
contactor
Multi-function
input terminal
MI41
Multi-function
input terminal
MI41
Multi-function
input terminal
MI41
Detection time for contactor (02-36)
Status 1
Status 2
Status 3

Digital Input Response Time
Control Mode VF VFPG SVC FOCPG FOCPM Default: 0.005
Settings 0.001–30.000 sec.
 Defines the digital input terminal signal delay and confirmation. The delay time prevents interference that
can cause errors (except for the counter input) in the digital terminal input (FWD, REV and MI1–8).
Increasing the setting for this parameter can reduce the errors, but it delays the response time.

Digital Input Operation Direction
Control Mode VF VFPG SVC FOCPG FOCPM Default: 0
Settings 0–65535
 Sets the input signal level and it is not affected by the SINK/SOURCE status.
 Bit 0 is for FWD terminal, bit 1 is for REV terminal and bits 2–9 are for MI1 to MI8.
