04 Multi-step Speed Parameters
: You can set this parameter during operation
Zero Step Speed Frequency
1st Step Speed Frequency
2nd Step Speed Frequency
3rd Step Speed Frequency
4th Step Speed Frequency
5th Step Speed Frequency
6th Step Speed Frequency
7th Step Speed Frequency
8th Step Speed Frequency
9th Step Speed Frequency
10th Step Speed Frequency
11th Step Speed Frequency
12th Step Speed Frequency
13th Step Speed Frequency
14th Step Speed Frequency
15th Step Speed Frequency
Control Mode
VF VFPG SVC FOCPG
FOCPM Default: 0.00
Settings 0.00–299.00 Hz

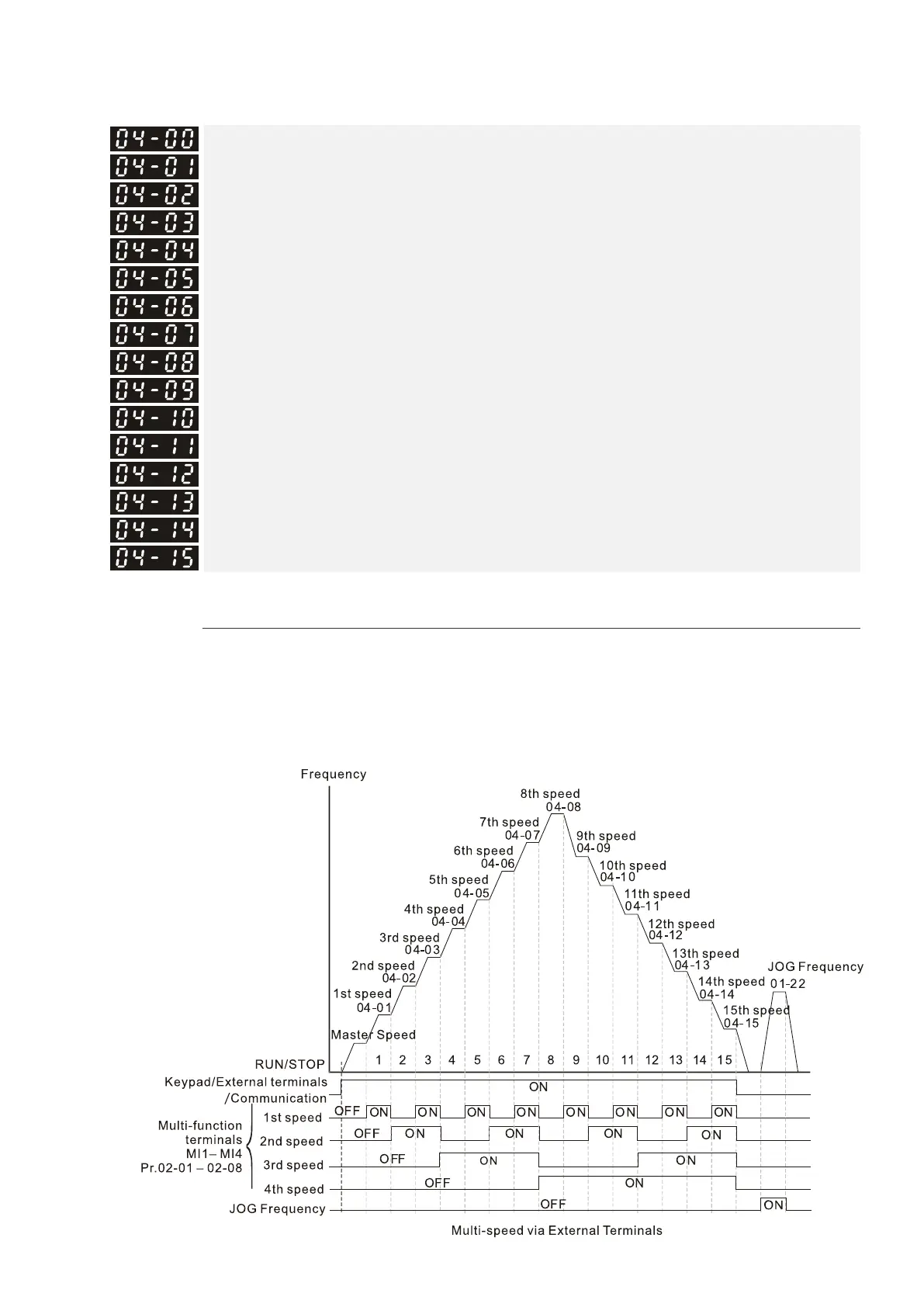

The multi-function input terminals (refer to Pr.02-01–Pr.02-08) select one of the AC motor drive multi-step
speeds (including the master frequency, in total 16 speeds). Pr.04-00–Pr.04-15 determine the speeds
(frequencies) as shown above.
When Pr.00-14 = 1, the master frequency is Pr.01-00.
When Pr.00-14 = 3, the master frequency is Pr.04-00.
