Chapter 3 Wiring | VFD-ED

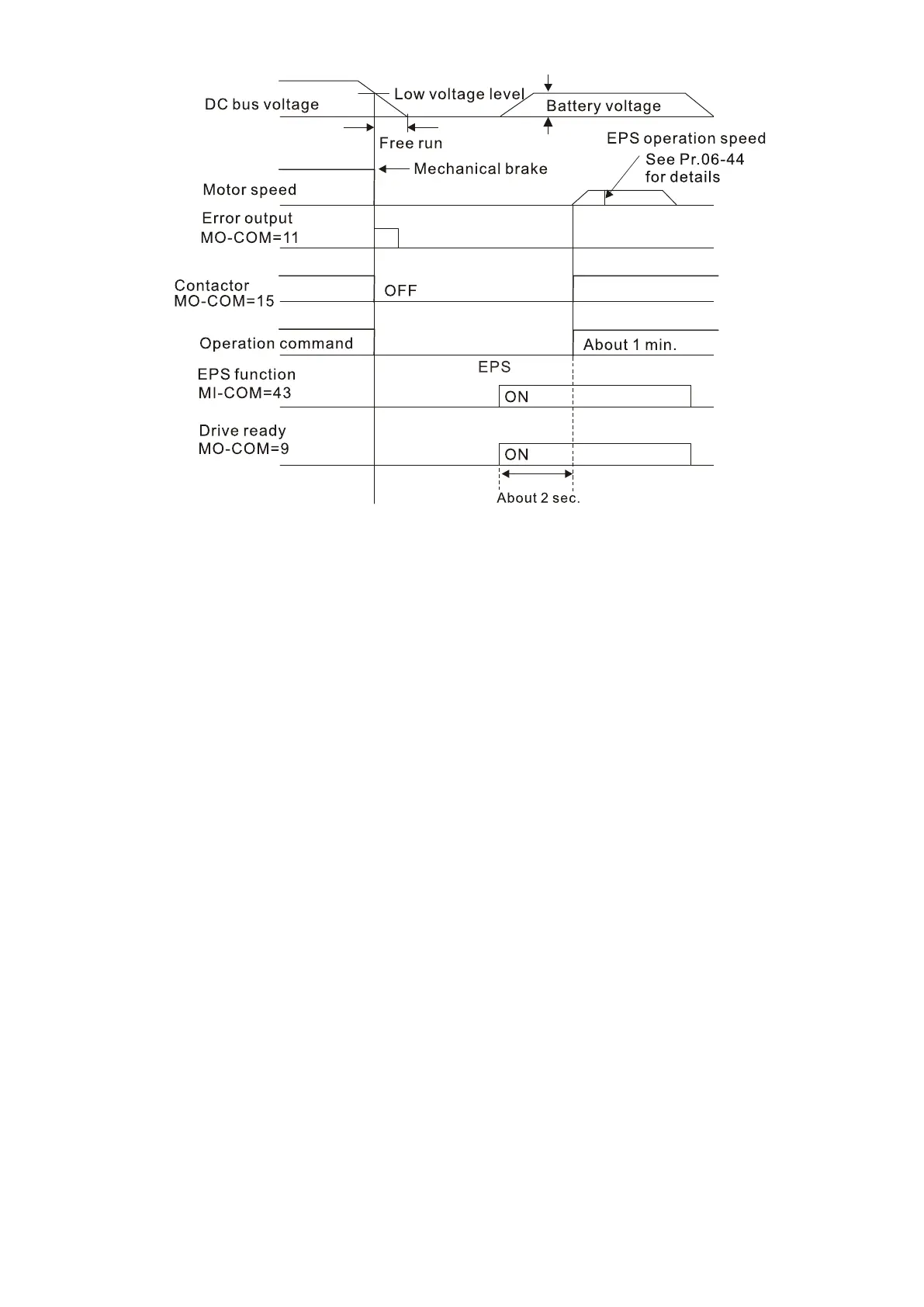

Figure 3-12
NOTE:
When EPS is enabled (MI=43):
Do NOT make the fan run in case voltage drops during EPS.
Parameter settings cannot be saved and will be lost after cycling power.
Set the running speed through Pr.06-44.
Functions of low voltage and phase loss protection are unavailable.
Set the DC bus voltage through Pr.06-29.
