Delta VFD055ED43S User Manual

12 Descriptions of Parameter Settings | VFD-ED
12-10-7


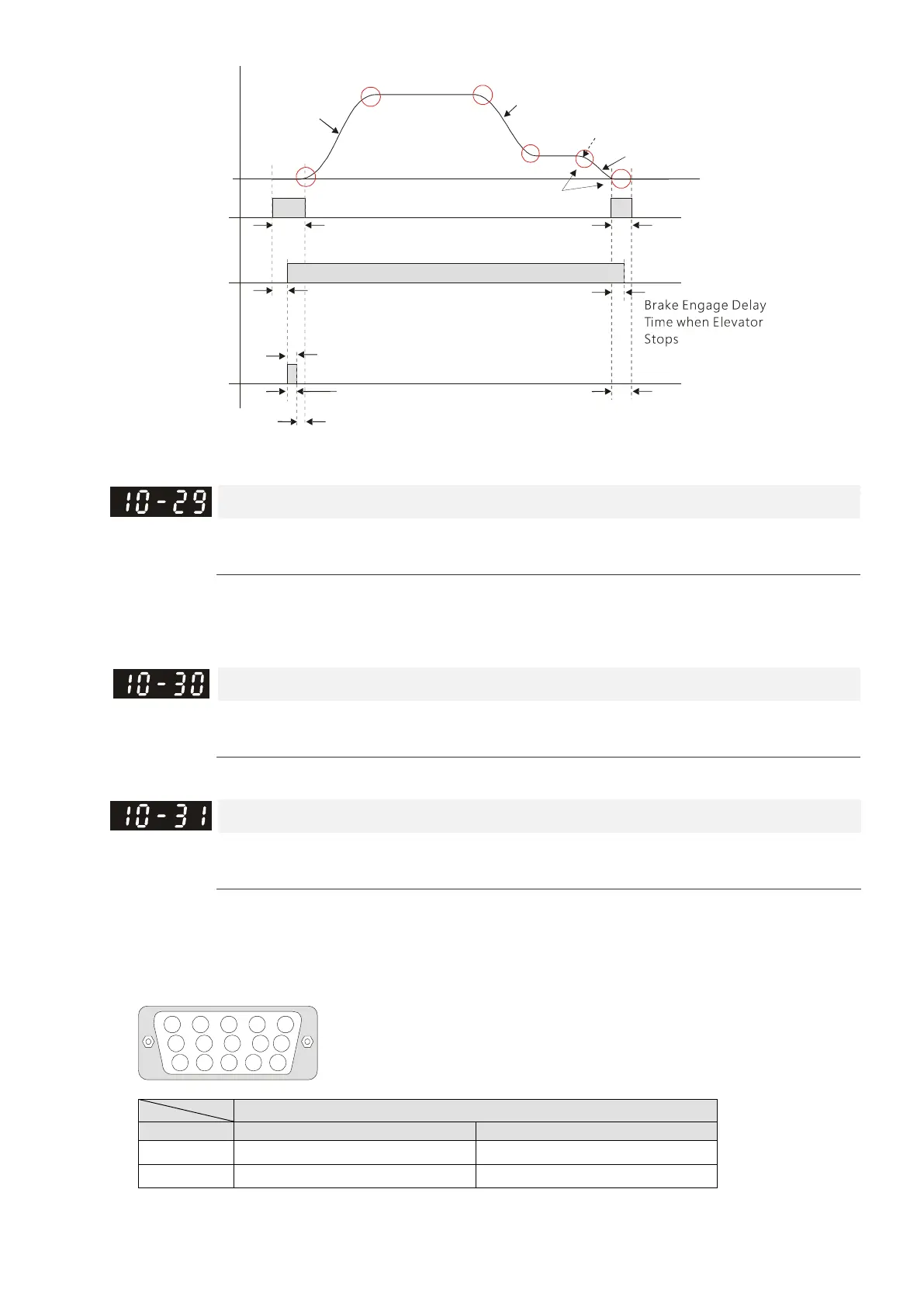

PG Card Frequency Division Output
Control Mode VFPG FOCPG FOCPM
Default: 0
Settings 0–31
 Setting to 0 is the same as setting to 1:
0: No frequency division
1: Frequency division by 1 (remains the same as the original frequency)

PG Card Frequency Division Output Type
Control Mode VFPG FOCPG FOCPM
Default: 0000h
Settings 0000h–0008h
 See Chapter 7 for more information about PG cards.

PG Card C+/C-
Control Mode VFPG FOCPG FOCPM
Default: 0000h
Settings 0000h–0001h
 When using a Heidenhain ERN1387 encoder, use Pr.10-31 to adjust the definition of the Delta PG card
EMED-PGHSD-3’s terminal 10 and terminal 11 (see the table below). Refer to p.7-17 for detailed terminal
descriptions.
 Delta PG card: EMED-PGHSD-3 (D-sub Terminal #)
5
4
3
2
1
10 9 8 7
6
15
14
13 12
11
Heidenhain ERN1387
Terminal #
Pr.10-31=0000h
Pr.10-31=0001h
10
C-
C+
11
C+
C-
 After connecting Delta PG card EMED-PGHSD-4 according to the descriptions in Section 7-4, you must
set Pr.10-31=0001h.
01-24=S1
01-25=S2
01-26=S3
0
1
-
2
7
=
S
4
01-30=S5
01-29 S5 Switch Frequency
01-12
Accel. Time 1
Pr01-13 Decel. Time 1
01-31 Decel. Time w/o RUN command
MO = 12
Release the
Mechanical Brake
Output Frequency
DC Brake
07-03
DC Brake Activation Time
07-04
02-30
02-29
Brake Release Delay
Time when Elevator Starts
10-22
Zero speed Position Holding Time
10-25/ 10-26
Elevator Leveling PI
11-00 bit 7=1
10-27/28
Elevator Starts Zero Speed PI
10-11/ 10-12
Auto Speed Regulation Control of
Zero Speed PI
DC Brake Stopping Time
Zero-Speed
Position Control
