Chapter 6 Optional Accessories | VFD-ED
6-12

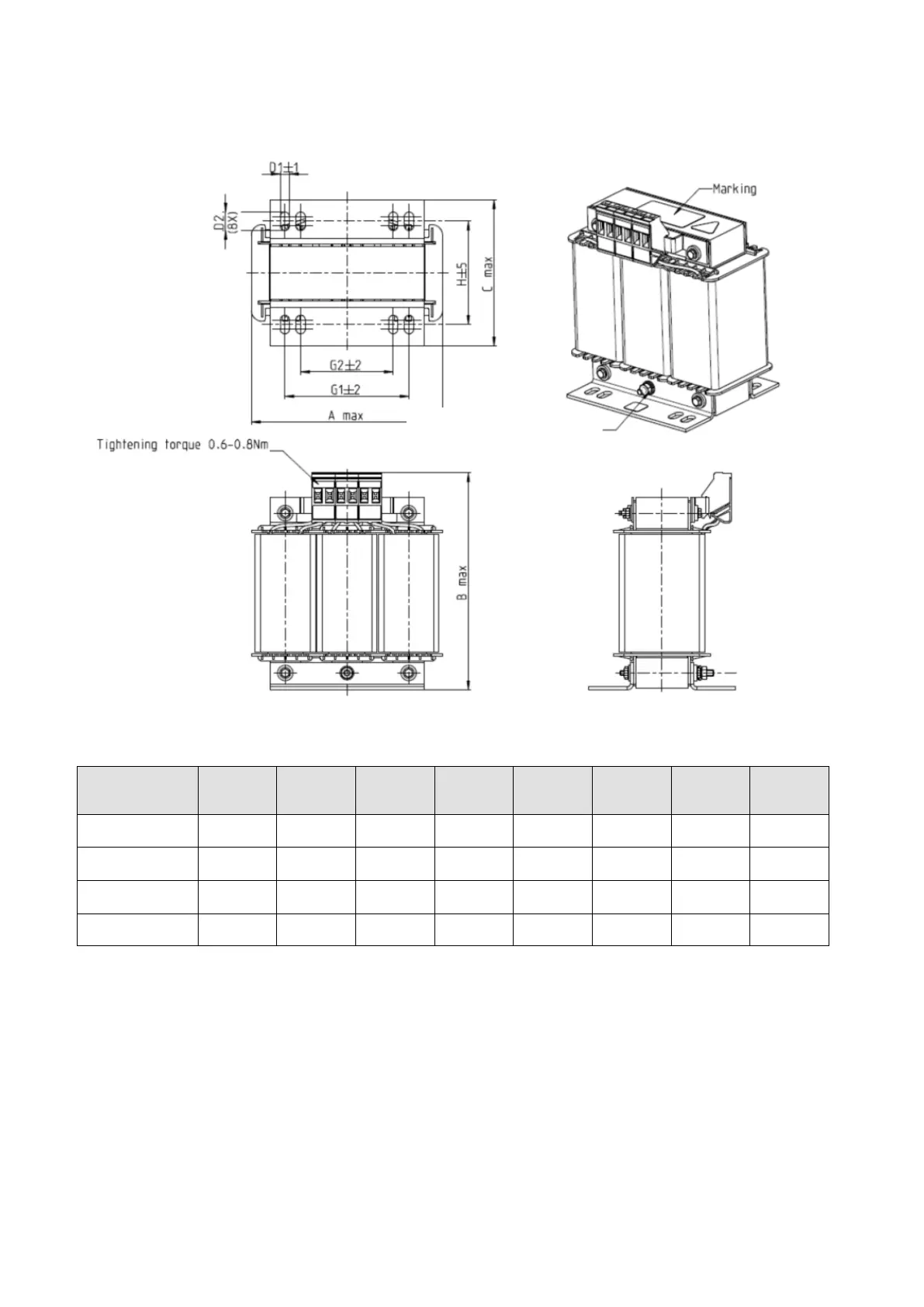

Reactor Dimension
AC input reactor dimension and specifications:
Figure 6-7
Unit: mm
Input Reactors
Delta Part #
A B C D1*D2 E G1 G2 PE D
DR005A0254 100 115 65 6*9 45 60 40 M4
DR008A0159 100 115 65 6*9 45 60 40 M4
DR011A0115 130 135 95 6*12 60 80.5 60 M4
DR017AP746 130 135 100 6*12 65 80.5 60 M4
Table 6-11
Tightening torque0.60.8 N
m
PE MD
Tightening torque: F Nm
